NCP93L-BEPRKV (2008)
Toyota Yaris
(0508- )
SLIDE SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 72702-52030 | ||||
| 78899-48010 | ||||
| 90167-40044 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0508- )
SLIDE SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 72702-52030 | ||||
| 78899-48010 | ||||
| 90167-40044 | ||||
| 90464-00165 | ||||
| 90949-01C02 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| 94151-20801 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0808- )GCC
FIX SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 72702-52030 | ||||
| 90105-10535 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90949-01C02 | ||||
| 93560-54014 | ||||
(0508- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(0601- )ARL,GCC

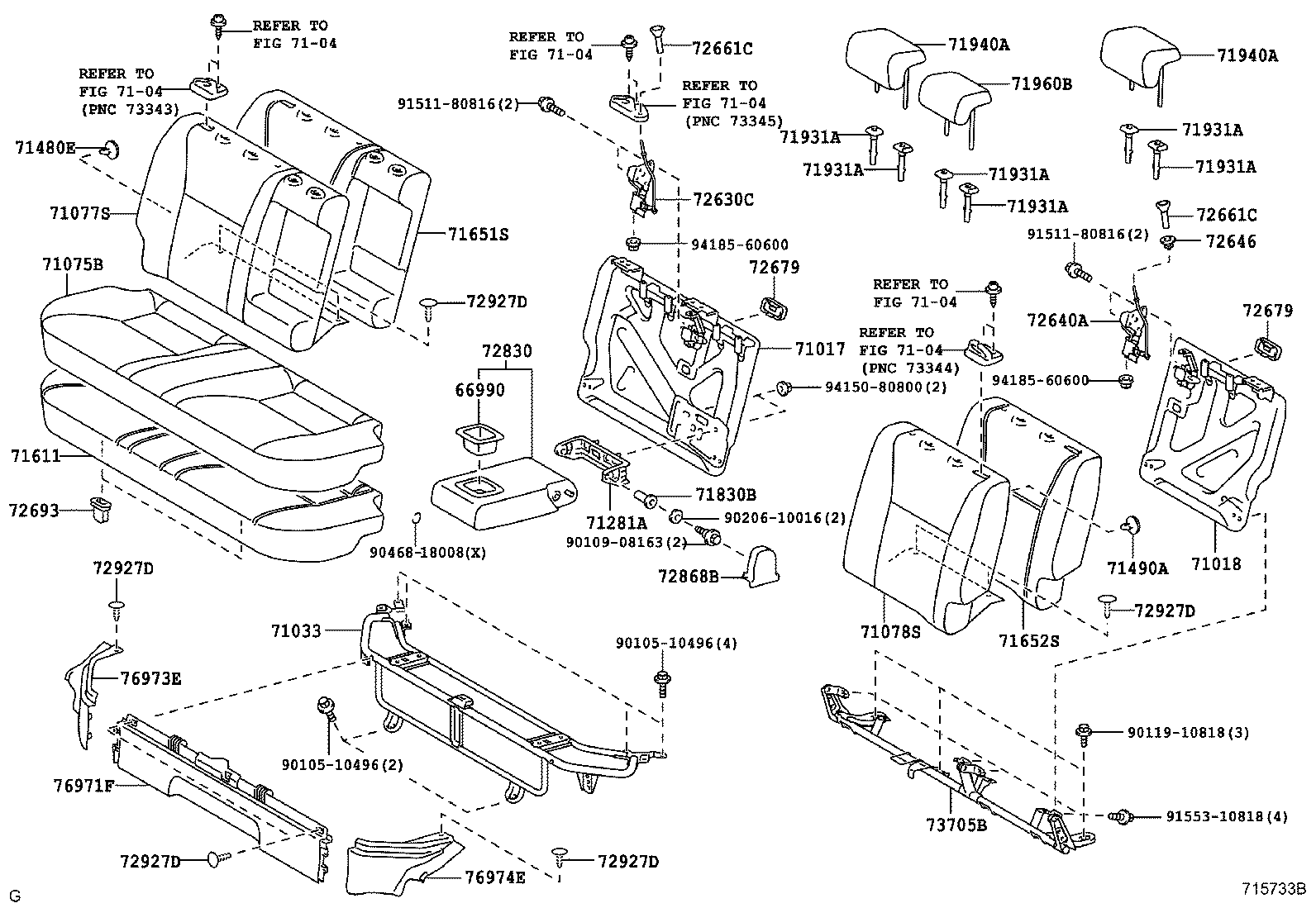

6:4 FOLD TYPE(FIXED SEAT COVER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66991-52030B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 66991-52030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 66991-52030B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 66991-52030B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 66991-52030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 66991-52030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52480 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 71017-52480 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 71017-52480 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52370 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 71018-52370 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
1 | ||
| 71018-52370 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-52010 |
NCP9# |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-52030 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 71281-52030 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 71281-52030 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
7 | ||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
7 | ||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
7 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
7 | ||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
7 | ||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
7 | ||
| 71601A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52D60B0 |
NCP9# DARK GRAY,TRIM1# |
1 | ||
| 71601-52D60E1 |
NCP9# GREGE,TRIM4# |
1 | ||
| 71601-52B70B1 |
NCP9# DK.GRAY,TRIM1# |
1 | ||
| 71601-52B70E1 |
NCP9# GREGE,TRIM4# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52F20B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DARK GRAY,TRIM1# |
1 | ||
| 71603-52F20E4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 71603-52N00E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 71603-52N00E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 71603-52N00B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 71603-52N00B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71603-52N00B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71603-52N00B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 71603-52N00E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 71603-52N00E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 71603-52N01B2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71603-52N01E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 71603-52N01B2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 71603-52N01E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52D90B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DARK GRAY,TRIM1# |
1 | ||
| 71604-52D90E4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 71604-52K30E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 71604-52K30E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 71604-52K30B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 71604-52K30B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71604-52K30B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71604-52K30B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 71604-52K30E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 71604-52K31B2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71604-52K31E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 71604-52K30E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 71604-52K31B2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 71604-52K31E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 71830B - BUSH(FOR REAR SEAT ARMREST) | ||||
| 90386-10033 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
2 | ||
| 90386-10033 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
2 | ||
| 90386-10033 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52350E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52350B1 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71940-52730E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52730B2 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52350E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52350B1 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71940-52730E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52730B2 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52240E2 |
NCP9#..ARL,GCC GREGE,TRIM4# |
1 | ||
| 71960-52240B1 |
NCP9#..ARL,GCC DK.GRAY,TRIM1# |
1 | ||
| 71960-52370B2 |
NCP9#..ARL,GCC DK.GRAY,TRIM1# |
1 | ||
| 71960-52370E2 |
NCP9#..ARL,GCC GREGE,TRIM4# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52130 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 72630-52130 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 72630-52130 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 72640-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
1 | ||
| 72640-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010E3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72646-33010B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72646-33010B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72646-33010E3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72646-33010B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 72646-33010E3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
2 | ||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
2 | ||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72679-20030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72679-20030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
2 | ||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
2 | ||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72679-20030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72679-20030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP9# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-52090B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72830-52090E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72830-52140B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 72830-52140B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72830-52140E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 72830-52140E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72830-52141B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72830-52141B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 72830-52141E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 72830-52141E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-52040B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72868-52040E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72868-52040E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72868-52040E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 72868-52040B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 72868-52040B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-52110 |
NCP9#..GCC,GEN |
1 | ||
| 73705-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 73705-52110 |
NCP9#..GCC,GEN |
1 | ||
| 73705-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 76971F - COVER, REAR UNDER | ||||
| 76971-52010B0 |
NCP9# DK.GRAY,TRIM1#,4# |
1 | ||
| 76973E - COVER, REAR UNDER SIDE, RH | ||||
| 76973-52020B0 |
NCP9# DK.GRAY,TRIM1#,4# |
1 | ||
| 76974E - COVER, REAR UNDER SIDE, LH | ||||
| 76974-52020B0 |
NCP9# DK.GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90105-10496 | ||||
| 90109-08163 | ||||
| 90119-10818 | ||||
| 90206-10016 | ||||
| 91511-80816 | ||||
| 91553-10818 | ||||
| 94150-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0601- )
FIXED REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-52010 |
NCP9# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-33010C0 |
NCP9#..GCC,GEN BLACK |
3 | ||
| 71398-33010C0 |
NCP9#..GCC,GEN BLACK |
3 | ||
| 71398-52020 |
NCP9#..GCC,GEN |
3 | ||
| 71601A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52D60B0 |
NCP9# DARK GRAY,TRIM1# |
1 | ||
| 71601-52D60E1 |
NCP9# GREGE,TRIM4# |
1 | ||
| 71601-52B70B1 |
NCP9# DK.GRAY,TRIM1# |
1 | ||
| 71601-52B70E1 |
NCP9# GREGE,TRIM4# |
1 | ||
| 71603C - PAD SUB-ASSY, REAR SEAT BACK W/COVER | ||||
| 71603-52E50B0 |
NCP9#..GCC DARK GRAY,TRIM1# |
1 | ||
| 71603-52E50E1 |
NCP9#..GCC GREGE,TRIM4# |
1 | ||
| 71603-52M30E0 |
NCP9#..GCC GREGE,TRIM4# |
1 | ||
| 71603-52M30B0 |
NCP9#..GCC DK.GRAY,TRIM1# |
1 | ||
| 71603-52M31B0 |
NCP9#..GCC DK.GRAY,TRIM1# |
1 | ||
| 71603-52M31E0 |
NCP9#..GCC GREGE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52350E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52350B1 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71940-52730E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52730B2 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52350E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52350B1 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71940-52730E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52730B2 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52240E2 |
NCP9#..ARL,GCC GREGE,TRIM4# |
1 | ||
| 71960-52240B1 |
NCP9#..ARL,GCC DK.GRAY,TRIM1# |
1 | ||
| 71960-52370B2 |
NCP9#..ARL,GCC DK.GRAY,TRIM1# |
1 | ||
| 71960-52370E2 |
NCP9#..ARL,GCC GREGE,TRIM4# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP9# |
2 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-52110 |
NCP9#..GCC,GEN |
1 | ||
| 73705-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 73705-52110 |
NCP9#..GCC,GEN |
1 | ||
| 73705-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 76971F - COVER, REAR UNDER | ||||
| 76971-52010B0 |
NCP9# DK.GRAY,TRIM1#,4# |
1 | ||
| 76973E - COVER, REAR UNDER SIDE, RH | ||||
| 76973-52020B0 |
NCP9# DK.GRAY,TRIM1#,4# |
1 | ||
| 76974E - COVER, REAR UNDER SIDE, LH | ||||
| 76974-52020B0 |
NCP9# DK.GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90105-10496 | ||||
| 90119-08C37 | ||||
| 90119-10818 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0808- )ARL,GCC
6:4 FOLD TYPE(REMOVABLE SEAT COVER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66991-52030B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 66991-52030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 66991-52030B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 66991-52030B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 66991-52030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 66991-52030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52480 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 71017-52480 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 71017-52480 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52370 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 71018-52370 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
1 | ||
| 71018-52370 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-52010 |
NCP9# |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-52030 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 71281-52030 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 71281-52030 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
7 | ||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
7 | ||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
7 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
7 | ||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
7 | ||
| 90467-09050 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
7 | ||
| 71830B - BUSH(FOR REAR SEAT ARMREST) | ||||
| 90386-10033 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
2 | ||
| 90386-10033 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
2 | ||
| 90386-10033 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W(BUTTON),GREGE,TRIM4# |
3 | ||
| 71931-42020B4 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020E1 |
NCP9#..ARL,GCC W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52350E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52350B1 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71940-52730E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52730B2 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52350E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52350B1 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71940-52730E2 |
NCP9# GREGE,TRIM4# |
2 | ||
| 71940-52730B2 |
NCP9# DK.GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52240E2 |
NCP9#..ARL,GCC GREGE,TRIM4# |
1 | ||
| 71960-52240B1 |
NCP9#..ARL,GCC DK.GRAY,TRIM1# |
1 | ||
| 71960-52370B2 |
NCP9#..ARL,GCC DK.GRAY,TRIM1# |
1 | ||
| 71960-52370E2 |
NCP9#..ARL,GCC GREGE,TRIM4# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52130 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 72630-52130 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 72630-52130 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 72640-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)) |
1 | ||
| 72640-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010E3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72646-33010B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72646-33010B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72646-33010E3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72646-33010B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 72646-33010E3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B3 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72661-32030E2 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
2 | ||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
2 | ||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72679-20030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72679-20030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
2 | ||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
2 | ||
| 72679-20030B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72679-20030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
2 | ||
| 72679-20030E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
NCP9# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-52090B1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72830-52090E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72830-52140B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 72830-52140B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72830-52140E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 72830-52140E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72830-52141B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72830-52141B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 72830-52141E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 72830-52141E1 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-52040B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72868-52040E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72868-52040E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4# |
1 | ||
| 72868-52040E0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),GREGE,TRIM4# |
1 | ||
| 72868-52040B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)&FRONT SEAT SLIDE-WITH(LIFTER(DRIVERONLY)),DK.GRAY,TRIM1# |
1 | ||
| 72868-52040B0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 72927D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-08186C0 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),BLACK |
8 | ||
| 90467-08186C0 |
NCP9#..GCC,GEN BLACK |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC,GEN DK.GRAY,TRIM1#,4# |
4 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1# |
8 | ||
| 90467-08186B4 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4# |
8 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-52110 |
NCP9#..GCC,GEN |
1 | ||
| 73705-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK) |
1 | ||
| 73705-52110 |
NCP9#..GCC,GEN |
1 | ||
| 73705-52120 |
NCP9#..GCC REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK) |
1 | ||
| 76971F - COVER, REAR UNDER | ||||
| 76971-52010B0 |
NCP9# DK.GRAY,TRIM1#,4# |
1 | ||
| 76973E - COVER, REAR UNDER SIDE, RH | ||||
| 76973-52020B0 |
NCP9# DK.GRAY,TRIM1#,4# |
1 | ||
| 76974E - COVER, REAR UNDER SIDE, LH | ||||
| 76974-52020B0 |
NCP9# DK.GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90105-10496 | ||||
| 90109-08163 | ||||
| 90119-10818 | ||||
| 90206-10016 | ||||
| 90468-18008 | ||||
| 91511-80816 | ||||
| 91553-10818 | ||||
| 94150-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
