NCP93L-BEPRKV (2008)

Toyota Yaris

Production Aug 2008 - Jul 2013
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

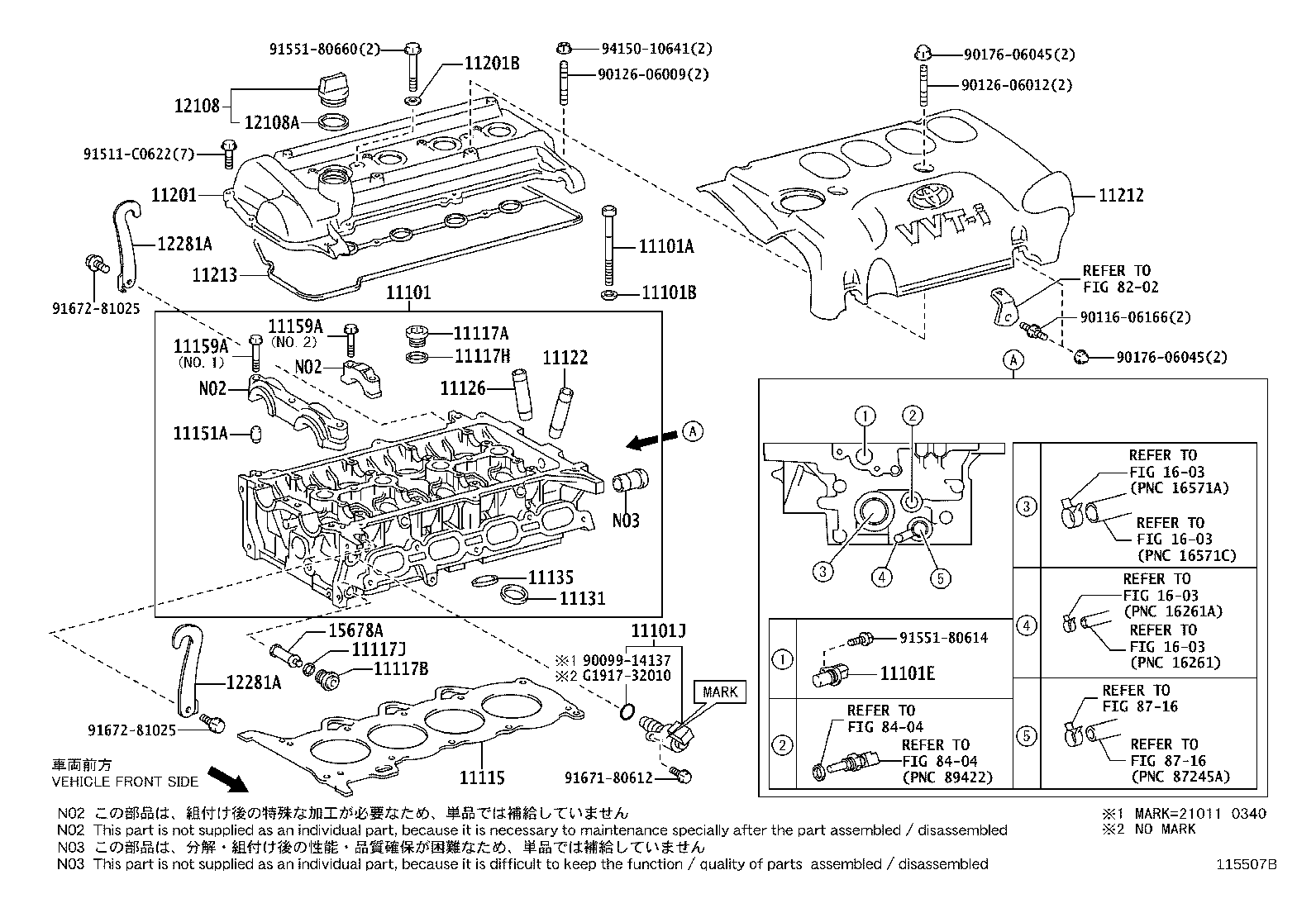

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101E 11101J 11115 11117A 11117B 11117H 11117J 11122 11126 11131 11135 11151A 11159A 11159A 11201 11201B 11212 11213 12108 12108A 12281A 12281A 15678A 1603 1603 1603 1603 8202 8404 8404 8716 8716 9009914137 9011606166 9012606009 9012606012 9017606045 9017606045 91511C0622 9155180614 9155180660 9167180612 9167281025 9167281025 9415010641 G191732010
Part # Description Qty Price
Common parts
90099-14137
90116-06166
90126-06009
90126-06012
90176-06045
91511-C0622
91551-80614
91551-80660
91671-80612
91672-81025
94150-10641
G1917-32010
Linked diagrams
1603
8202
8404
8716

(0601- )

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101E 11101J 11115 11117A 11117B 11117H 11117J 11122 11126 11131 11135 11151A 11159A 11159A 11201 11201B 11212 11213 12108 12108A 12281A 12281A 12281A 15678A 1603 1603 1603 1603 8202 8404 8404 8716 8716 9009914137 9011606166 9012606009 9012606012 9017606045 9017606045 9033916001 91511C0622 9155180614 9155180660 9155281022 9155281022 9167180612 9415010641 9613642501 G191732010
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-21033

1NZFE,2NZFE..NCP9#

 1
11101-21034

1NZFE,2NZFE..NCP9#

 1
11101-21033

1NZFE,2NZFE..NCP9#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02126

1NZFE,2NZFE..NCP9#

 10
90910-02170

1NZFE,2NZFE..NCP9#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-09024

1NZFE,2NZFE..NCP9#

 10
90201-09024

1NZFE,2NZFE..NCP9#

 10
11101E - SENSOR, CAM POSITION
90919-05024

1NZFE,2NZFE..NCP9#

 1
90919-05024

1NZFE,2NZFE..NCP9#

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-21011

1NZFE,2NZFE..NCP9#

 1
15330-21011

1NZFE,2NZFE..NCP9#

 1
11115 - GASKET, CYLINDER HEAD
11115-21080

1NZFE,2NZFE..NCP9#

 1
11115-21050

1NZFE,2NZFE..NCP9#

 1
11115-21050

1NZFE,2NZFE..NCP9#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-20002

1NZFE,2NZFE..NCP9#

 1
90341-20002

1NZFE,2NZFE..NCP9#

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-14013

1NZFE,2NZFE..NCP9#

 1
90341-14013

1NZFE,2NZFE..NCP9#

 1
11117H - GASKET(FOR WATER HOLE)
90430-20004

1NZFE,2NZFE..NCP9#

 1
90430-20004

1NZFE,2NZFE..NCP9#

 1
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-14009

1NZFE,2NZFE..NCP9#

 1
90430-14009

1NZFE,2NZFE..NCP9#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-21010

1NZFE,2NZFE..NCP9#

O/S 0.05

 8
11122-21010

1NZFE,2NZFE..NCP9#

STD

 8
11122-21010

1NZFE,2NZFE..NCP9#

STD

 8
11123-21010

1NZFE,2NZFE..NCP9#

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-21010

1NZFE,2NZFE..NCP9#

STD

 8
11123-21010

1NZFE,2NZFE..NCP9#

O/S 0.05

 8
11123-21010

1NZFE,2NZFE..NCP9#

O/S 0.05

 8
11122-21010

1NZFE,2NZFE..NCP9#

STD

 8
11131 - SEAT, INTAKE VALVE
11131-21020

1NZFE,2NZFE..NCP9#

STD

 8
11132-21020

1NZFE,2NZFE..NCP9#

O/S 0.03

 8
11135 - SEAT, EXHAUST VALVE
11135-21040

1NZFE,2NZFE..NCP9#

STD

 8
11136-21040

1NZFE,2NZFE..NCP9#

O/S 0.03

 8
11136-21040

1NZFE,2NZFE..NCP9#

O/S 0.03

 8
11135-21040

1NZFE,2NZFE..NCP9#

STD

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90250-06001

1NZFE,2NZFE..NCP9#

L=14,OD=6

 2
90250-06001

1NZFE,2NZFE..NCP9#

L=14,OD=6

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

1NZFE,2NZFE..NCP9#

NO.2

 16
90109-06080

1NZFE,2NZFE..NCP9#

NO.2

 16
90119-08A29

1NZFE,2NZFE..NCP9#

NO.1

 3
90119-08A29

1NZFE,2NZFE..NCP9#

NO.1

 3
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

1NZFE,2NZFE..NCP9#

NO.2

 16
90109-06080

1NZFE,2NZFE..NCP9#

NO.2

 16
90119-08A29

1NZFE,2NZFE..NCP9#

NO.1

 3
90119-08A29

1NZFE,2NZFE..NCP9#

NO.1

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-21050

1NZFE,2NZFE..NCP9#

 1
11201-21050

1NZFE,2NZFE..NCP9#

 1
11201-21051

1NZFE,2NZFE..NCP9#

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06013

1NZFE,2NZFE..NCP9#

 2
11212 - COVER, CYLINDER HEAD, NO.2
11212-21032

1NZFE,2NZFE..NCP9#

 1
11212-21060

1NZFE,2NZFE..NCP9#

 1
11212-21032

1NZFE,2NZFE..NCP9#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-21011

1NZFE,2NZFE..NCP9#

 1
11213-21011

1NZFE,2NZFE..NCP9#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-21010

1NZFE,2NZFE..NCP9#

 1
12180-21010

1NZFE,2NZFE..NCP9#

 1
12180-38010

1NZFE,2NZFE..NCP9#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1NZFE,2NZFE..NCP9#

 1
90430-37140

1NZFE,2NZFE..NCP9#

 1
90430-35001

1NZFE,2NZFE..NCP9#

 1
12281A - HANGER, ENGINE, NO.1
12281-21090

1NZFE,2NZFE..NCP9#

 2
12281-21010

1NZFE,2NZFE..NCP9#

 2
12281-21010

1NZFE,2NZFE..NCP9#

 2
12281A - HANGER, ENGINE, NO.1
12281-21090

1NZFE,2NZFE..NCP9#

 2
12281-21010

1NZFE,2NZFE..NCP9#

 2
12281-21010

1NZFE,2NZFE..NCP9#

 2
12281A - HANGER, ENGINE, NO.1
12281-21090

1NZFE,2NZFE..NCP9#

 2
12281-21010

1NZFE,2NZFE..NCP9#

 2
12281-21010

1NZFE,2NZFE..NCP9#

 2
15678A - FILTER, OIL CONTROL VALVE
15678-21010

1NZFE,2NZFE..NCP9#

 1
15678-21010

1NZFE,2NZFE..NCP9#

 1
Common parts
90099-14137
90116-06166
90126-06009
90126-06012
90176-06045
90339-16001
91511-C0622
91551-80614
91551-80660
91552-81022
91671-80612
94150-10641
96136-42501
G1917-32010
Linked diagrams
1603
8202
8404
8716
