NCP93L-BEMRK (2006)

Toyota Yaris

Production Jan 2006 - Aug 2008
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0808)LHD

Click highlighted areas on diagram

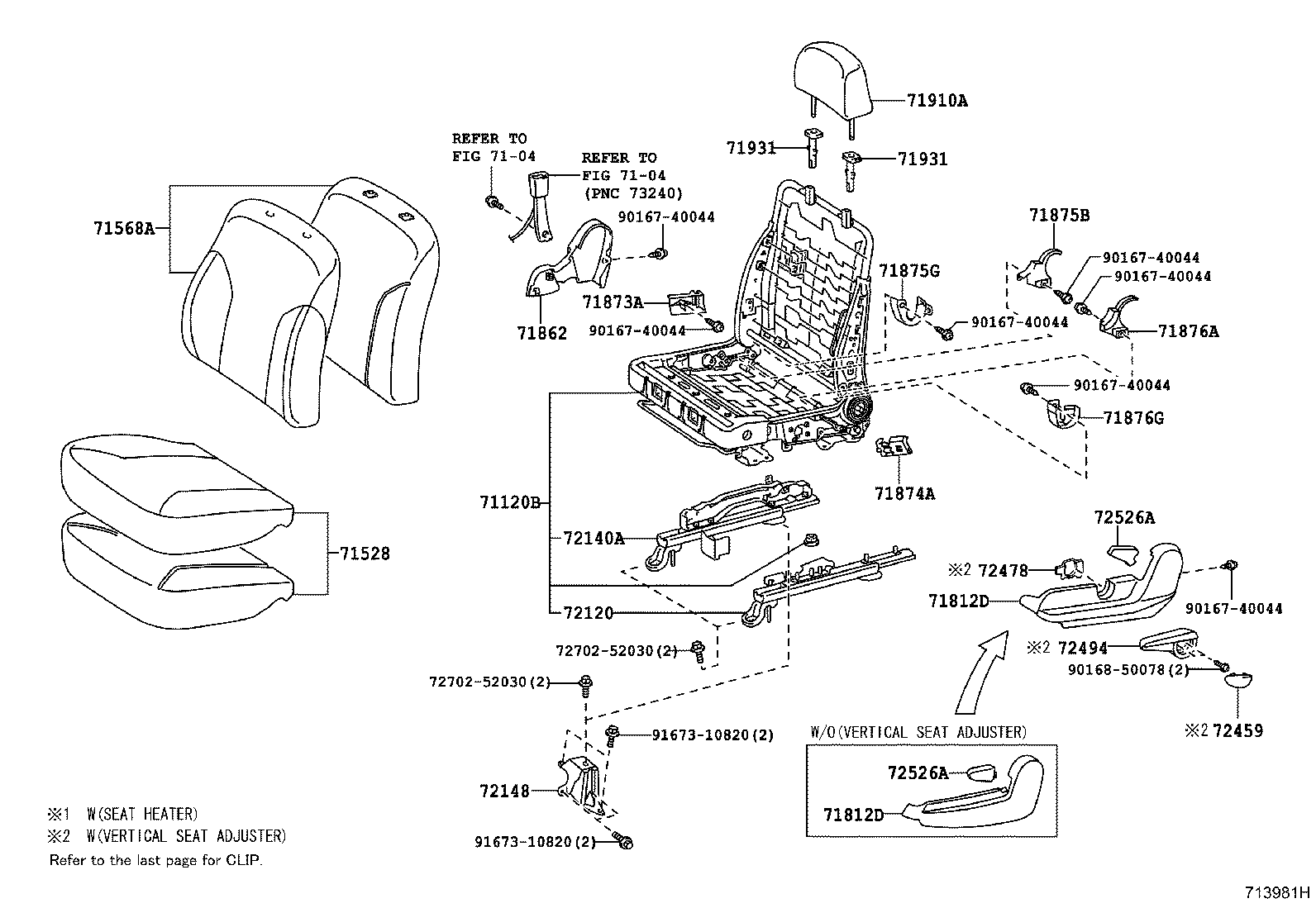

DRIVER SEAT

diagram 7104 7104 71120B 71528 71568A 71812D 71812D 71862 71873A 71874A 71875B 71875G 71876A 71876G 71910A 71931 71931 72120 72140A 72148 72459 72478 72494 72526A 72526A 7270252030 7270252030 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9167310820 9167310820
Part # Description Qty Price
Common parts
72702-52030
90167-40044
90168-50078
91673-10820
Linked diagrams
7104

(0508-0808)LHD

Click highlighted areas on diagram

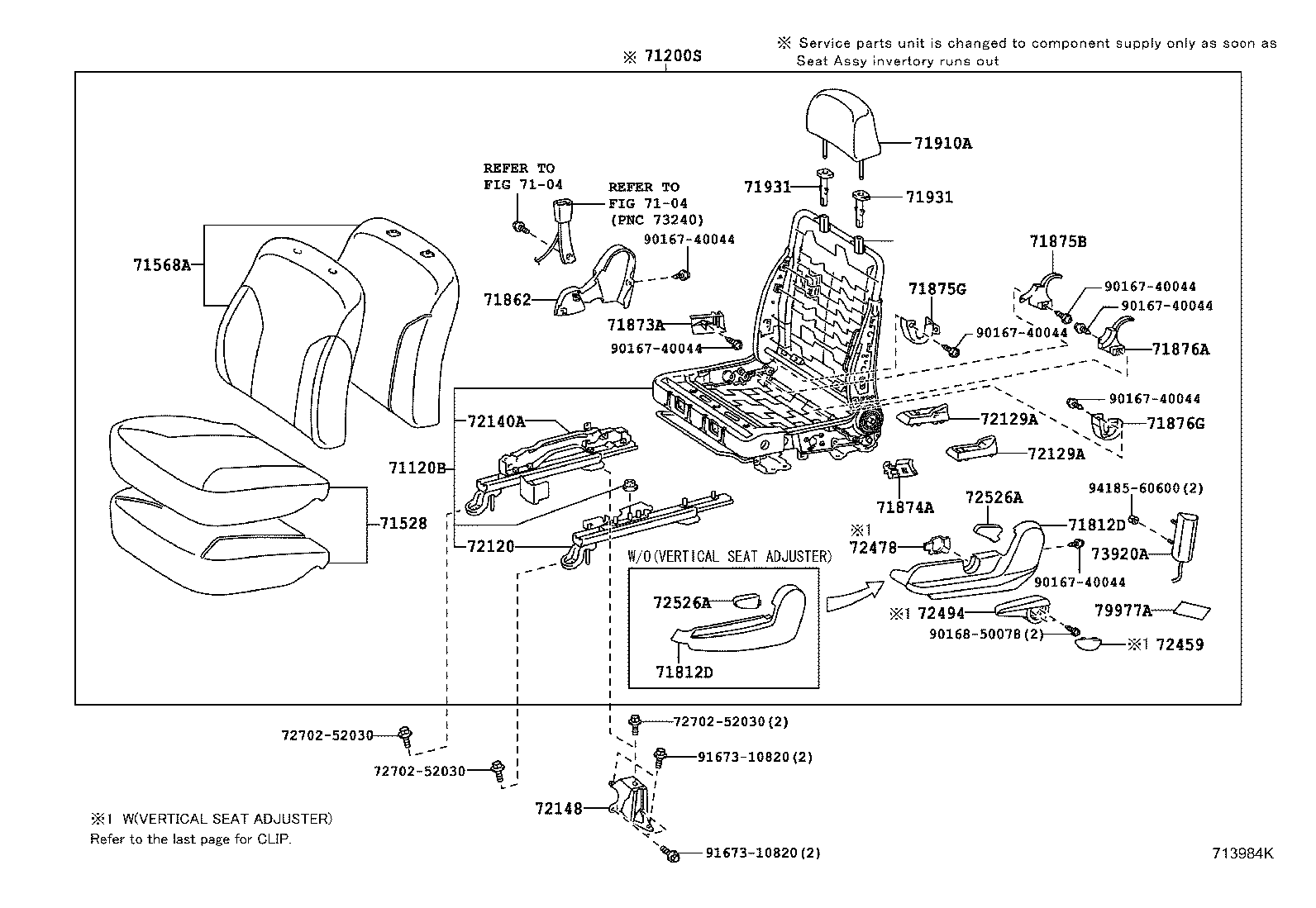

DRIVER SEAT-W(SRS SIDE AIR BAG)

diagram 7104 7104 71120B 71200S 71528 71568A 71812D 71812D 71862 71873A 71874A 71875B 71875G 71876A 71876G 71910A 71931 71931 72120 72129A 72129A 72140A 72148 72459 72478 72494 72526A 72526A 7270252030 7270252030 7270252030 73920A 79977A 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9167310820 9167310820 9418560600
Part # Description Qty Price
Common parts
72702-52030
90167-40044
90168-50078
91673-10820
94185-60600
Linked diagrams
7104

(0508-0808)LHD

Click highlighted areas on diagram

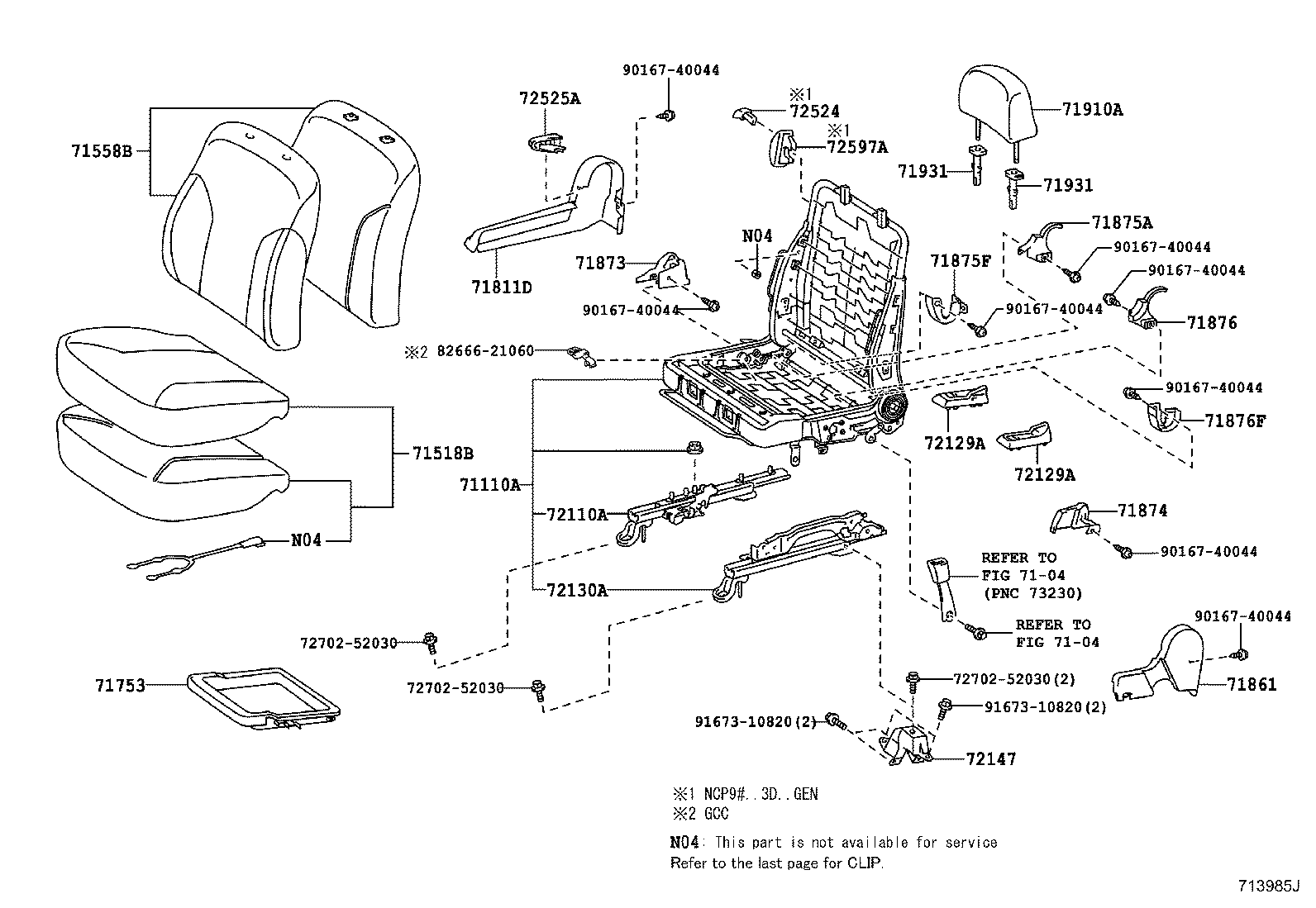

PASSENGER SEAT

diagram 7104 7104 71110A 71518B 71558B 71753 71811D 71861 71873 71874 71875A 71875F 71876 71876F 71910A 71931 71931 72110A 72129A 72129A 72130A 72147 72524 72525A 72597A 7270252030 7270252030 7270252030 8266621060 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9167310820 9167310820
Part # Description Qty Price
Common parts
72702-52030
82666-21060
90167-40044
91673-10820
Linked diagrams
7104

(0508-0808)LHD

Click highlighted areas on diagram

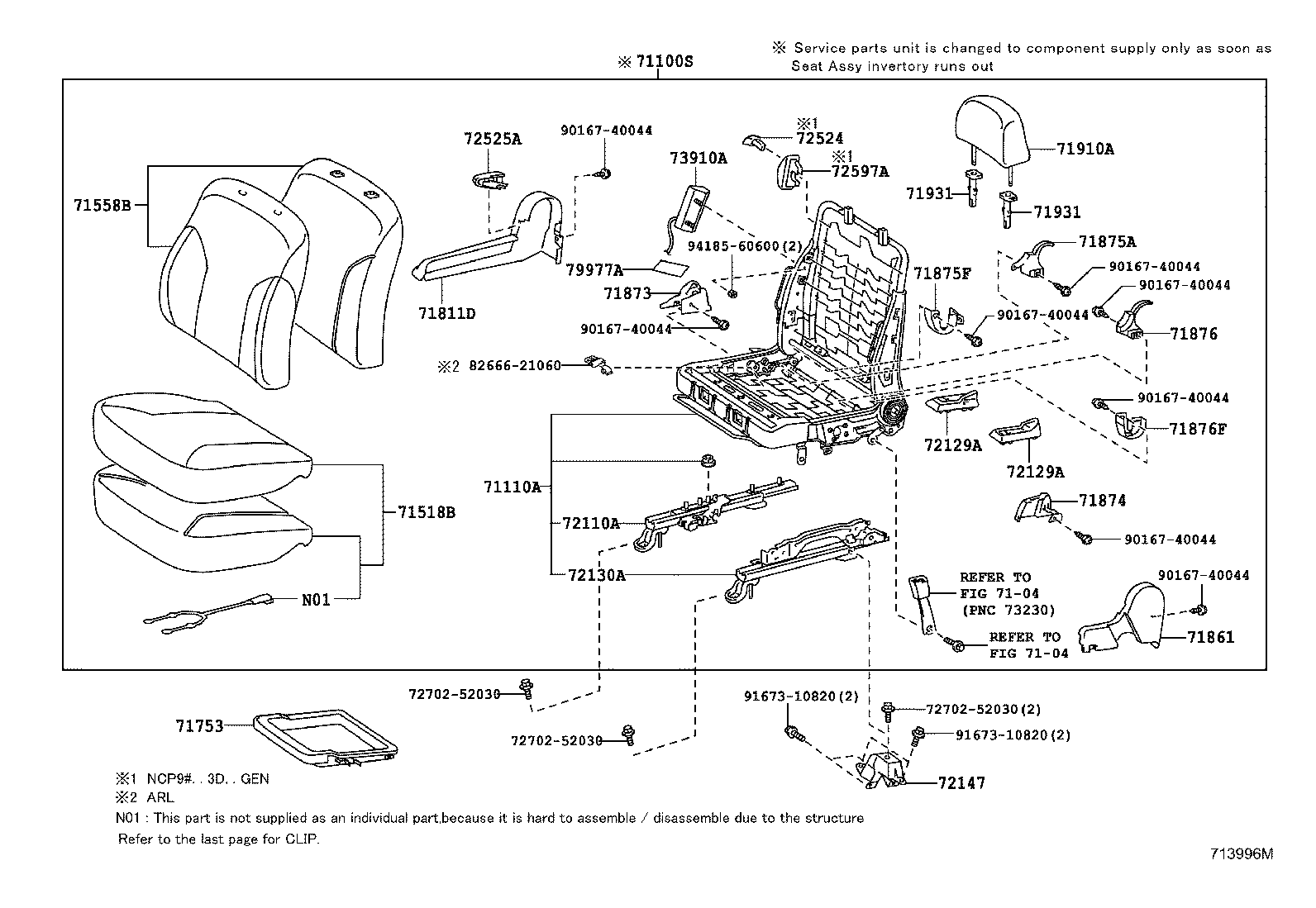

PASSENGER SEAT-W(SRS SIDE AIR BAG)

diagram 7104 7104 71100S 71110A 71518B 71558B 71753 71811D 71861 71873 71874 71875A 71875F 71876 71876F 71910A 71931 71931 72110A 72129A 72129A 72130A 72147 72524 72525A 72597A 7270252030 7270252030 7270252030 73910A 79977A 8266621060 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9167310820 9167310820 9418560600
Part # Description Qty Price
Common parts
72702-52030
82666-21060
90167-40044
91673-10820
94185-60600
Linked diagrams
7104

ILLUST NO. 1 OF 2(0601- )LHD

Click highlighted areas on diagram

DRIVER SEAT,W(SRS SIDE AIR BAG)

diagram 7104 7104 7104 71072S 71074S 71200S 71512S 71528 71537A 71552S 71568A 71812D 71862 71873A 71874A 71875A 71875F 71876 71876F 71910A 71931 71931 72120 72140A 72148 72457D 72459A 72478 72526A 7270252030 7270252030 7270252030 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9046818008 9046818008 9155310820 9155310820
Part # Description Qty Price
71528 - PAD, FRONT SEAT CUSHION W/COVER, LH
71528-52C80B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DARK GRAY,TRIM1#

 1
71528-52C80E2

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE,TRIM4#

 1
71528-52C80B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DARK GRAY,TRIM1#

 1
71528-52C80E2

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE,TRIM4#

 1
71528-52C80E2

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE,TRIM4#

 1
71528-52C80E2

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE,TRIM4#

 1
71528-52C80B0

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DARK GRAY,TRIM1#

 1
71528-52C80B0

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DARK GRAY,TRIM1#

 1
71528-52D20B0

NCP9#..LHD

DARK GRAY,TRIM1#

 1
71528-52C80E2

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,GREGE,TRIM4#

 1
71528-52D20E2

NCP9#..LHD

GREGE,TRIM4#

 1
71528-52C80B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DARK GRAY,TRIM1#

 1
71528-52C80E2

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,GREGE,TRIM4#

 1
71528-52C80B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DARK GRAY,TRIM1#

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

NCP9#

 4
71568A - PAD, FRONT SEAT BACK W/COVER, LH
71568-52D00B0

NCP9#

DARK GRAY,TRIM1#

 1
71568-52D00E1

NCP9#

GREGE,TRIM4#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-52230B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71812-52230B0

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71812-52230B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71812-52220B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
71812-52230B0

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71812-52230B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71812-52230B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-52170B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71874-52170B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52170B0

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52150B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
71874-52170B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71874-52170B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71874-52170B0

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52170B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-52160B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52160B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52140B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
71874-52160B0

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52160B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71874-52160B0

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52160B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58040B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-52170B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58040B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-52160B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-52590B1

NCP9#

DK.GRAY,TRIM1#

 2
71910-52590E2

NCP9#

GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-47010B2

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-47010E3

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

NCP9#

W/O(LOCK),GREGE,TRIM4#

 2
71930-44020B0

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47010B2

NCP9#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-47010B2

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-47010E3

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

NCP9#

W/O(LOCK),GREGE,TRIM4#

 2
71930-44020B0

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47010B2

NCP9#

W/O(LOCK),DK.GRAY,TRIM1#

 2
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-52010

NCP9#

 1
72457D - KNOB, VERTICAL SEAT ADJUSTER, LH
72457-52040B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72457-52040B0

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72457-52040B0

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72457-52040B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
72457-52040B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72457-52040B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
72459A - CAP, VERTICAL SEAT ADJUSTER KNOB
72459-60010B2

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72459-60010B2

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72459-60010B2

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72459-60010B2

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
72459-60010B2

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
72459-60010B2

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72478 - BUSH, VERTICAL ADJUSTER
72478-60010

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
72478-60010

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
72478-60010

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1

 1
72478-60010

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1

 1
72478-60010

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
72478-60010

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-58040B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
Common parts
72702-52030
90167-40044
90168-50078
90468-18008
91553-10820
Linked diagrams
7104

ILLUST NO. 2 OF 2(0601- )LHD

Click highlighted areas on diagram

PASSENGER SEAT,W(SRS SIDE AIR BAG)

diagram 7104 7104 7104 71071S 71073S 71100S 71511S 71518B 71537A 71551S 71558B 71811D 71861 71873 71874 71875A 71875F 71876 71876F 71910A 71931 71931 72110A 72130A 72147 72525A 7270252030 7270252030 7270252030 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9046818008 9046818008 9155310820 9155310820
Part # Description Qty Price
71518B - PAD, FRONT SEAT CUSHION W/COVER, RH
71518-52C60B0

NCP9#..LHD..GEN

DARK GRAY,TRIM1#

 1
71518-52C60E2

NCP9#..LHD..GEN

GREGE,TRIM4#

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

NCP9#

 4
71558B - PAD, FRONT SEAT BACK W/COVER, RH
71558-52E30E1

NCP9#

GREGE,TRIM4#

 1
71558-52E30B0

NCP9#

DARK GRAY,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-52230B0

NCP9#..GCC,GEN

DK.GRAY,TRIM1#,4#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-52220B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-52120B0

NCP9#..GCC,GEN

DK.GRAY,TRIM1#,4#

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71873-52130B0

NCP9#..GCC,GEN

DK.GRAY,TRIM1#,4#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58040B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-52170B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58040B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-52160B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-52590B1

NCP9#

DK.GRAY,TRIM1#

 2
71910-52590E2

NCP9#

GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010E4

NCP9#

W/O(LOCK),GREGE,TRIM4#

 2
71930-44020E0

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-47010B2

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-47010E3

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-44020B0

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47010B2

NCP9#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010E4

NCP9#

W/O(LOCK),GREGE,TRIM4#

 2
71930-44020E0

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-47010B2

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-47010E3

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-44020B0

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47010B2

NCP9#

W/O(LOCK),DK.GRAY,TRIM1#

 2
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-52020

NCP9#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-58030B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
Common parts
72702-52030
90167-40044
90468-18008
91553-10820
Linked diagrams
7104

ILLUST NO. 2 OF 2(0601- )LHD

Click highlighted areas on diagram

PASSENGER SEAT

diagram 7104 7104 7104 71071S 71073S 71110A 71511S 71518B 71537A 71551S 71558B 71811D 71861 71873 71874 71875A 71875F 71876 71876F 71910A 71931 71931 72110A 72130A 72147 72525A 7270252030 7270252030 7270252030 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017808012 9046818008 9046818008 9155310820 9155310820
Part # Description Qty Price
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-52440

NCP9#..GCC,GEN

 1
71518B - PAD, FRONT SEAT CUSHION W/COVER, RH
71518-52C60B0

NCP9#..LHD..GEN

DARK GRAY,TRIM1#

 1
71518-52C60E2

NCP9#..LHD..GEN

GREGE,TRIM4#

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

NCP9#

 4
71558B - PAD, FRONT SEAT BACK W/COVER, RH
71558-52E30E1

NCP9#

GREGE,TRIM4#

 1
71558-52E30B0

NCP9#

DARK GRAY,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-52230B0

NCP9#..GCC,GEN

DK.GRAY,TRIM1#,4#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-52220B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-52120B0

NCP9#..GCC,GEN

DK.GRAY,TRIM1#,4#

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71873-52130B0

NCP9#..GCC,GEN

DK.GRAY,TRIM1#,4#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58040B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-52170B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58040B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-52160B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-52590B1

NCP9#

DK.GRAY,TRIM1#

 2
71910-52590E2

NCP9#

GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010E4

NCP9#

W/O(LOCK),GREGE,TRIM4#

 2
71930-44020E0

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-47010B2

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-47010E3

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-44020B0

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47010B2

NCP9#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-47010B2

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-47010E3

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

NCP9#

W/O(LOCK),GREGE,TRIM4#

 2
71930-44020B0

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47010B2

NCP9#

W/O(LOCK),DK.GRAY,TRIM1#

 2
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-52020

NCP9#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-58030B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
Common parts
72702-52030
90167-40044
90178-08012
90468-18008
91553-10820
Linked diagrams
7104

ILLUST NO. 1 OF 2(0601- )LHD

Click highlighted areas on diagram

DRIVER SEAT

diagram 7104 7104 7104 71072S 71074S 71120B 71512S 71528 71537A 71552S 71568A 71812D 71862 71873A 71874A 71875A 71875F 71876 71876F 71910A 71931 71931 72120 72140A 72148 72457D 72459A 72478 72526A 7270252030 7270252030 7270252030 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9017808012 9046818008 9046818008 9155310820 9155310820
Part # Description Qty Price
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-52530

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
71120-52530

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
71120-52530

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1

 1
71120-52530

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
71120-52530

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1

 1
71120-52530

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
71120-52510

NCP9#

 1
71528 - PAD, FRONT SEAT CUSHION W/COVER, LH
71528-52C80B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DARK GRAY,TRIM1#

 1
71528-52C80E2

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE,TRIM4#

 1
71528-52C80B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DARK GRAY,TRIM1#

 1
71528-52C80E2

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE,TRIM4#

 1
71528-52C80E2

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE,TRIM4#

 1
71528-52C80E2

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),GREGE,TRIM4#

 1
71528-52C80B0

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DARK GRAY,TRIM1#

 1
71528-52C80B0

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DARK GRAY,TRIM1#

 1
71528-52D20B0

NCP9#..LHD

DARK GRAY,TRIM1#

 1
71528-52C80E2

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,GREGE,TRIM4#

 1
71528-52D20E2

NCP9#..LHD

GREGE,TRIM4#

 1
71528-52C80B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DARK GRAY,TRIM1#

 1
71528-52C80E2

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,GREGE,TRIM4#

 1
71528-52C80B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DARK GRAY,TRIM1#

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

NCP9#

 4
71568A - PAD, FRONT SEAT BACK W/COVER, LH
71568-52D00B0

NCP9#

DARK GRAY,TRIM1#

 1
71568-52D00E1

NCP9#

GREGE,TRIM4#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-52230B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71812-52230B0

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71812-52230B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71812-52220B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
71812-52230B0

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71812-52230B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71812-52230B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-52170B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71874-52170B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52170B0

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52150B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
71874-52170B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71874-52170B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71874-52170B0

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52170B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-52160B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52160B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52140B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
71874-52160B0

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52160B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71874-52160B0

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
71874-52160B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58040B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-52170B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58040B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-52160B0

NCP9#

DK.GRAY,TRIM1#,4#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-52590B1

NCP9#

DK.GRAY,TRIM1#

 2
71910-52590E2

NCP9#

GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-47010B2

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-47010E3

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

NCP9#

W/O(LOCK),GREGE,TRIM4#

 2
71930-44020B0

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47010B2

NCP9#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71930-47010B2

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-47010E3

NCP9#

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

NCP9#

W/O(LOCK),GREGE,TRIM4#

 2
71930-44020B0

NCP9#

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47010B2

NCP9#

W/O(LOCK),DK.GRAY,TRIM1#

 2
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-52010

NCP9#

 1
72457D - KNOB, VERTICAL SEAT ADJUSTER, LH
72457-52040B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72457-52040B0

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72457-52040B0

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72457-52040B0

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
72457-52040B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72457-52040B0

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
72459A - CAP, VERTICAL SEAT ADJUSTER KNOB
72459-60010B2

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72459-60010B2

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72459-60010B2

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72459-60010B2

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
72459-60010B2

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1,DK.GRAY,TRIM1#,4#

 1
72459-60010B2

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY)),DK.GRAY,TRIM1#,4#

 1
72478 - BUSH, VERTICAL ADJUSTER
72478-60010

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
72478-60010

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
72478-60010

NCP9#..LHD..GEN

CHILE SPEC&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1

 1
72478-60010

NCP9#..LHD..GEN

CHILE SPEC&REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))&REAR SEAT BELT-ELR/ALR X2, ELR X1

 1
72478-60010

NCP9#..LHD..GEN

REAR SEAT-6:4 FOLD ARMREST&FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
72478-60010

NCP9#..LHD..GEN

FRONT SEAT SLIDE-WITH(LIFTER(DRIVER ONLY))

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-58040B0

NCP9#

DK.GRAY,TRIM1#,4#

 1
Common parts
72702-52030
90167-40044
90168-50078
90178-08012
90468-18008
91553-10820
Linked diagrams
7104
