NCP92R-BEPRK (2006)

Toyota Yaris

Production Jan 2006 - Aug 2008
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0808)ARL,GEN

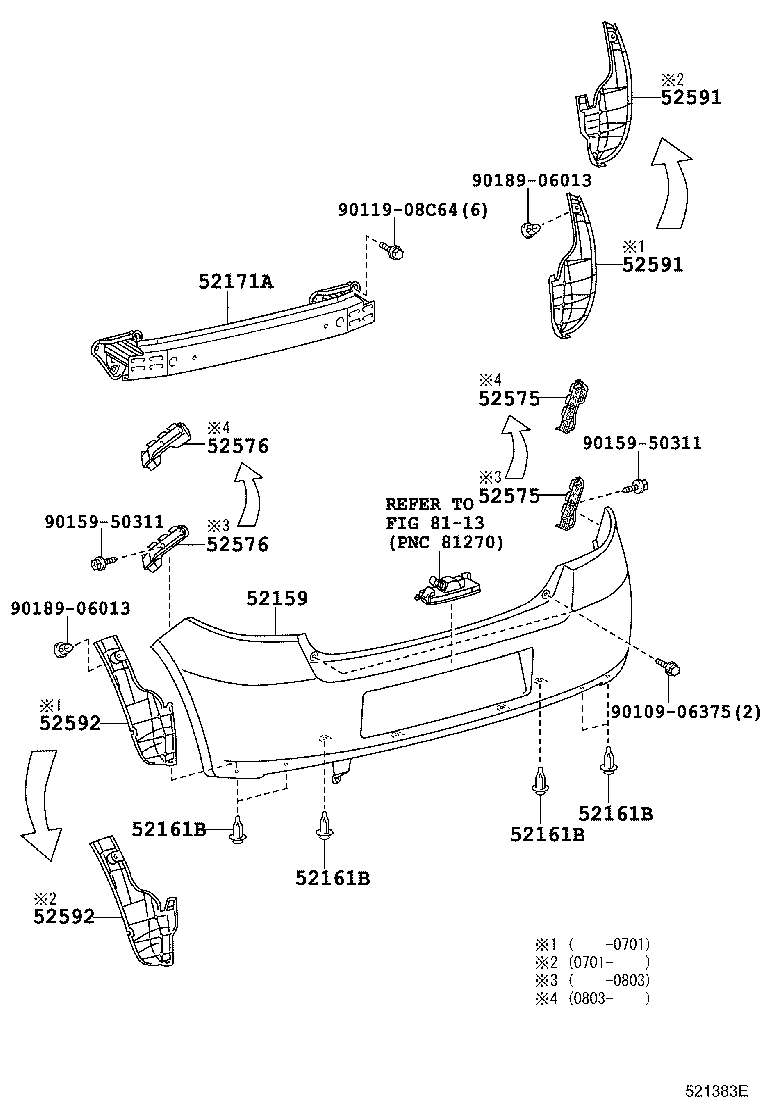

Click highlighted areas on diagram

diagram 52159 52161B 52161B 52161B 52161B 52171A 52575 52575 52576 52576 52591 52591 52592 52592 8113 9010906375 9011908C64 9015950311 9015950311 9018906013 9018906013
Part # Description Qty Price
Common parts
90109-06375
90119-08C64
90159-50311
90189-06013
Linked diagrams
8113

(0601- )

Click highlighted areas on diagram

diagram 52015A 52015A 52016A 52016A 52155A 52156A 52159 52161B 52161B 52171A 52575 52576 52591 52592 9010906375 9011908C64 9011908C64 9011908C64 9011908C64 9015950311 9015950353 9017608057 9017608057 9018906013 9018906065
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-52050

NCP9#..ARL,GEN

 1
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-52050

NCP9#..ARL,GEN

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-52060

NCP9#..ARL,GEN

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-52060

NCP9#..ARL,GEN

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-52090

NCP9#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-52090

NCP9#

 1
52159 - COVER, REAR BUMPER
52159-52929

NCP9#

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

NCP9#

 4
52161B - PIECE, REAR BUMPER
52161-16010

NCP9#

 4
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52140

NCP9#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52120

NCP9#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52230

NCP9#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52220

NCP9#

 1
Common parts
90109-06375
90119-08C64
90159-50311
90159-50353
90176-08057
90189-06013
90189-06065
