NCP92R-BEMRK (2008)

Toyota Yaris

Production Aug 2008 - Jul 2013
Engine 2NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )MTM

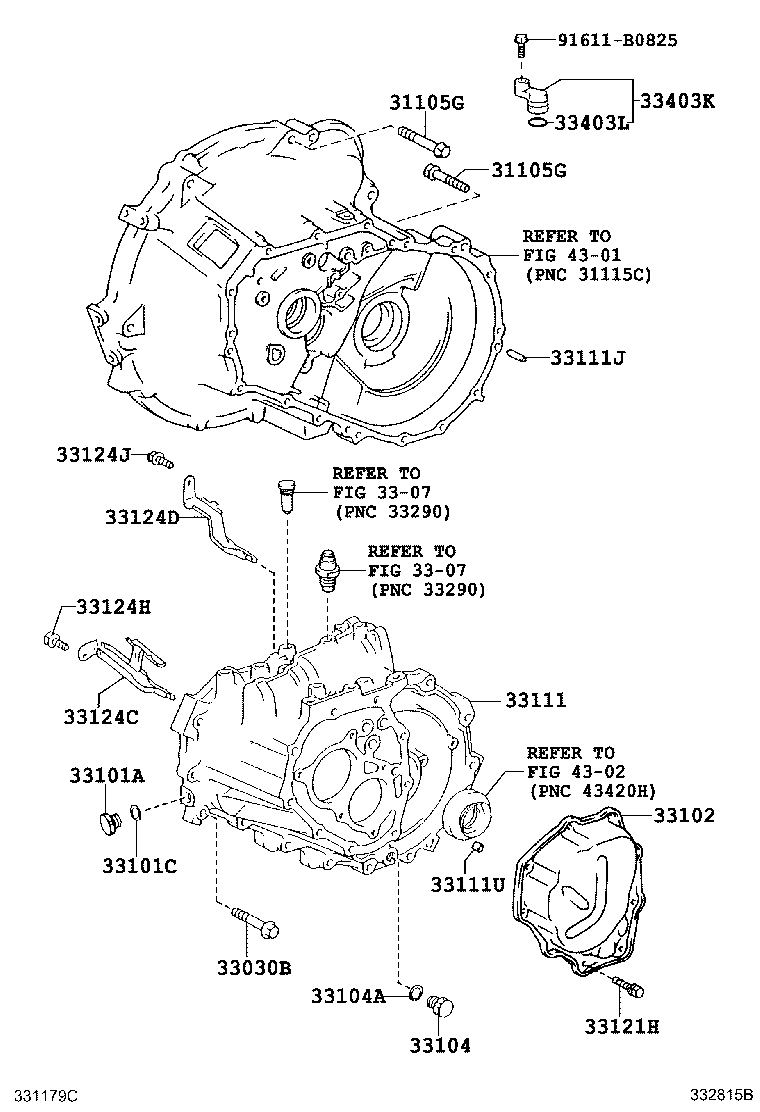

Click highlighted areas on diagram

C54

diagram 31105G 31105G 33030B 3307 3307 33101A 33101C 33102 33104 33104A 33111 33111J 33111U 33121H 33124C 33124D 33124H 33124J 33403K 33403L 4301 4302 91611B0825
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61050

NCP9#..MTM

*10-1.25PX50-30

 7
91612-61045

NCP9#..MTM

*10-1.25PX45-30

 7
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61050

NCP9#..MTM

*10-1.25PX50-30

 7
91612-61045

NCP9#..MTM

*10-1.25PX45-30

 7
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08353

NCP9#..MTM

*8-1.25PX50-30

 13
90105-08430

NCP9#..MTM

*8-1.25PX45-27.5

 3
90105-08353

NCP9#..MTM

*8-1.25PX50-30

 13
90105-08430

NCP9#..MTM

*8-1.25PX45-27.5

 3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NCP9#..MTM

 1
90341-18033

NCP9#..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

NCP9#..MTM

 1
90430-18008

NCP9#..MTM

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12021

NCP9#..MTM

 1
33102-12021

NCP9#..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18033

NCP9#..MTM

 1
90341-18033

NCP9#..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

NCP9#..MTM

 1
90430-18008

NCP9#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-52120

NCP9#..MTM

 1
33111-12260

NCP9#..MTM

 1
33111-52120

NCP9#..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NCP9#..MTM

L=23,OD=8

 4
90250-08054

NCP9#..MTM

L=23,OD=8

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

NCP9#..MTM

L=11,OD=11

 2
90253-11001

NCP9#..MTM

L=11,OD=11

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
91611-60835

NCP9#..MTM

 9
90119-08429

NCP9#..MTM

 9
90119-08782

NCP9#..MTM

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050

NCP9#..MTM

 1
33124-20050

NCP9#..MTM

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021

NCP9#..MTM

 1
33124-12021

NCP9#..MTM

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820

NCP9#..MTM

 1
91611-G0820

NCP9#..MTM

 1
33124J - BOLT, W/WASHER
91611-G0820

NCP9#..MTM

 1
91611-G0820

NCP9#..MTM

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

NCP92..RHD..MTM;NCP9#..MTM..(ARL,GCC)

 1
33403-35230

NCP92..RHD..MTM;NCP9#..MTM..(ARL,GCC)

 1
33403L - RING, O
96711-24030

NCP92..RHD..MTM;NCP9#..MTM..(ARL,GCC)

 1
96711-24030

NCP92..RHD..MTM;NCP9#..MTM..(ARL,GCC)

 1
Common parts
91611-B0825
Linked diagrams
3307
4301
4302
