NCP92L-BEPRKV (2008)

Toyota Yaris

Production Aug 2008 - Jul 2013
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 7(0508- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82142 82345 82666A 82666A 82666B 82824E 82824E 82824E 82824E 82824E 82824E 82824E 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9015970004
Part # Description Qty Price
Common parts
90119-06915
90159-70004
Linked diagrams
8401

ILLUST NO. 5 OF 7(0508- )

Click highlighted areas on diagram

FLOOR & ROOF

diagram 8121 82161 82171 82182 82345A 82817A 82824F 9011906915 9011906915
Part # Description Qty Price
Common parts
90119-06915
Linked diagrams
8121

ILLUST NO. 4 OF 7(0508- )

Click highlighted areas on diagram

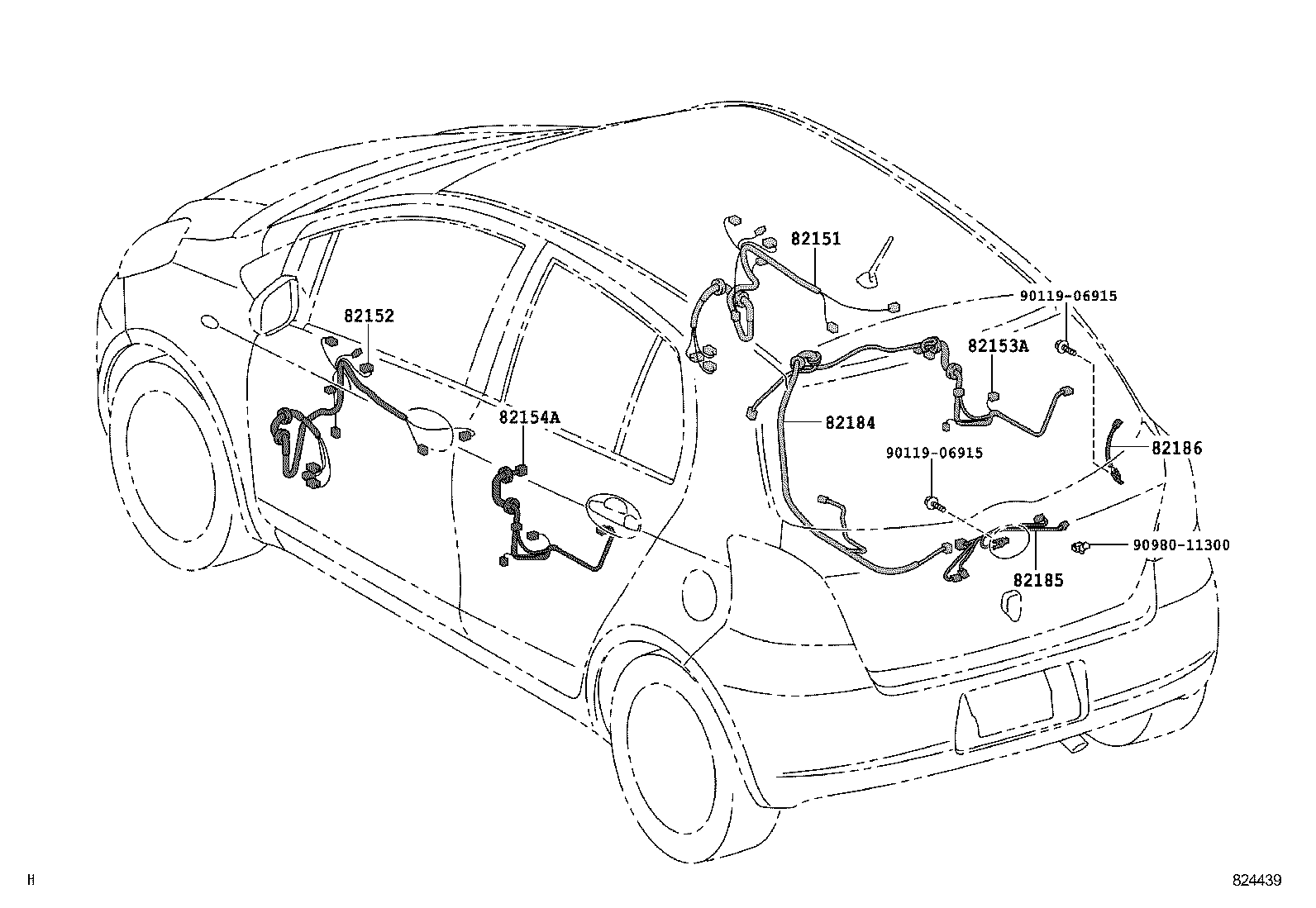

DOOR

diagram 82151 82152 82153A 82154A 82184 82185 82186 9011906915 9011906915 9098011300
Part # Description Qty Price
Common parts
90119-06915
90980-11300

ILLUST NO. 1 OF 7(0508- )LHD

Click highlighted areas on diagram

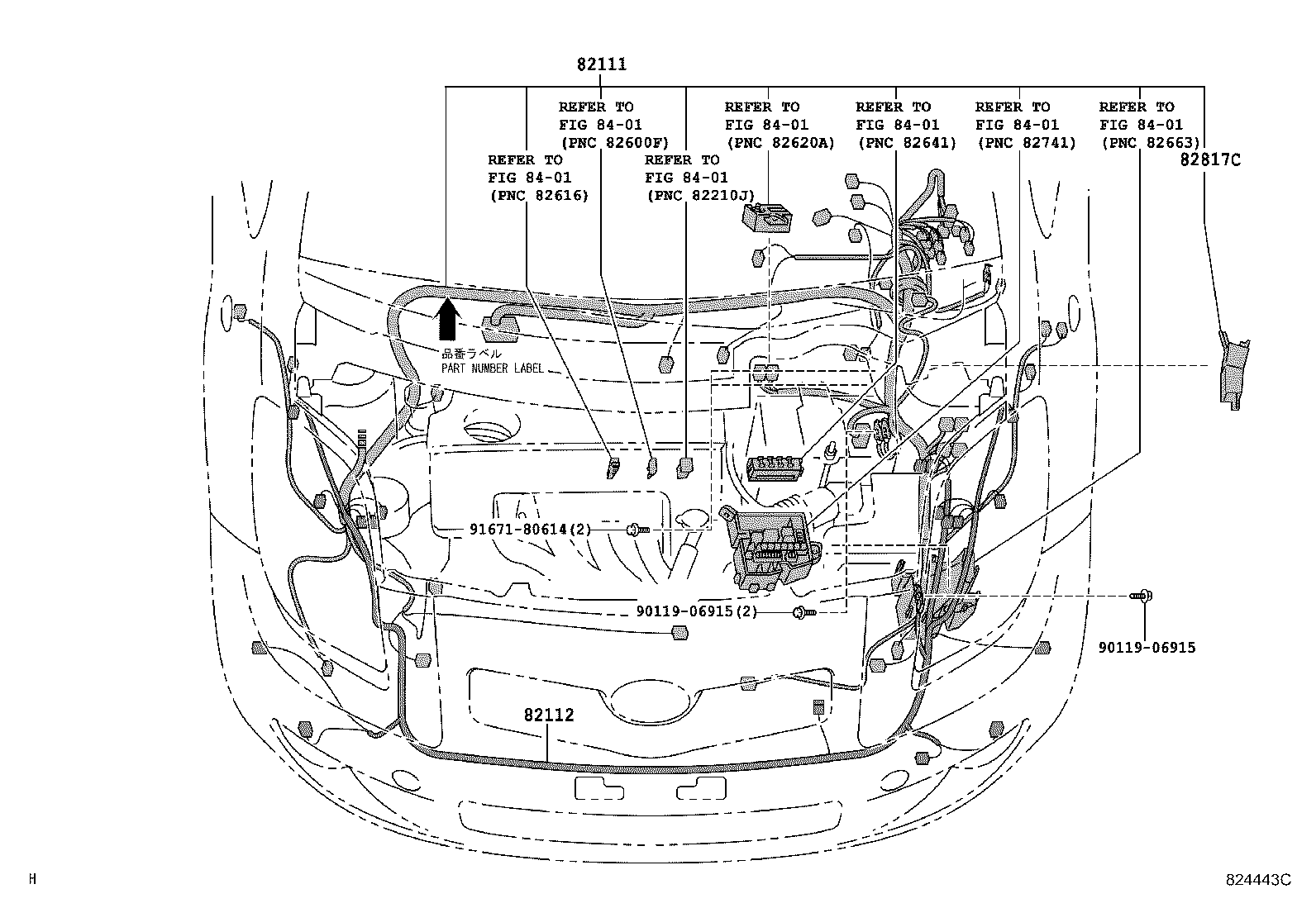

ENGINE ROOM

diagram 82111 82112 82817C 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9167180614
Part # Description Qty Price
Common parts
90119-06915
91671-80614
Linked diagrams
8401

ILLUST NO. 2 OF 7(0508- )LHD

Click highlighted areas on diagram

ENGINE

diagram 82121 82123 82219A 82817J 82823S 82823T 9011906915 9155281020 9167180614 9167380614 9415180801
Part # Description Qty Price
Common parts
90119-06915
91552-81020
91671-80614
91673-80614
94151-80801

ILLUST NO. 6 OF 7(0508- )

Click highlighted areas on diagram

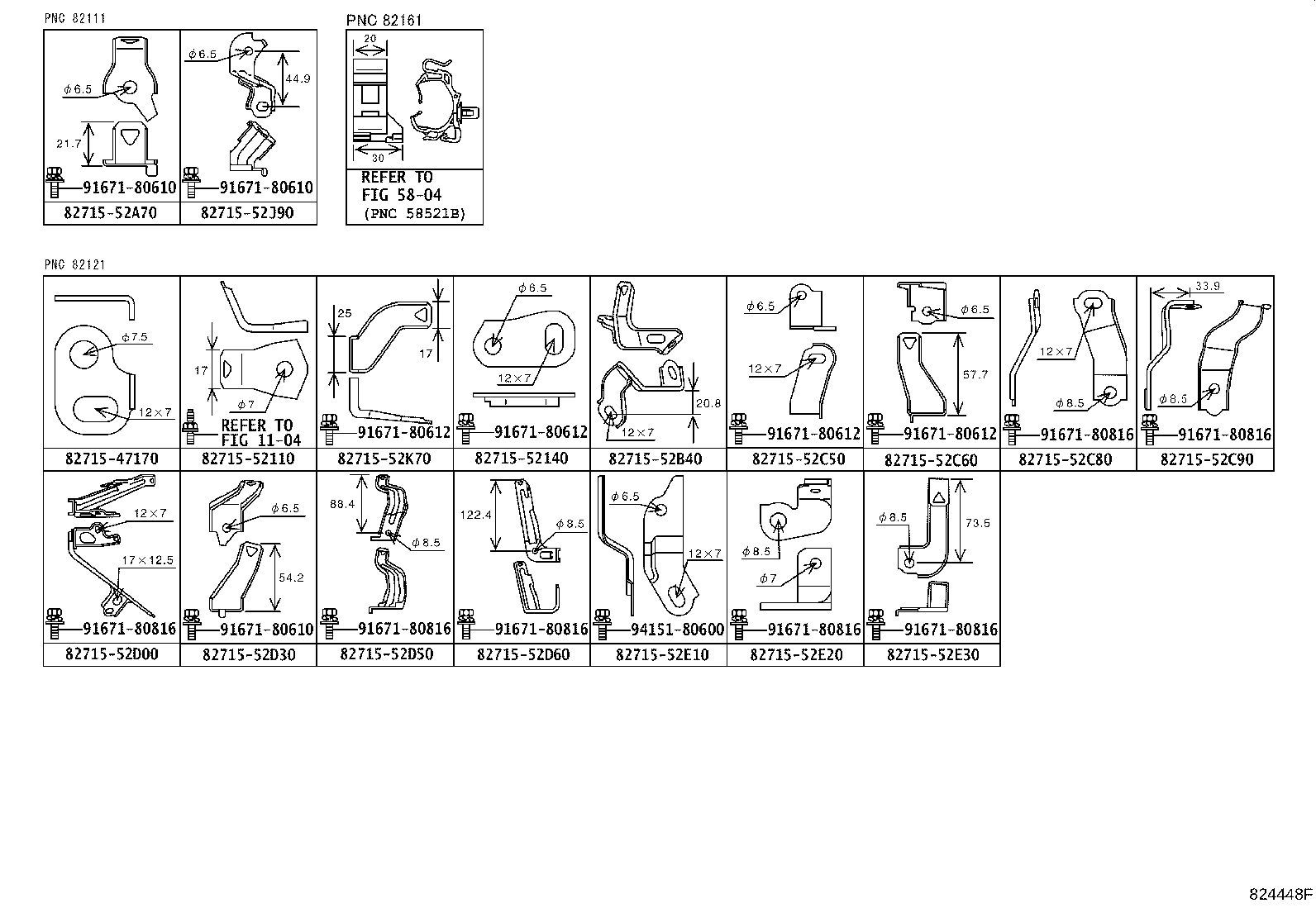

CLAMP & BRACKET

diagram 1104 5804 8271547170 8271552110 8271552140 8271552A70 8271552B40 8271552C50 8271552C60 8271552C80 8271552C90 8271552D00 8271552D30 8271552D50 8271552D60 8271552E10 8271552E20 8271552E30 8271552J90 8271552K70 9167180610 9167180610 9167180610 9167180612 9167180612 9167180612 9167180612 9167180816 9167180816 9167180816 9167180816 9167180816 9167180816 9167180816 9415180600
Part # Description Qty Price
Common parts
82715-47170
82715-52110
82715-52140
82715-52A70
82715-52B40
82715-52C50
82715-52C60
82715-52C80
82715-52C90
82715-52D00
82715-52D30
82715-52D50
82715-52D60
82715-52E10
82715-52E20
82715-52E30
82715-52J90
82715-52K70
91671-80610
91671-80612
91671-80816
94151-80600
Linked diagrams
1104
5804

ILLUST NO. 7 OF 7(0508- )

Click highlighted areas on diagram

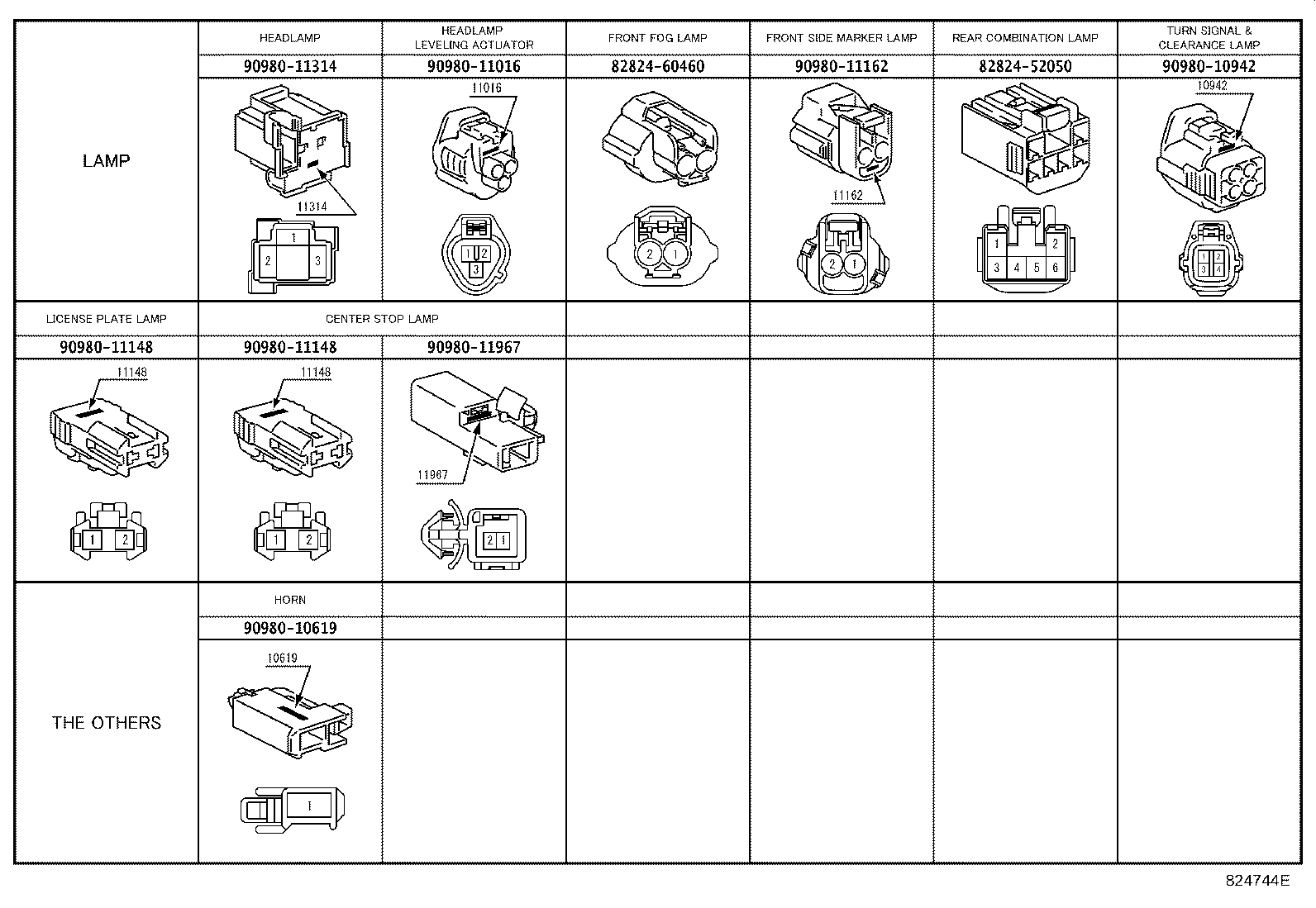

CONNECTOR

diagram 8282452050 8282452130 8282460460 9008098001 9008098028 9008098298 9098010619 9098010860 9098010942 9098010957 9098011016 9098011019 9098011148 9098011148 9098011162 9098011162 9098011314 9098011967
Part # Description Qty Price
Common parts
82824-52050
82824-52130
82824-60460
90080-98001
90080-98028
90080-98298
90980-10619
90980-10860
90980-10942
90980-10957
90980-11016
90980-11019
90980-11148
90980-11162
90980-11314
90980-11967

ILLUST NO. 4 OF 7(0601- )

Click highlighted areas on diagram

DOOR

diagram 82151 82152 82153A 82154A
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-52E40

NCP9#..GCC

 1
82151-52E60

NCP9#..GCC

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82151-52F00

NCP9#..GCC

POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82151-52F00

NCP9#..GCC

POWER DOOR LOCK-WITH

 1
82151-52F00

NCP9#..GCC

POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82151-52F00

NCP9#..GCC

POWER DOOR LOCK-WITH

 1
82151-52E40

NCP9#..GCC

 1
82151-52K30

NCP9#..GCC

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82151-52F01

NCP9#..GCC

POWER DOOR LOCK-WITH

 1
82151-52F01

NCP9#..GCC

POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82152 - WIRE, FRONT DOOR, LH
82152-52B40

NCP9#..GCC

 1
82152-52B60

NCP9#..GCC

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82152-52C00

NCP9#..GCC

POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82152-52C00

NCP9#..GCC

POWER DOOR LOCK-WITH

 1
82152-52C00

NCP9#..GCC

POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82152-52C00

NCP9#..GCC

POWER DOOR LOCK-WITH

 1
82152-52B40

NCP9#..GCC

 1
82152-52F00

NCP9#..GCC

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82152-52C01

NCP9#..GCC

POWER DOOR LOCK-WITH

 1
82152-52C01

NCP9#..GCC

POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82153A - WIRE, REAR DOOR, RH
82153-52340

NCP9#

POWER DOOR LOCK-WITH

 1
82153-52440

NCP9#..GCC,GEN

POWER DOOR LOCK-WITH

 1
82154A - WIRE, REAR DOOR, LH
82153-52440

NCP9#..GCC,GEN

POWER DOOR LOCK-WITH

 1
82153-52340

NCP9#

POWER DOOR LOCK-WITH

 1

ILLUST NO. 1 OF 7(0601- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82112 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9167180614 9415180800
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-52D20

NCP9#..GCC

 1
82111-52J32

NCP92..GCC

GCC BUSINESS PACKAGE

 1
82111-52D20

NCP9#..GCC;NCP9#..LHD..ATM..GEN

 1
82111-52D21

NCP9#..GCC

 1
82111-52D20

NCP9#..GCC;NCP9#..LHD..ATM..GEN

PART NUMBER LABEL=82111-52D20

 1
82111-52D21

NCP9#..GCC

PART NUMBER LABEL=82111-52D21

 1
82111-52D20

NCP9#..GCC

PART NUMBER LABEL=82111-52D20

 1
82111-52J32

NCP92..GCC

PART NUMBER LABEL=82111-52J32

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-52160

NCP9#

 1
82112-52190

NCP9#

FRONT FOG LAMP-WITH

 1
82112-52230

NCP9#..GCC

SAUDI ARABIA SPEC&FRONT FOG LAMP-WITH

 1
82112-52160

NCP9#

 1
82112-52230

NCP9#..GCC

SAUDI ARABIA SPEC&FRONT FOG LAMP-WITH

 1
82112-52220

NCP9#..GCC

SAUDI ARABIA SPEC

 1
82112-52220

NCP9#..GCC

SAUDI ARABIA SPEC

 1
82112-52190

NCP9#

FRONT FOG LAMP-WITH

 1
Common parts
90119-06915
91671-80614
94151-80800
Linked diagrams
8401

ILLUST NO. 2 OF 7(0601- )LHD

Click highlighted areas on diagram

ENGINE

diagram 82121 82123 82219A 82823S 82823T 9011906915 9155281020 9167180614 9167380616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-52A60

NCP9#..LHD..ATM

 1
82121-52A60

NCP9#..ATM..GCC

 1
82121-52F50

NCP92..ATM..GCC

GCC BUSINESS PACKAGE

 1
82123 - WIRE, ENGINE, NO.3
82123-52270

NCP9#..ATM

 1
82123-52270

NCP9#..ATM

 1
82219A - WIRE, SENSOR
82219-52040

NCP9#

 1
82219-52040

NCP9#

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NCP9#

 1
Common parts
90119-06915
91552-81020
91671-80614
91673-80616

ILLUST NO. 3 OF 7(0601- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82142 82345 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9015970003
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-5CB00

NCP92..GCC

 1
82141-5CB10

NCP92..GCC

POWER DOOR LOCK-WITH

 1
82141-5DA80

NCP9#..GCC

 1
82141-5DA90

NCP9#..GCC

POWER DOOR LOCK-WITH

 1
82141-5DA91

NCP9#..GCC

POWER DOOR LOCK-WITH

 1
82141-5DA81

NCP9#..GCC

FRONT FOG LAMP-WITH

 1
82141-5DA81

NCP9#..GCC

 1
82141-5DA91

NCP9#..GCC

POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82141-5DA91

NCP9#..GCC

POWER DOOR LOCK-WITH&FRONT FOG LAMP-WITH

 1
82145-52D20

NCP9#..GCC

 1
82141-5DA81

NCP9#..GCC

FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82141-5DA81

NCP9#..GCC

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)

 1
82145-52D30

NCP9#..GCC

POWER DOOR LOCK-WITH

 1
82141-5DA91

NCP9#..GCC

POWER DOOR LOCK-WITH&FRONT FOG LAMP-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTECONTROL(COLORED)

 1
82141-5CB10

NCP92..GCC

PART NUMBER LABEL=82141-52S50 OR 82141-5CB10

 1
82141-5CB00

NCP92..GCC

PART NUMBER LABEL=82141-52S40 OR 82141-5CB00

 1
82141-5DA80

NCP9#..GCC

PART NUMBER LABEL=82141-5DA40 OR 82141-5DA80

 1
82141-5DA90

NCP9#..GCC

PART NUMBER LABEL=82141-5DA50 OR 82141-5DA90

 1
82141-5DA81

NCP9#..GCC

PART NUMBER LABEL=82141-5DA41 OR 82141-5DA81

 1
82141-5DA91

NCP9#..GCC

PART NUMBER LABEL=82141-5DA51 OR 82141-5DA91

 1
82141-5DA81

NCP9#..GCC

PART NUMBER LABEL=82141-5DA41 OR 82141-5DA81

 1
82141-5DA91

NCP9#..GCC

PART NUMBER LABEL=82141-5DA51 OR 82141-5DA91

 1
82145-52D30

NCP9#..GCC

PART NUMBER LABEL=82145-52D10 OR 82145-52D30

 1
82145-52D20

NCP9#..GCC

PART NUMBER LABEL=82145-52D00 OR 82145-52D20

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-52300

NCP9#..LHD

 1
82142-52300

NCP9#..LHD

 1
82345 - DIODE
82345-32010

NCP9#

 1
82345-32010

NCP9#..ARL,GCC

 1
Common parts
90119-06915
90159-70003
Linked diagrams
8401

ILLUST NO. 6 OF 7(0601- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 1104 8271547170 8271552110 8271552140 8271552A70 8271552C50 8271552C60 8271552C80 8271552D00 8271552D30 8271552D50 8271552D60 8271552E10 8271552E20 8271552E30 8271552J90 8271552K70 9167180610 9167180610 9167180610 9167180612 9167180612 9167180614 9167180614 9167180614 9167180816 9167180816 9167180816 9167180816 9167180816 9167180816 9415180600
Part # Description Qty Price
Common parts
82715-47170
82715-52110
82715-52140
82715-52A70
82715-52C50
82715-52C60
82715-52C80
82715-52D00
82715-52D30
82715-52D50
82715-52D60
82715-52E10
82715-52E20
82715-52E30
82715-52J90
82715-52K70
91671-80610
91671-80612
91671-80614
91671-80816
94151-80600
Linked diagrams
1104

ILLUST NO. 5 OF 7(0601- )

Click highlighted areas on diagram

FLOOR & ROOF

diagram 8121 82161 82171 82186 82345A 82817A 82824F 9011906915 9011906915 9011906915
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-52L90

NCP9#..LHD

 1
82161-52Y80

NCP9#..LHD

 1
82161-52Y81

NCP9#..LHD

POWER DOOR LOCK-WITH&HIGH MOUNT STOP LAMP-WITH(LED TYPE)

 1
82161-5CN10

NCP9#..LHD

POWER DOOR LOCK-WITH

 1
82161-5CN00

NCP9#..LHD

PART NUMBER LABEL=82161-5CN00

 1
82161-52Y81

NCP9#..LHD

PART NUMBER LABEL=82161-52Y81

 1
82161-5CN00

NCP9#..LHD

 1
82161-52L90

NCP9#..LHD

PART NUMBER LABEL=82161-52L90

 1
82161-5CN10

NCP9#..LHD

PART NUMBER LABEL=82161-5CN10

 1
82161-52Y80

NCP9#..LHD

PART NUMBER LABEL=82161-52Y80

 1
82171 - WIRE, ROOF, NO.1
82171-52340

NCP9#

PART NUMBER LABEL=82171-52340

 1
82171-52340

NCP9#

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-52121

NCP9#..GCC,GEN

REAR WINDOW DEFOGGER-WITH

 1
82186-52120

NCP9#..GCC,GEN

REAR WINDOW DEFOGGER-WITH

 1
82345A - DIODE
82345-32010

NCP9#

 1
82345-32010

NCP9#

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52710

NCP9#

 1
82817-52710

NCP9#

 1
82824F - CONNECTOR, WIRING HARNESS
82824-44030

NCP9#

 1
82824-44030

NCP9#

 1
Common parts
90119-06915
Linked diagrams
8121

ILLUST NO. 7 OF 7(0601- )

Click highlighted areas on diagram

CONNECTOR

diagram 8282452050 8282460460 9098010619 9098010942 9098011016 9098011148 9098011148 9098011162 9098011314 9098011967
Part # Description Qty Price
Common parts
82824-52050
82824-60460
90980-10619
90980-10942
90980-11016
90980-11148
90980-11162
90980-11314
90980-11967
