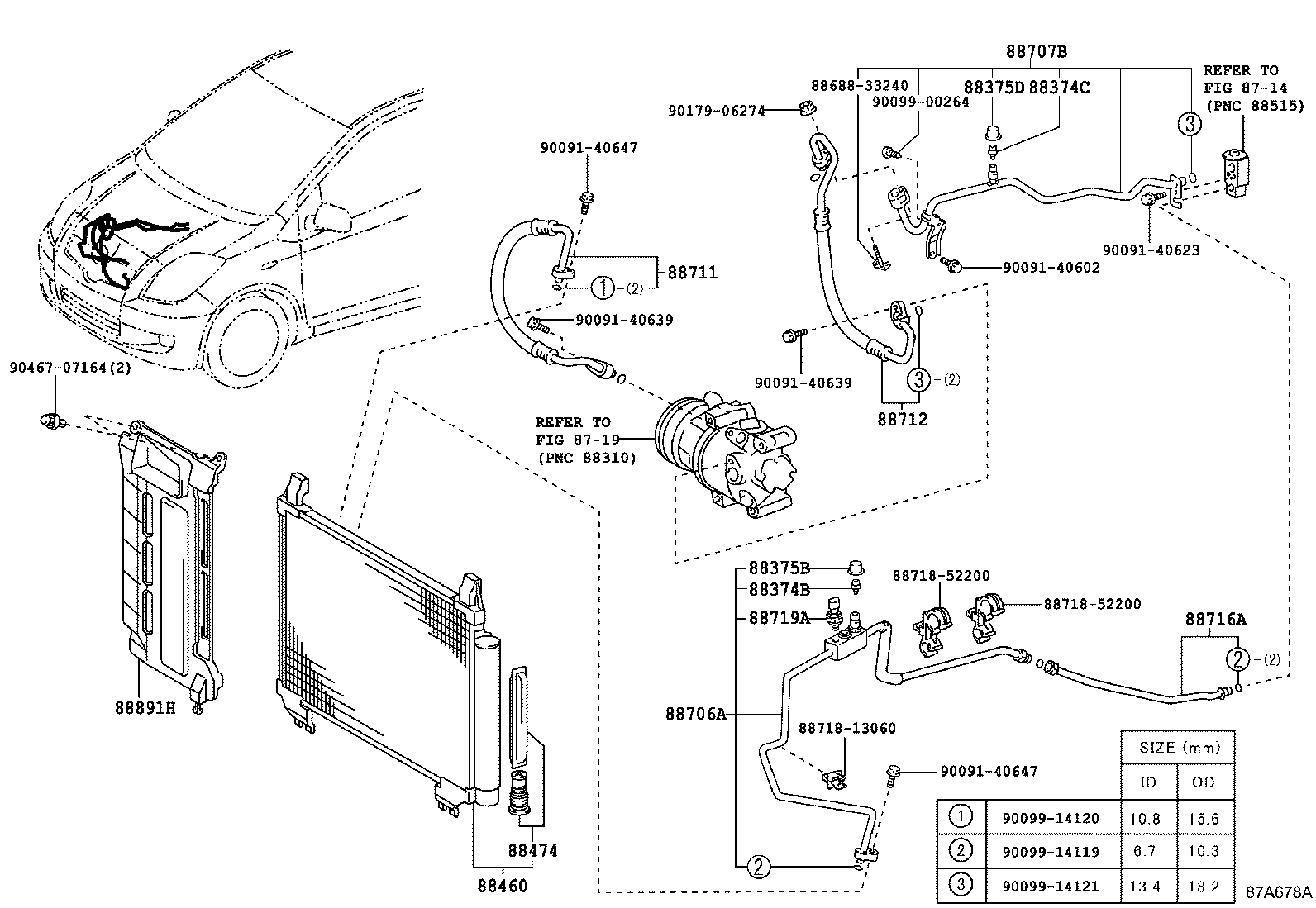

NCP91R-AGMRKQ (2008)
Toyota Yaris
(0508-1108)ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52110 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88460-52110 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-52130 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-52130 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88474-17010 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-12030 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-17010 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-52440 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88706-52450 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-52450 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-52440 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-52100 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-52100 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88707-52100 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88707-52100 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52260 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88711-52260 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88711-52260 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-52260 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-52280 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-52280 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88712-52280 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88712-52280 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-52050 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88891-52051 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88891-52050 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88891-52051 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| Common parts | ||||
| 88718-13060 | ||||
| 88718-52221 | ||||
| 88899-52061 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90467-07164 | ||||
| 91551-80625 | ||||
| 91551-80635 | ||||
| 91551-A0618 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(0808-0812)ARL
DEALER OPTIPN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52110 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88460-52110 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-52130 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88460-52130 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88474-17010 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-12030 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88474-17010 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-52440 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88706-52450 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-52450 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88706-52440 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-52100 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88707-52100 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88707-52100 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88707-52100 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52260 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88711-52260 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88711-52260 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88711-52260 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-52280 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88712-52280 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88712-52280 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88712-52280 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52510 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88716-52510 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-52050 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88891-52051 |
NCP9#..ARL AIR CONDITIONER-DEALER KIT |
1 | ||
| 88891-52050 |
NCP9#..ARL;NCP90..LHD..GEN AIR CONDITIONER-DEALER KIT |
1 | ||
| 88891-52051 |
NCP9#..ARL,GEN AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| Common parts | ||||
| 88688-33240 | ||||
| 88718-13060 | ||||
| 88718-52200 | ||||
| 90091-40602 | ||||
| 90091-40623 | ||||
| 90091-40639 | ||||
| 90091-40647 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06274 | ||||
| 90467-07164 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
