NCP90R-AHPRK (2005)
Toyota Yaris
Production
Aug 2005
-
Aug 2008
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0508- )

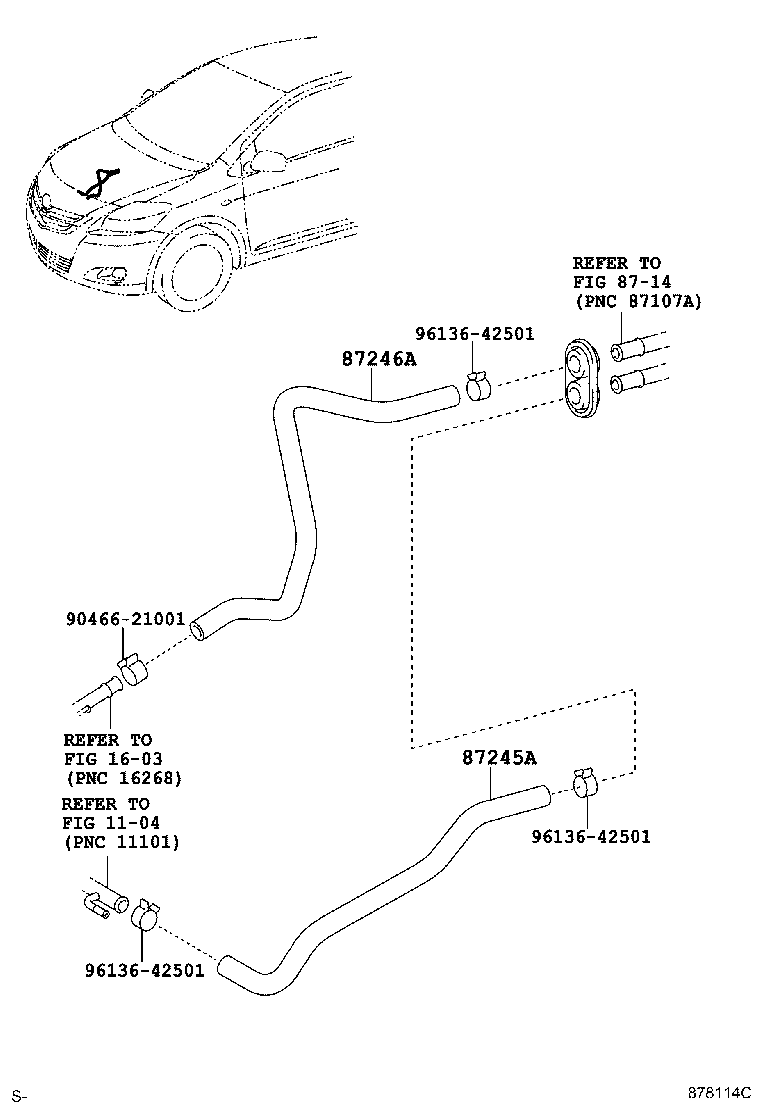

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-52080 |
NCP9#..ARL,GEN |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-52100 |
NCP9#..ARL,GEN |
1 | ||
| Common parts | ||||
| 87128-52010 | ||||
| 90339-16001 | ||||
| 90466-21001 | ||||
| 90480-01696 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
(0601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90466-21001 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
