NCP90R-AHPRK (2005)

Toyota Yaris

Production Aug 2005 - Aug 2008
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0508- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67601 67602 67711 67712 67719 68171B 68172A 9018906130 9046709203 9046709206 9046709206 9046710161 9046710161 9046710161 9046710161 9356055025
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-52U30B0

NCP9#..RHD..5D

BLACK,TRIM1#

 1
67610-52U60B1

NCP9#..RHD..5D

POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,BLACK,TRIM1#

 1
67610-52U50B0

NCP9#..RHD..5D

POWER DOOR LOCK-WITH,BLACK,TRIM1#

 1
67610-52U40B1

NCP90..RHD..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-RADIOLESS 4SPEAKER MULTI,BLACK,TRIM1#

 1
67610-52U40B1

NCP9#..RHD..5D

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,BLACK,TRIM1#

 1
67610-52U60B1

NCP90..RHD..GEN

POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-RADIOLESS 4SPEAKER MULTI,BLACK,TRIM1#

 1
67610-52U50B0

NCP90..RHD..GEN

POWER DOOR LOCK-WITH&AUDIO-RADIOLESS 4SPEAKER MULTI,BLACK,TRIM1#

 1
67610-52U60B1

NCP90..RHD..GEN

POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-AM/FM CASSETTE 4SPEAKER 9KHZ MULTI,BLACK,TRIM1#

 1
67610-52U50B0

NCP90..RHD..GEN

POWER DOOR LOCK-WITH&AUDIO-AM/FM CASSETTE 4SPEAKER 9KHZ MULTI,BLACK,TRIM1#

 1
67610-52U40B1

NCP90..RHD..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-AM/FM CASSETTE 4SPEAKER 9KHZ MULTI,BLACK,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-52N40B1

NCP9#..RHD..5D

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,BLACK,TRIM1#

 1
67620-52N60B1

NCP9#..RHD..5D

POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,BLACK,TRIM1#

 1
67620-52N60B1

NCP90..RHD..GEN

POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-RADIOLESS 4SPEAKER MULTI,BLACK,TRIM1#

 1
67620-52N30B0

NCP9#..RHD..5D

BLACK,TRIM1#

 1
67620-52N40B1

NCP90..RHD..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-RADIOLESS 4SPEAKER MULTI,BLACK,TRIM1#

 1
67620-52N50B0

NCP9#..RHD..5D

POWER DOOR LOCK-WITH,BLACK,TRIM1#

 1
67620-52N50B0

NCP90..RHD..GEN

POWER DOOR LOCK-WITH&AUDIO-RADIOLESS 4SPEAKER MULTI,BLACK,TRIM1#

 1
67620-52N50B0

NCP90..RHD..GEN

POWER DOOR LOCK-WITH&AUDIO-AM/FM CASSETTE 4SPEAKER 9KHZ MULTI,BLACK,TRIM1#

 1
67620-52N60B1

NCP90..RHD..GEN

POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-AM/FM CASSETTE 4SPEAKER 9KHZ MULTI,BLACK,TRIM1#

 1
67620-52N40B1

NCP90..RHD..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-AM/FM CASSETTE 4SPEAKER 9KHZ MULTI,BLACK,TRIM1#

 1
67711 - COVER, FRONT DOOR TRIM, RH
67711-52020B0

NCP9#

DK.GRAY,TRIM18,19

 1
67712 - COVER, FRONT DOOR TRIM, LH
67712-52020B0

NCP9#

DK.GRAY,TRIM18,19

 1
67719 - COVER, FRONT DOOR TRIM COVER
67719-52010

NCP9#

 2
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-52150

NCP9#..5D

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-52050

NCP9#..5D

 1
Common parts
90189-06130
90467-09203
90467-09206
90467-10161
93560-55025

ILLUST NO. 3 OF 3(0508- )

Click highlighted areas on diagram

TRIM CODE

diagram
Part # Description Qty Price

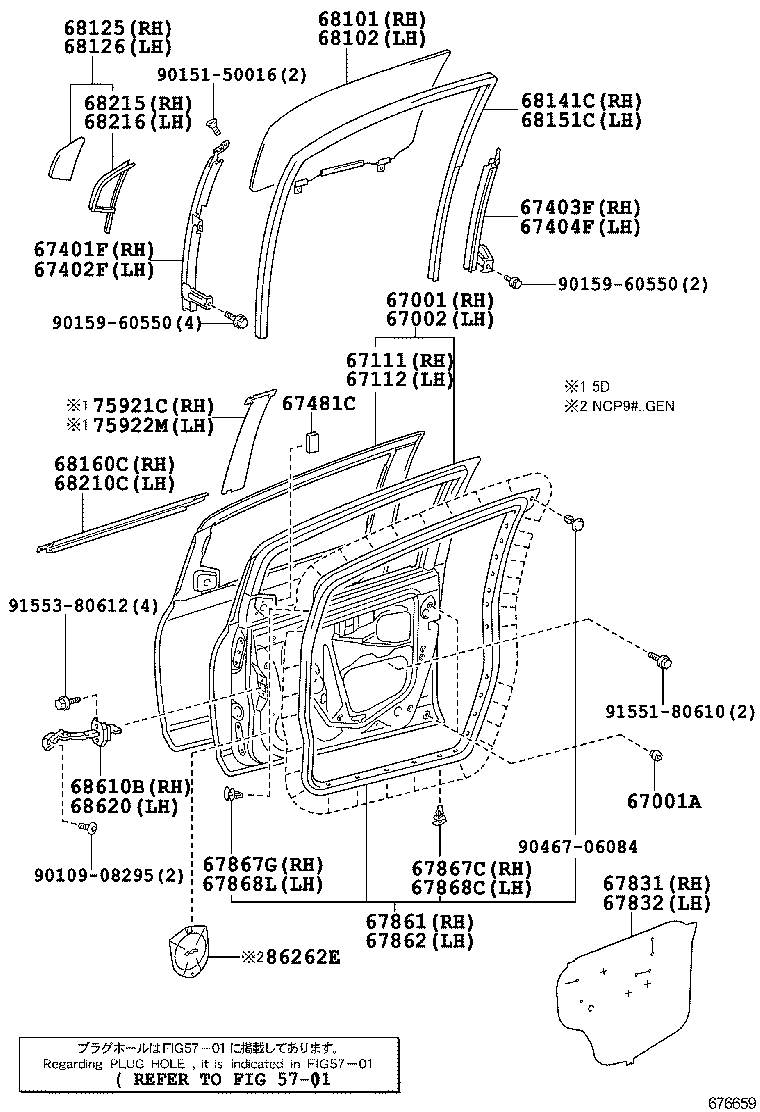

ILLUST NO. 1 OF 3(0508- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 67001 67001A 67002 67111 67112 67401F 67402F 67403F 67404F 67481C 67831 67832 67861 67862 67867C 67867G 67868C 67868L 68101 68102 68125 68126 68141C 68151C 68160C 68210C 68215 68216 68610B 68620 75921C 75922M 86262E 9010908295 9015150016 9015960550 9015960550 9046706084 9155180610 9155380612
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-52260

NCP9#..5D

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09137

NCP9#

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-52340

NCP9#..5D

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-52150

NCP9#..5D

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-52100

NCP9#..5D

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-52090

NCP9#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-52060

NCP9#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-52160

NCP9#..5D

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-52130

NCP9#..5D

 1
67481C - SEAL, FRONT DOOR FRONT LOWER FRAME
67481-52010

NCP9#

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-52280

NCP9#..5D

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-52280

NCP9#..5D

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-52151

NCP9#..5D

 1
67861-52150

NCP9#..5D

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-52151

NCP9#..5D

 1
67862-52150

NCP9#..5D

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

NCP9#..5D

 24
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52010

NCP9#..5D

 10
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

NCP9#..5D

 24
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52020

NCP9#..5D

 10
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68110-52180

NCP9#..5D

*UVCT,T=3.5,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68120-52180

NCP9#..5D

*UVCT,T=3.5,GREEN

 1
68125 - GLASS, FRONT DOOR FIX WINDOW, RH
68101-52030

NCP9#

*UVCT,T=3.5,GREEN

 1
68101-52031

NCP9#

*UVCT,T=3.5,GREEN

 1
68126 - GLASS, FRONT DOOR FIX WINDOW, LH
68102-52020

NCP9#

*UVCT,T=3.5,GREEN

 1
68102-52021

NCP9#

*UVCT,T=3.5,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-52170

NCP9#..5D

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-52150

NCP9#..5D

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-52110

NCP9#..5D

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68210-52110

NCP9#..5D

 1
68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68215-52010

NCP9#

 1
68215-52011

NCP9#

 1
68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68216-52010

NCP9#

 1
68216-52011

NCP9#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-52100

NCP9#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-52100

NCP9#

 1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-52070

NCP9#..5D

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-52070

NCP9#..5D

 1
86262E - COVER, SPEAKER, FRONT
86262-52010

NCP90..GEN

 2
Common parts
90109-08295
90151-50016
90159-60550
90467-06084
91551-80610
91553-80612
Linked diagrams
5701

ILLUST NO. 1 OF 3(0601- )

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 67001 67002 67111 67112 67401F 67402F 67403F 67404F 67489B 67489B 67831 67832 67861 67861A 67862 67867C 67868C 67923 67924 68101 68102 68141B 68141C 68151C 68160C 68210C 68610B 68620 75921C 75922M 9010506260 9010908295 9015960550 9015960550 9046706084 9054109137 9155380620 9167380616
Part # Description Qty Price
Common parts
90105-06260
90109-08295
90159-60550
90467-06084
90541-09137
91553-80620
91673-80616
Linked diagrams
5701

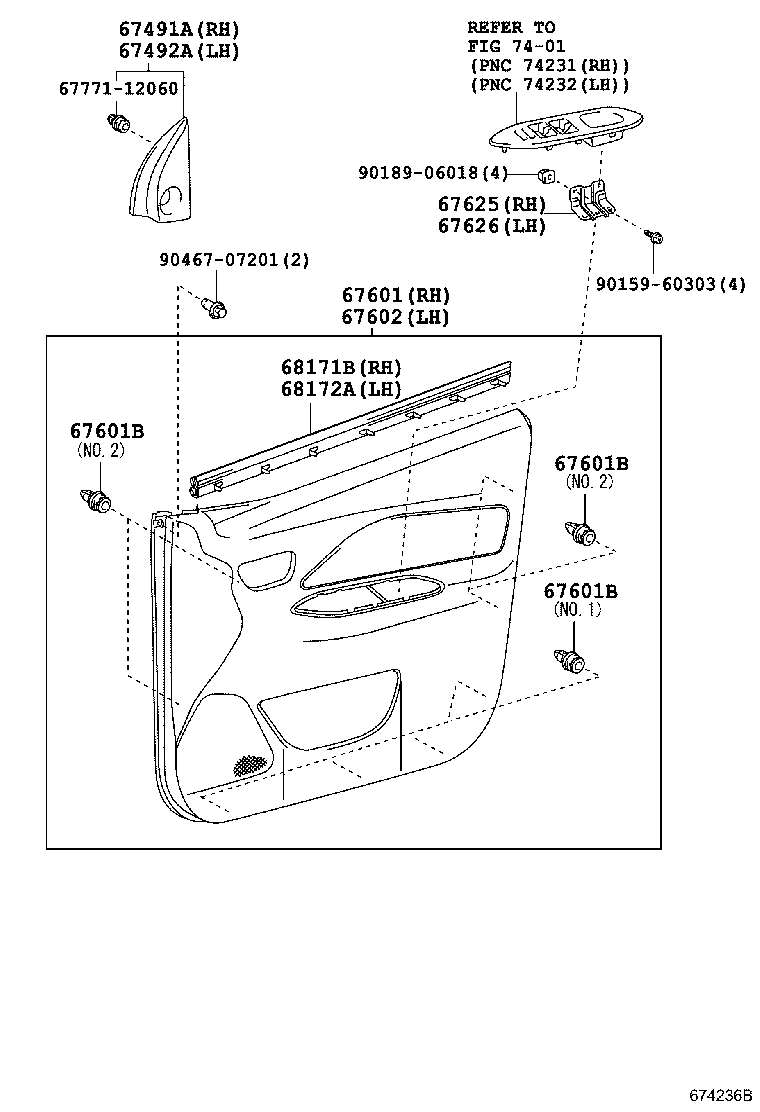

ILLUST NO. 2 OF 3(0601- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67491A 67492A 67601 67601B 67601B 67601B 67602 67625 67626 6777112060 68171B 68172A 7401 9015960303 9018906018 9046707201
Part # Description Qty Price
Common parts
67771-12060
90159-60303
90189-06018
90467-07201
Linked diagrams
7401

ILLUST NO. 3 OF 3(0601-0808)

Click highlighted areas on diagram

TRIM CODE

diagram
Part # Description Qty Price
