NCP90R-AHPRK (2005)
Toyota Yaris
Production
Aug 2005
-
Aug 2008
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0508-0808)ARL,GEN

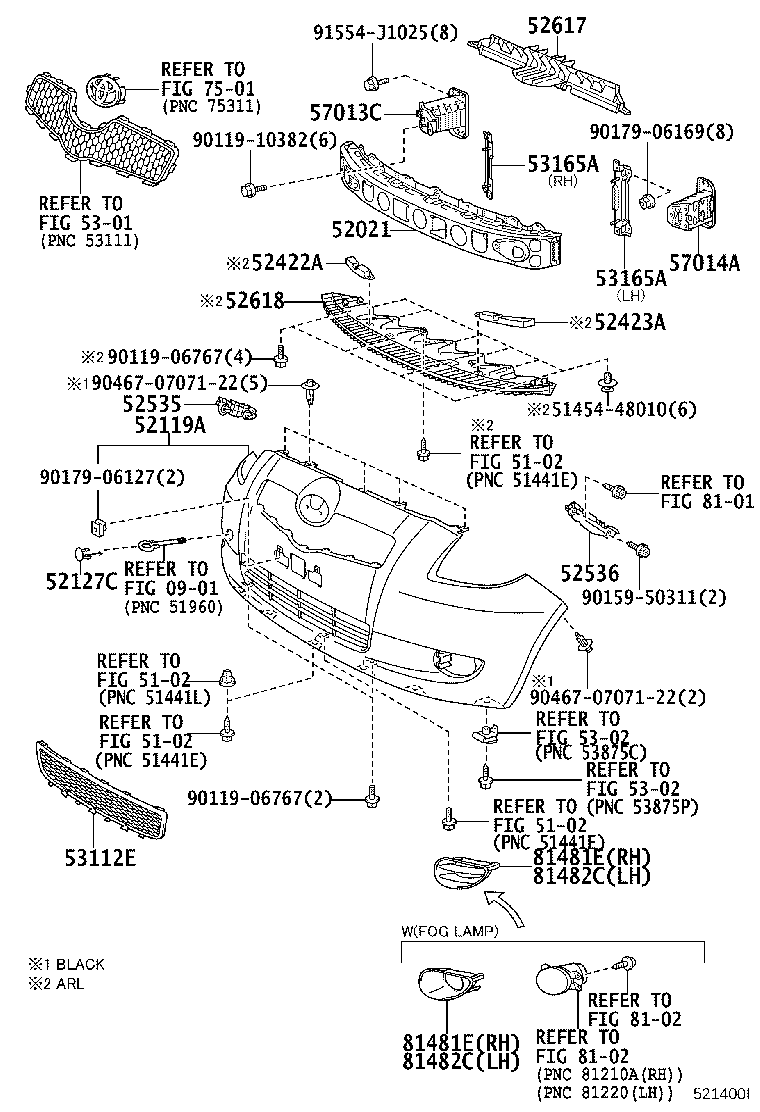

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-52050 |
NCP9#..ARL,GEN |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-52922 |
NCP9#..ARL,GEN PAINT REQ. |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-52907 |
NCP9#..ARL,GEN |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-52060 |
NCP9# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-52050 |
NCP9# |
1 | ||
| 52617 - ABSORBER, RADIATOR SUPPORT, UPPER | ||||
| 52617-52020 |
NCP9# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-52160 |
NCP9#..ARL,GEN NO PAINT REQ. |
1 | ||
| 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 | ||||
| 53164-52010 |
NCP9#..ARL,GEN RH |
1 | ||
| 53165-52020 |
NCP9#..ARL,GEN LH |
1 | ||
| 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 | ||||
| 53164-52010 |
NCP9#..ARL,GEN RH |
1 | ||
| 53165-52020 |
NCP9#..ARL,GEN LH |
1 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-52010 |
NCP9#..ARL,GEN |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-52010 |
NCP9#..ARL,GEN |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-52110 |
NCP9# |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-52110 |
NCP9# |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-52100 |
NCP9# |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-52100 |
NCP9# |
1 | ||
| Common parts | ||||
| 51454-48010 | ||||
| 90119-06767 | ||||
| 90119-10382 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 90179-06169 | ||||
| 90467-0707122 | ||||
| 91554-J1025 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 7501 | ||||
| 8101 | ||||
| 8102 | ||||
(0601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06767 | ||||
| 90119-10382 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90179-06169 | ||||
| 90467-0707122 | ||||
| 91554-J1025 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 7501 | ||||
| 8101 | ||||
| 8102 | ||||
