NCP90R-AHPRK (2005)
Toyota Yaris
Production
Aug 2005
-
Aug 2008
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

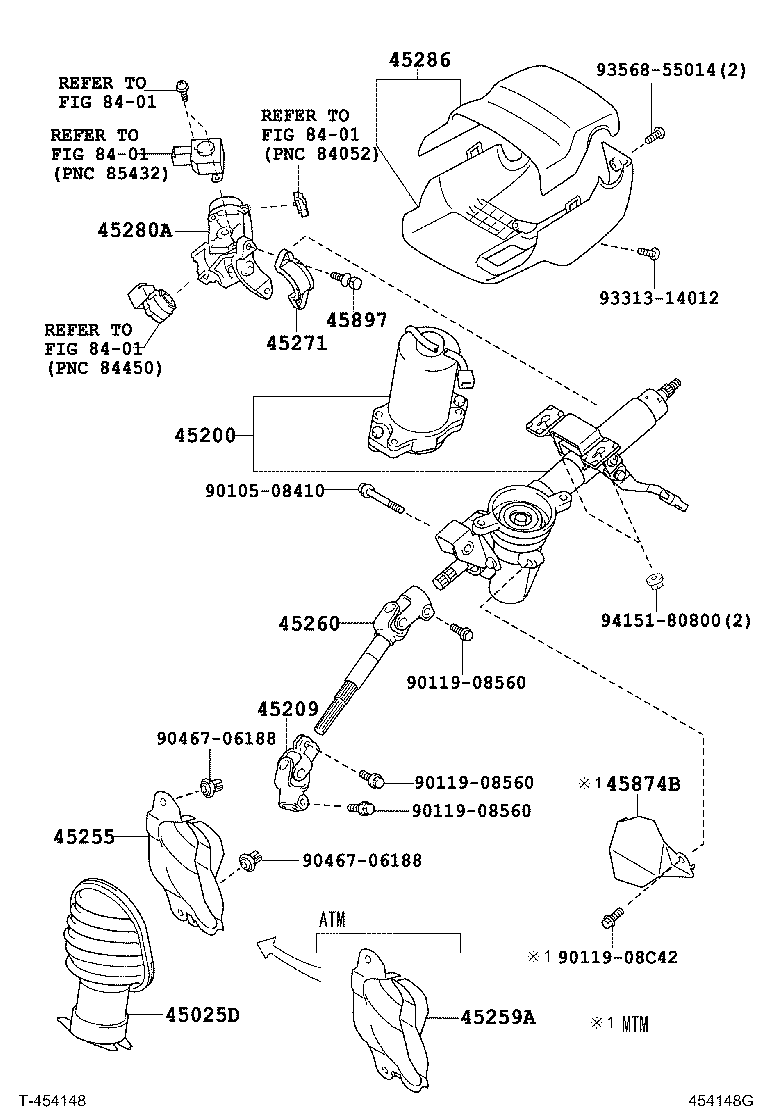

(0508- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52140 |
NCP9# |
1 | ||
| 45200 - POST ASSY, STEERING | ||||
| 45200-52280 |
NCP9#..RHD STEERING COLUMN-TILT & TELESCO(EPS) |
1 | ||
| 45200-52261 |
NCP9#..RHD |
1 | ||
| 45200-52281 |
NCP9#..RHD STEERING COLUMN-TILT & TELESCO(EPS) |
1 | ||
| 45200-52260 |
NCP9#..RHD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-52040 |
NCP9# |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-52010 |
NCP9#..RHD..4FC |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-52170 |
NCP9#..RHD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52030 |
NCP9# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-22510 |
NCP9#..4FC |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-52929B0 |
NCP9# DK.GRAY,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NCP9# |
2 | ||
| Common parts | ||||
| 90105-08410 | ||||
| 90119-08560 | ||||
| 90119-08C42 | ||||
| 90467-06188 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

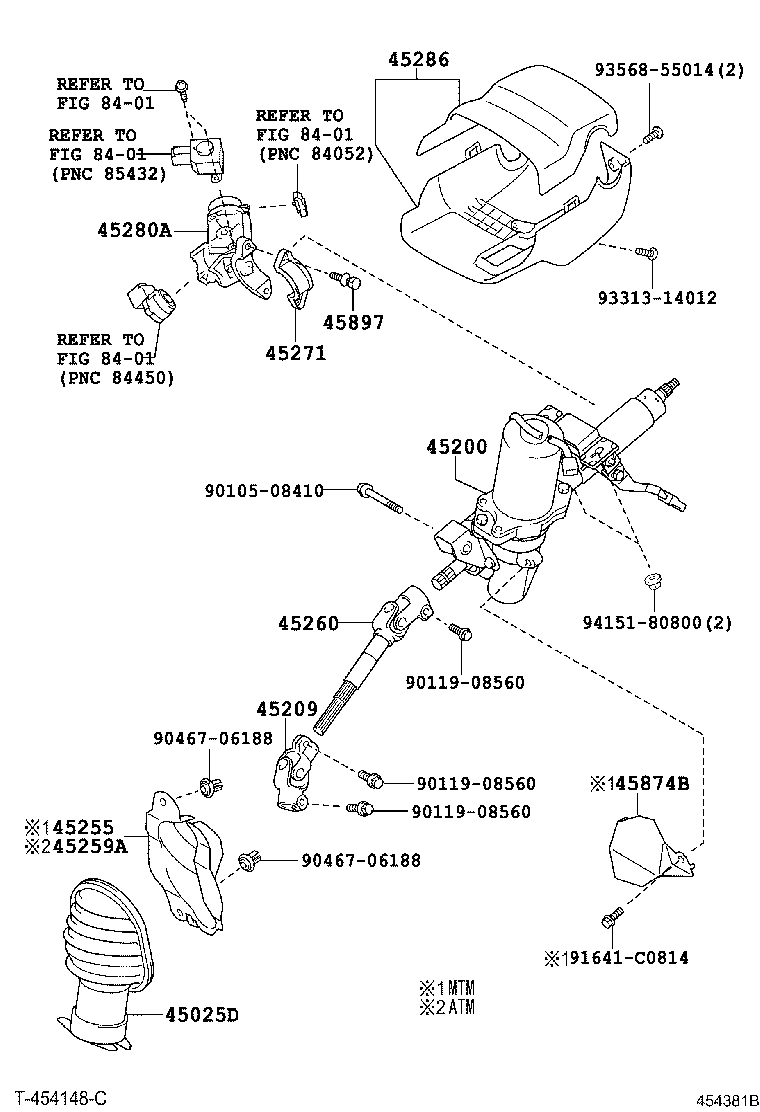

(0601- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08410 | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 91641-C0814 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
