NCP90L-AHPRKV (2008)

Toyota Yaris

Production Aug 2008 - Aug 2011
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )NCP90 ; (0508- )NCP91..LHD

Click highlighted areas on diagram

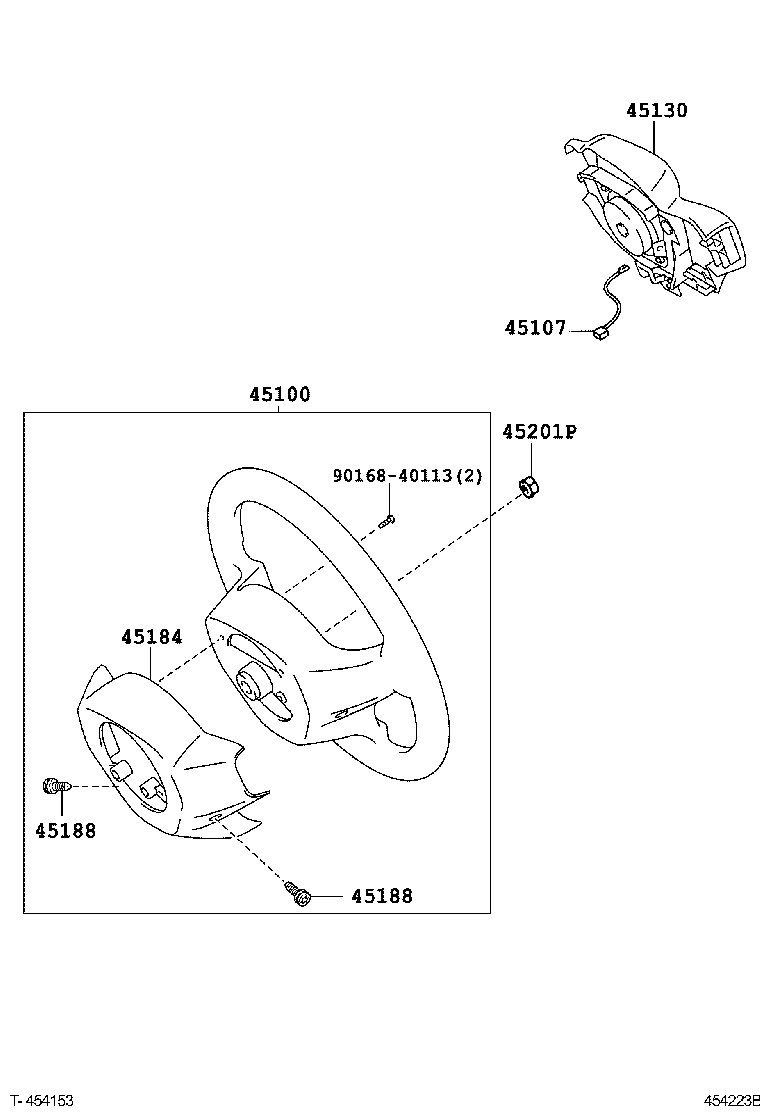

3-SPOKE

diagram 45100 45107 45130 45184 45188 45188 45201P 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-52331B0

NCP91..GCC;NCP90..LHD..5D

3-SPOKE,LEATHER,AUDIO-AM/FM CD 4SPEAKER 9KHZ 200*100,DK.GRAY,TRIM1#

 1
45100-52321B0

NCP90;NCP91..LHD

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45100-52321B0

NCP90

3-SPOKE,URETHANE,DK.GRAY,TRIM18,19

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-48010

NCP90

 1
45107-48010

NCP91..GCC;NCP90..LHD..5D

AUDIO-AM/FM CD 4SPEAKER 9KHZ 200*100

 1
45107-48010

NCP9#..GCC

AUDIO-RADIOLESS 4SPEAKER MULTI

 1
45107-48010

NCP90;NCP91..LHD

 1
45130 - BUTTON ASSY, HORN
45130-52350B0

NCP90;NCP91..LHD

DK.GRAY,TRIM1#

 1
45130-52350B0

NCP90

DK.GRAY,TRIM18,19

 1
45130-52360B0

NCP91..GCC;NCP90..LHD..5D

AUDIO-AM/FM CD 4SPEAKER 9KHZ 200*100,DK.GRAY,TRIM1#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-52090B0

NCP9#

DK.GRAY,TRIM1#

 1
45184-52090B0

NCP9#

DK.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCP9#

L=18

 2
45188-60010

NCP9#

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCP9#

L=18

 2
45188-60010

NCP9#

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

NCP9#

 1
90179-12071

NCP9#

 1
Common parts
90168-40113

(0508- )ARL,GCC ; (0508- )NCP90..LHD..5D..GEN

Click highlighted areas on diagram

3-SPOKE,W(STEERING AUDIO SWITCH)

diagram 45100 45116 45130 45184 45188 45188 45201P 8401 8401 8401 8401 8401 9015950199 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-52331B0

NCP91..GCC;NCP90..LHD..5D

3-SPOKE,LEATHER,AUDIO-AM/FM CD 4SPEAKER 9KHZ 200*100,DK.GRAY,TRIM1#

 1
45100-52321B0

NCP90;NCP91..LHD

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45100-52321B0

NCP90

3-SPOKE,URETHANE,DK.GRAY,TRIM18,19

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-52040B2

NCP90..LHD..5D

AUDIO-AM/FM CD 4SPEAKER 9KHZ 200*100,SILVER,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-52350B0

NCP90;NCP91..LHD

DK.GRAY,TRIM1#

 1
45130-52350B0

NCP90

DK.GRAY,TRIM18,19

 1
45130-52360B0

NCP91..GCC;NCP90..LHD..5D

AUDIO-AM/FM CD 4SPEAKER 9KHZ 200*100,DK.GRAY,TRIM1#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-52090B0

NCP9#

DK.GRAY,TRIM1#

 1
45184-52090B0

NCP9#

DK.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCP9#

L=18

 2
45188-60010

NCP9#

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

NCP9#

L=18

 2
45188-60010

NCP9#

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

NCP9#

 1
90179-12071

NCP9#

 1
Common parts
90159-50199
90168-40113
Linked diagrams
8401

(0601- )

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45107 45116 45116 45117 45130 45130 45130 45184 45188 45188 45201P 8401 8401 9015950199 9015950199 9015950199 9016840113
Part # Description Qty Price
Common parts
90159-50199
90168-40113
Linked diagrams
8401
