NCP90L-AGPRK (2008)

Toyota Yaris

Production Aug 2008 - Aug 2011
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0508- )

Click highlighted areas on diagram

REAR SEAT BELT(CENTER = 3 POINT)

diagram 73139A 73143 73143 73330C 73340C 73350C 73360 73370 73371 73371 73373 73380A 73390C 73470B 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053
Part # Description Qty Price
73139A - COVER, SEAT BELT ANCHOR
73139-52040B1

NCP90..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM18,19

 1
73139-52040B1

NCP9#..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM1#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP9#

 2
73143-52010

NCP9#

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP9#

 2
73143-52010

NCP9#

 2
73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH
73330-52050C0

NCP9#..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,BLACK,TRIM1#

 1
73330-52050C0

NCP90..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,BLACK,TRIM18,19

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-52030C0

NCP90..GEN

BLACK,TRIM1#

 1
73340-52030C0

NCP9#

BLACK,TRIM1#

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73310-52030C0

NCP90..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,BLACK,TRIM1#

 1
73310-52030C0

NCP9#..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52211C2

NCP90..GEN

BLACK,TRIM1#

 1
73360-52211C2

NCP9#

BLACK,TRIM1#

 1
73360-52212C2

NCP9#

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52161C2

NCP90..GEN

BLACK,TRIM1#

 1
73370-52161C2

NCP9#

BLACK,TRIM1#

 1
73370-52162C2

NCP9#

BLACK,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020P0

NCP9#

GRAY,TRIM18,19

 2
73371-44020P0

NCP9#

GRAY,TRIM1#

 2
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020P0

NCP9#

GRAY,TRIM18,19

 2
73371-44020P0

NCP9#

GRAY,TRIM1#

 2
73373 - COVER, REAR SEAT SHOULDER BELT
73137-52020B0

NCP90..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM18,19

 1
73137-52020B0

NCP9#..GEN

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM1#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-52030C0

NCP90..GEN

BLACK,TRIM1#

 1
73380-52030C0

NCP9#

BLACK,TRIM1#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-52010C0

NCP9#

BLACK,TRIM1#

 1
73390-52010C0

NCP90..GEN

BLACK,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52280C0

NCP90..GEN

BLACK,TRIM1#

 1
73470-52280C0

NCP9#..GEN

BLACK,TRIM1#

 1
Common parts
90105-11053

ILLUST NO. 1 OF 2(0508- )3D

Click highlighted areas on diagram

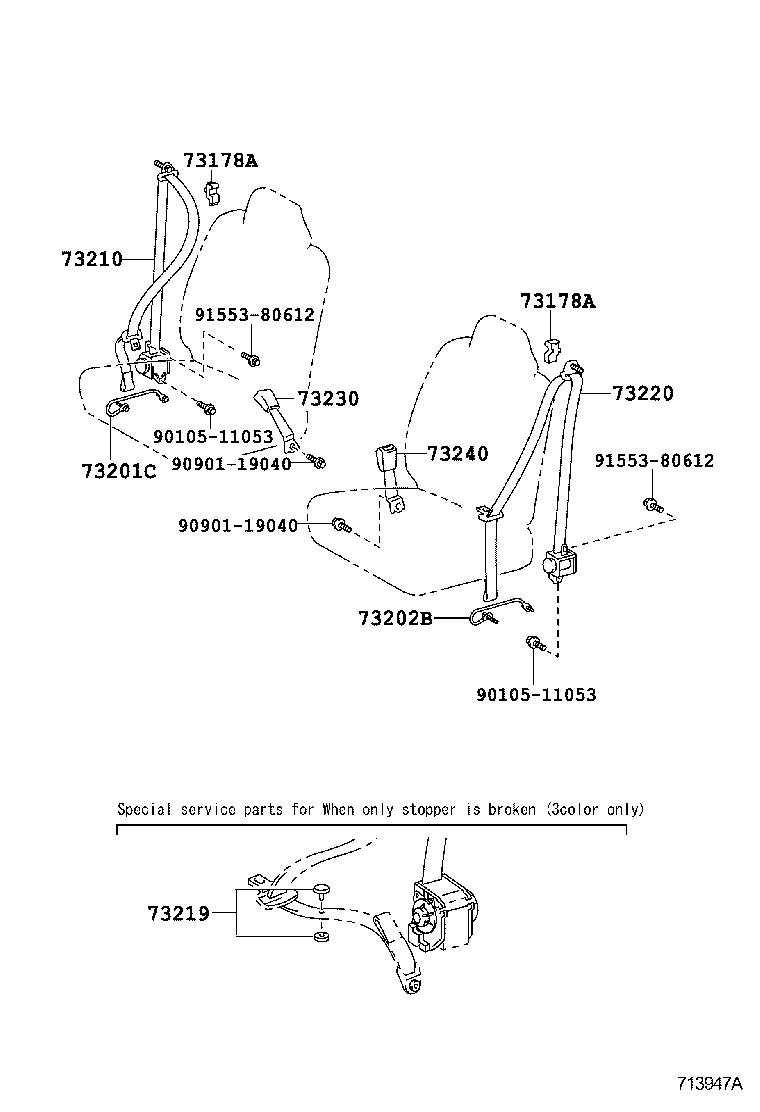

FRONT SEAT BELT

diagram 73178A 73178A 73201C 73202B 73210 73219 73220 73230 73240 9010511053 9010511053 9090119040 9090119040 9155380612 9155380612
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-52060B1

NCP9#..3D

GRAY,TRIM18,19

 2
73178-52060B1

NCP9#..3D

GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-52060B1

NCP9#..3D

GRAY,TRIM18,19

 2
73178-52060B1

NCP9#..3D

GRAY,TRIM1#

 2
73201C - BAR SUB-ASSY, FRONT SEAT BELT, OUTER RH
73201-52020B0

NCP9#..3D

DK.GRAY,TRIM18,19

 1
73201-52020B0

NCP9#..3D

DK.GRAY,TRIM1#

 1
73202B - BAR SUB-ASSY, FRONT SEAT BELT, OUTER LH
73202-52020B0

NCP9#..3D

DK.GRAY,TRIM18,19

 1
73202-52020B0

NCP9#..3D

DK.GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52490C0

NCP9#..3D

BLACK,TRIM1#

 1
73210-52490C0

NCP9#..3D

BLACK,TRIM18,19

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

NCP9#

BLACK

 1
73219-33020

NCP9#

GRAY

 1
73219-33010

NCP9#

BLACK

 1
73219-33030

NCP9#

BEIGE

 1
73219-33020

NCP9#

GRAY

 1
73219-33030

NCP9#

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52550C0

NCP9#..3D

BLACK,TRIM18,19

 1
73220-52550C0

NCP9#..3D

BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52510B0

NCP90..GEN

DK.GRAY,TRIM18,19

 1
73230-52510B0

NCP9#..GEN

DK.GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52510B0

NCP9#..GEN

DK.GRAY,TRIM1#

 1
73230-52510B0

NCP90..GEN

DK.GRAY,TRIM18,19

 1
Common parts
90105-11053
90901-19040
91553-80612

ILLUST NO. 2 OF 2(0508- )GEN

Click highlighted areas on diagram

REAR SEAT BELT(CENTER = 2 POINT)

diagram 73143 73143 73143 73143 73340C 73360 73360 73370 73370 73371 73371 73371 73371 73380A 73390C 73470B 73470B 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053
Part # Description Qty Price
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP9#

 2
73143-52010

NCP9#

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP9#

 2
73143-52010

NCP9#

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP9#

 2
73143-52010

NCP9#

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP9#

 2
73143-52010

NCP9#

 2
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-52030C0

NCP90..GEN

BLACK,TRIM1#

 1
73340-52030C0

NCP9#

BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52211C2

NCP90..GEN

BLACK,TRIM1#

 1
73360-52211C2

NCP9#

BLACK,TRIM1#

 1
73360-52212C2

NCP9#

BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52211C2

NCP90..GEN

BLACK,TRIM1#

 1
73360-52211C2

NCP9#

BLACK,TRIM1#

 1
73360-52212C2

NCP9#

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52161C2

NCP90..GEN

BLACK,TRIM1#

 1
73370-52161C2

NCP9#

BLACK,TRIM1#

 1
73370-52162C2

NCP9#

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52161C2

NCP90..GEN

BLACK,TRIM1#

 1
73370-52161C2

NCP9#

BLACK,TRIM1#

 1
73370-52162C2

NCP9#

BLACK,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020P0

NCP9#

GRAY,TRIM18,19

 2
73371-44020P0

NCP9#

GRAY,TRIM1#

 2
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020P0

NCP9#

GRAY,TRIM18,19

 2
73371-44020P0

NCP9#

GRAY,TRIM1#

 2
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020P0

NCP9#

GRAY,TRIM18,19

 2
73371-44020P0

NCP9#

GRAY,TRIM1#

 2
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020P0

NCP9#

GRAY,TRIM18,19

 2
73371-44020P0

NCP9#

GRAY,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-52030C0

NCP90..GEN

BLACK,TRIM1#

 1
73380-52030C0

NCP9#

BLACK,TRIM1#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-52010C0

NCP9#

BLACK,TRIM1#

 1
73390-52010C0

NCP90..GEN

BLACK,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52280C0

NCP90..GEN

BLACK,TRIM1#

 1
73470-52280C0

NCP9#..GEN

BLACK,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52280C0

NCP90..GEN

BLACK,TRIM1#

 1
73470-52280C0

NCP9#..GEN

BLACK,TRIM1#

 1
Common parts
90105-11053

ILLUST NO. 1 OF 2(0601- )

Click highlighted areas on diagram

FRONT SEAT

diagram 73135 73135 73178A 73178A 73200A 73200A 73210 7321475010 73220 73230 73233 73233 73240 9010510523 9010510523 9010510523 9010510523 9010511053 9010511053 9010911060 9010911060 9010911062 9010911062 9017911010 9017911010 9163140614 9163140614
Part # Description Qty Price
Common parts
73214-75010
90105-10523
90105-11053
90109-11060
90109-11062
90179-11010
91631-40614

ILLUST NO. 2 OF 2(0601- )

Click highlighted areas on diagram

REAR SEAT(FIXED)

diagram 73143 73143 73343 73344 73345 73360 73370 73439 73439 73439 73470B 73470B 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9356054012 9356054012 9356054012
Part # Description Qty Price
Common parts
90105-11053
93560-54012

ILLUST NO. 2 OF 2(0601- )

Click highlighted areas on diagram

REAR SEAT(SEPARATED)

diagram 73143 73143 73343 73344 73345 73360 73370 73390 73408 73439 73439 73439 73470B 73480 73719 73719 73719 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9356054012 9356054012 9356054012
Part # Description Qty Price
Common parts
90105-11053
93560-54012
