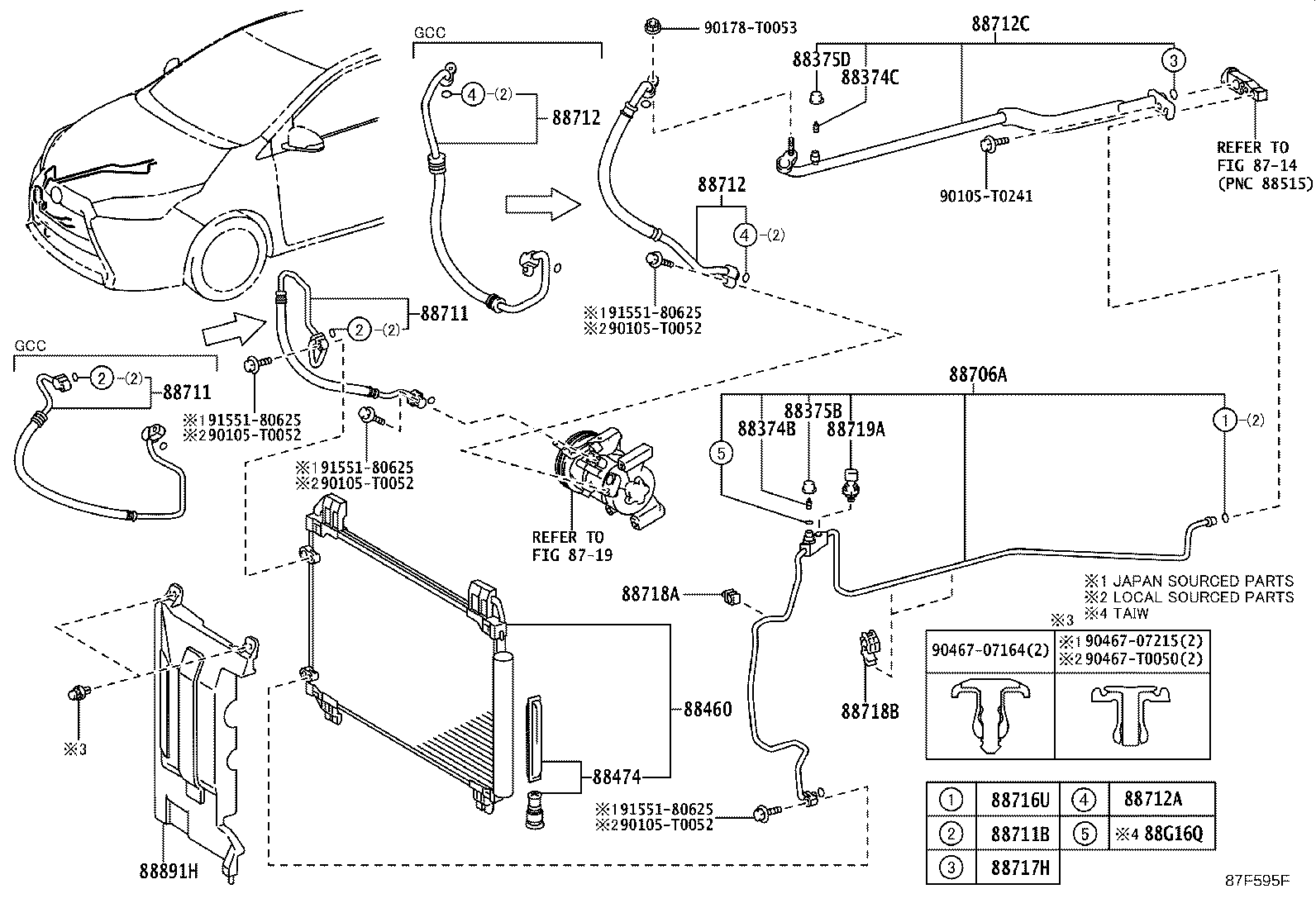

NCP151L-AHPRKV (2014)
Toyota Yaris
(1403- )NCP15#..GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-33010 |
NCP15#,NSP152..GCC,GEN,PH,TH,VN |
1 | ||
| 88374-33010 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 88374-30010 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 88375-30280 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 88375-30290 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0D310 |
NCP15#..GCC |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-0D120 |
NCP15#..GCC |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 88645-60030 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-0D510 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88706-0D530 |
NCP15#..GCC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0D420 |
NCP15#..GCC |
1 | ||
| 88711-0D400 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 90099-14120 |
NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 90099-14120 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0D520 |
NCP15#..GCC |
1 | ||
| 88712-0D500 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 90099-14121 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 90099-14121 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88707-0D300 |
NCP15#..GCC |
1 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 90099-14119 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) | ||||
| 90099-14121 |
NCP15#..GCC |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0D210 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 88718-0D210 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0D550 |
NCP15#..GCC |
2 | ||
| 88718-0D540 |
NCP151..D LATIN AMERICA SPEC |
2 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0D550 |
NCP15#..GCC |
2 | ||
| 88718-0D540 |
NCP151..D LATIN AMERICA SPEC |
2 | ||
| Common parts | ||||
| 88446-08030 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90178-T0053 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(1605- )NSP150,151..A,C ; (1709- )NSP152 ;(1804- )B,F,H
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-33010 |
NCP15#,NSP152..GCC,GEN,PH,TH,VN |
1 | ||
| 88374-33010 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 88374-30010 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 88375-30280 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 88375-30290 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0D310 |
NCP15#..GCC |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-0D510 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88706-0D530 |
NCP15#..GCC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0D420 |
NCP15#..GCC |
1 | ||
| 88711-0D400 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0D420 |
NCP15#..GCC |
1 | ||
| 88711-0D400 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 90099-14120 |
NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 90099-14120 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0D520 |
NCP15#..GCC |
1 | ||
| 88712-0D500 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0D520 |
NCP15#..GCC |
1 | ||
| 88712-0D500 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 90099-14121 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 90099-14121 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88707-0D300 |
NCP15#..GCC |
1 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 90099-14119 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) | ||||
| 90099-14121 |
NCP15#..GCC |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0D210 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 88718-0D210 |
NCP151..D LATIN AMERICA SPEC |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0D550 |
NCP15#..GCC |
2 | ||
| 88718-0D540 |
NCP151..D LATIN AMERICA SPEC |
2 | ||
| Common parts | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90178-T0053 | ||||
| 90467-07164 | ||||
| 90467-07215 | ||||
| 90467-T0050 | ||||
| 91551-80625 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
