NCP151L-AHPRKV (2014)
Toyota Yaris

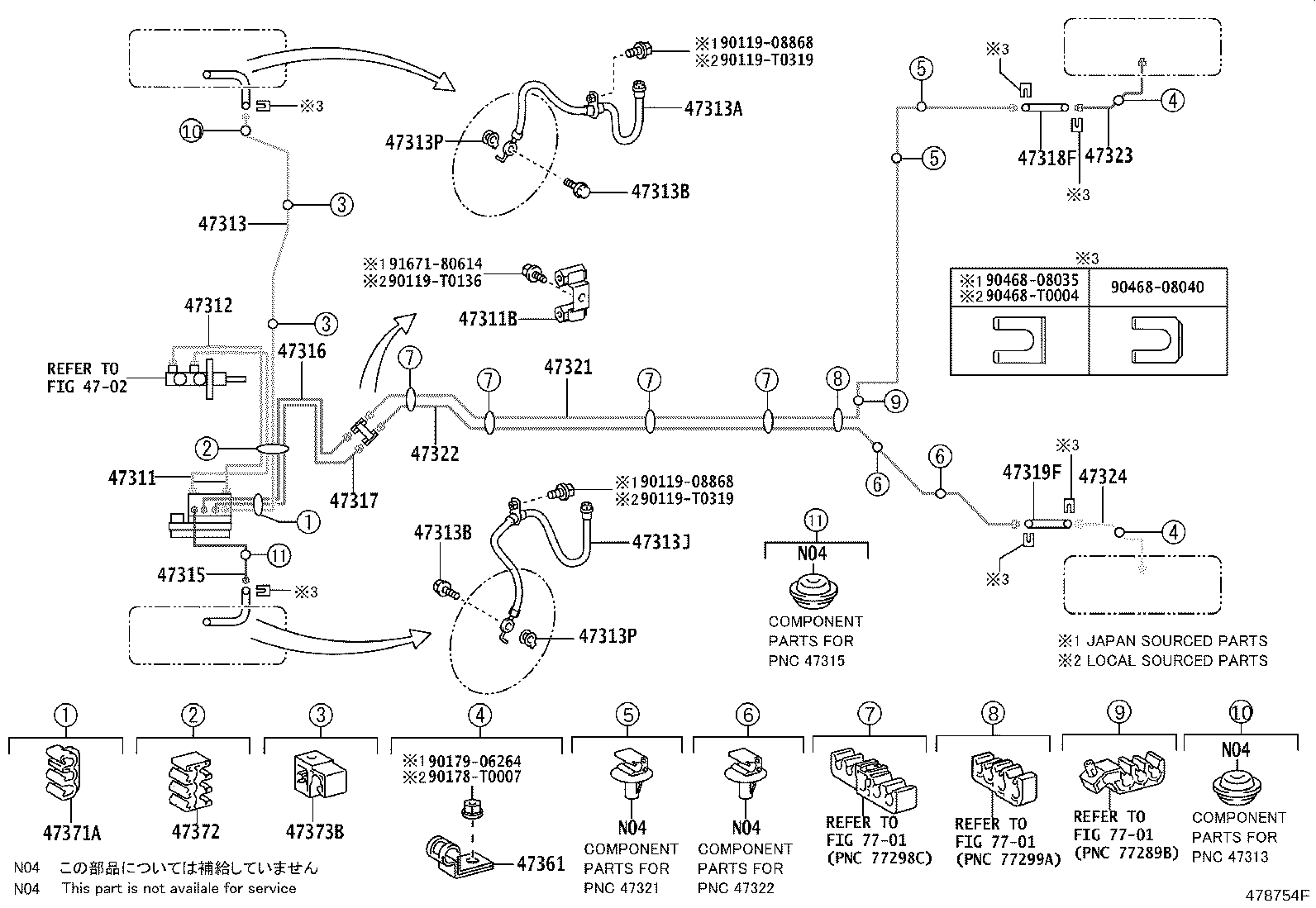

ILLUST NO. 1 OF 2(1403- )NCP151,NSP150..GCC..G ; (1403- )NCP150,NSP151..AGT,BZ,GCC,GEN ; (1403
BRAKE TUBE, W(ABS OR VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D570 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D500 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0D490 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2081 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP15#..GCC,GEN,PH,VN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NCP15#..GCC,GEN,PH,VN |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2082 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NCP15#..GCC,GEN,PH,VN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NCP15#..GCC,GEN,PH,VN |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D500 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D390 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D390 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2083 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2084 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D360 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D360 |
NCP15#..GCC,GEN,PH,VN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0D220 |
NCP151..GCC..G;NCP150..GCC,GEN;NCP151..(GCC,GEN,PH)..(D,R) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D220 |
NCP151..GCC..G;NCP150..GCC,GEN;NCP151..(GCC,GEN,PH)..(D,R) |
1 | ||
| 47361 - CLAMP, TUBE | ||||
| 90461-T0006 |
NCP15#..GCC,GEN,PH,VN |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D18 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0136 | ||||
| 90119-T0319 | ||||
| 90178-T0007 | ||||
| 90179-06264 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90468-T0004 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
ILLUST NO. 2 OF 2(1403- )LHD..ATM,MTM..AGT,BZ,GCC,GEN,PH,VN
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0D240 |
NCP15#..GCC |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0D180 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-T0199 | ||||
| 90119-T0325 | ||||
| 91631-60825 | ||||
ILLUST NO. 2 OF 2(1403- )B,C
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0D240 |
NCP15#..GCC |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
NCP15#..GCC,GEN,PH,VN |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0D180 |
NCP15#..LHD..(GCC,GEN,PH,VN) |
1 | ||
| Common parts | ||||
| 90119-T0199 | ||||
| 90119-T0325 | ||||
