NCP151L-AHMRK (2014)

Toyota Yaris

Production Mar 2014 - Jun 2016
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1403- )NCP15#

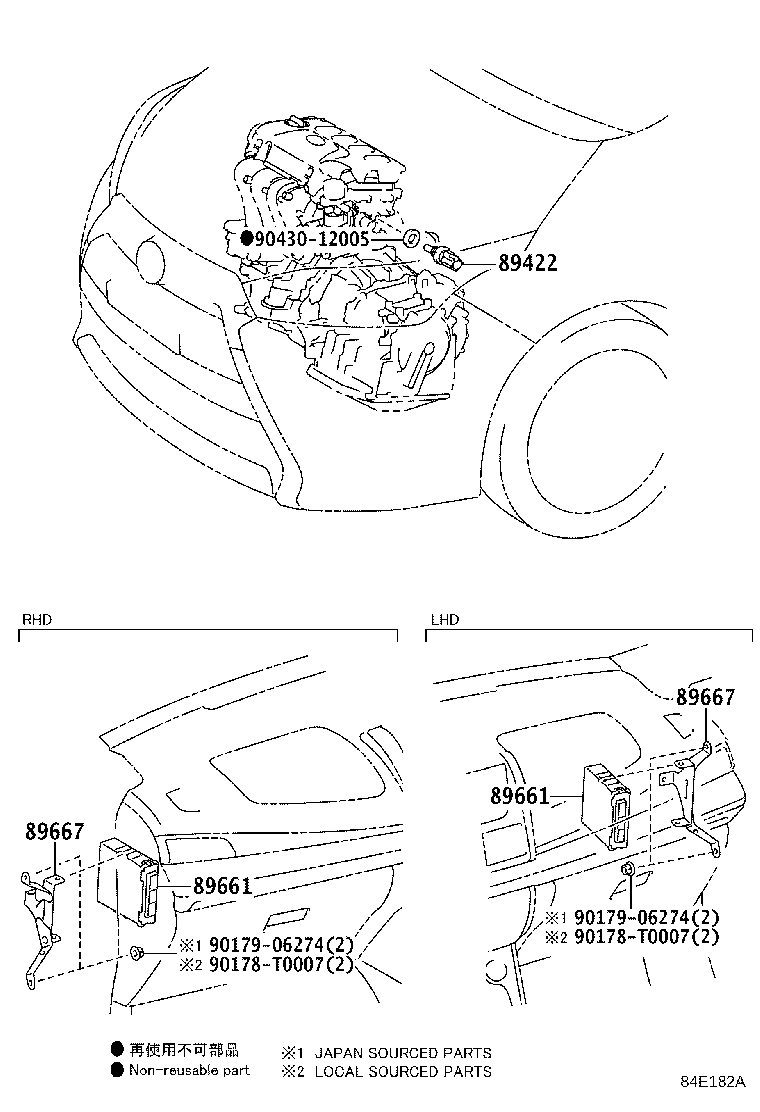

Click highlighted areas on diagram

diagram 89422 89661 89661 89667 89667 90178T0007 90178T0007 9017906274 9017906274 9043012005
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NCP15#..GCC,GEN,PH,VN

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0DL80

NCP151..5F

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0DL80

NCP151..5F

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0D250

NCP151..5F..G

*303

 1
89667-0D230

NCP151..LHD..5F

*303

 1
89667-0D160

NCP151..LHD..5F

*299

 1
89667-0D180

NCP151..5F..G

*299

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0D250

NCP151..5F..G

*303

 1
89667-0D230

NCP151..LHD..5F

*303

 1
89667-0D160

NCP151..LHD..5F

*299

 1
89667-0D180

NCP151..5F..G

*299

 1
Common parts
90178-T0007
90179-06274
90430-12005
