NCP151L-AHMRK (2014)

Toyota Yaris

Production Mar 2014 - Jun 2016
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

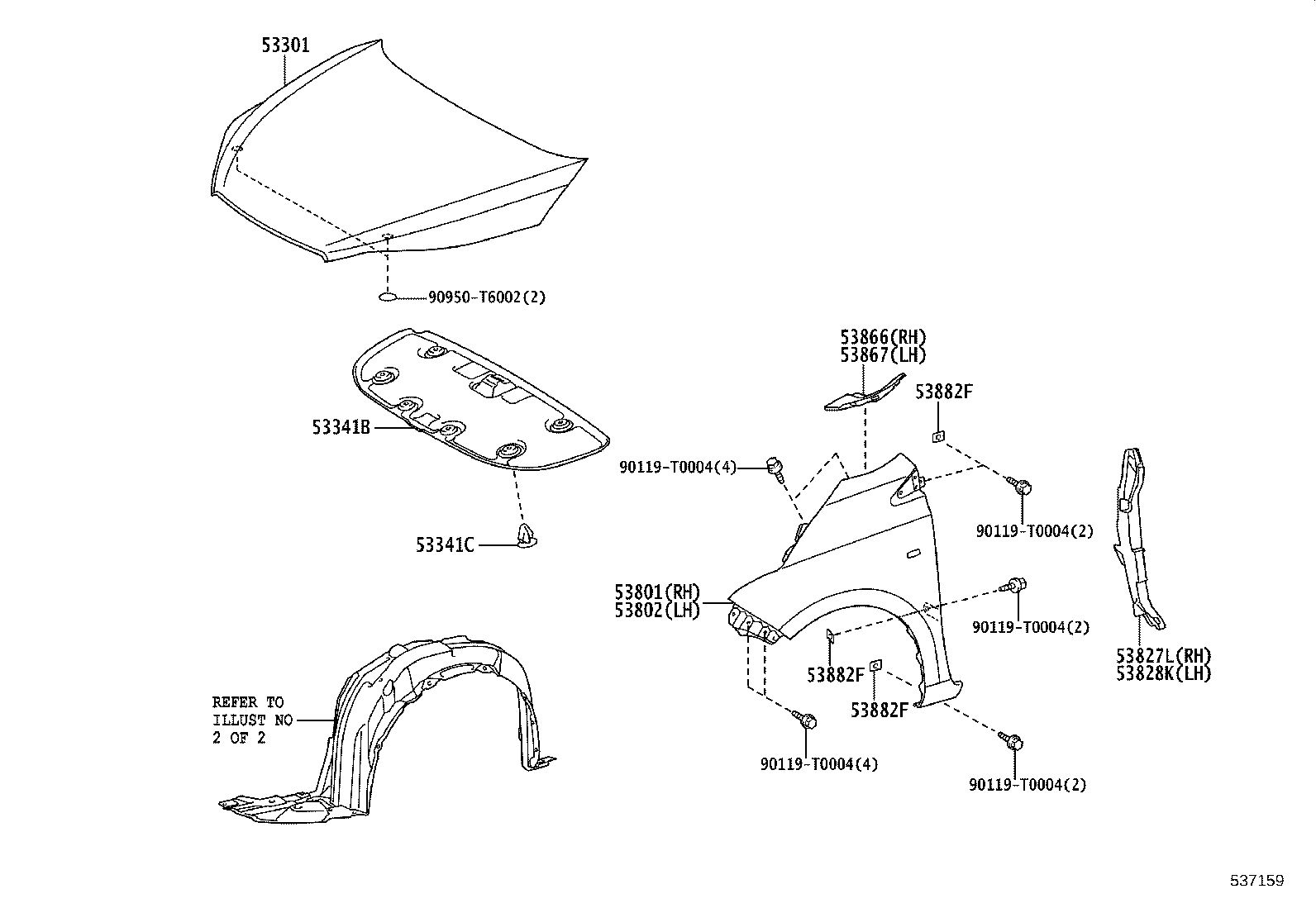

ILLUST NO. 1 OF 2(1310-1609)NCP15# ; (1310-1708)NSP15#..GCC,GEN,PH,TH,VN ; (1605-1802)TAIW ; (1610-1

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53801 53802 53827L 53828K 53866 53867 53882F 53882F 53882F 90119T0004 90119T0004 90119T0004 90119T0004 90119T0004 90950T6002
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-0D150

NCP15#..GCC,GEN,PH,VN

 1
53341B - INSULATOR, HOOD
53341-0D200

NCP15#..(GCC,GEN,PH,VN)..(G,R)

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-T0014

NCP15#..(GCC,GEN,PH,VN)..(G,R)

(L)

 6
90467-09050

NCP15#..(GCC,GEN,PH,VN)..(G,R)

(J)

 6
53801 - FENDER SUB-ASSY, FRONT RH
53801-0D020

NCP15#..LHD..GEN..R

LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR LATIN AMERICA)

 1
53801-0D010

NCP15#..(GCC,GEN,PH,VN)..(D,R)

 1
53801-0D020

NCP15#..(GCC,GEN,PH,VN)..G

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-0D010

NCP15#..(GCC,GEN,PH,VN)..(D,R)

 1
53802-0D020

NCP15#..LHD..GEN..R

LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR LATIN AMERICA)

 1
53802-0D020

NCP15#..(GCC,GEN,PH,VN)..G

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-0D120

NCP15#..GCC,GEN,PH,VN

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-0D120

NCP15#..GCC,GEN,PH,VN

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-0D120

NCP15#..GCC,GEN,PH,VN

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-0D120

NCP15#..GCC,GEN,PH,VN

 1
53882F - SEAL, FRONT FENDER
53882-33060

NCP15#..GCC,GEN,PH,VN

 6
53882F - SEAL, FRONT FENDER
53882-33060

NCP15#..GCC,GEN,PH,VN

 6
53882F - SEAL, FRONT FENDER
53882-33060

NCP15#..GCC,GEN,PH,VN

 6
Common parts
90119-T0004
90950-T6002

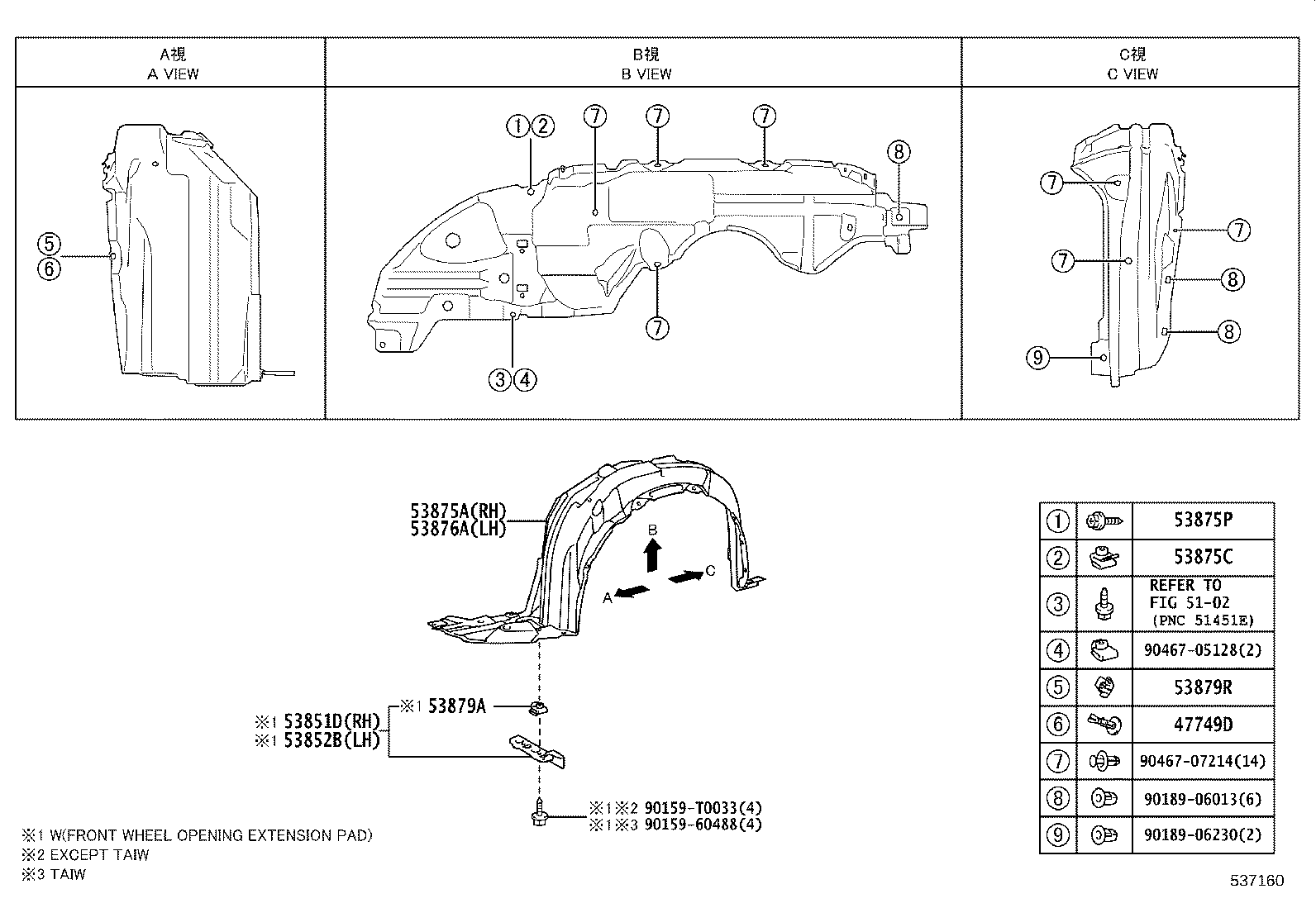

ILLUST NO. 2 OF 2(1310-1609)NCP15# ; (1310-1708)NSP15#..GCC,GEN,PH,TH,VN ; (1605-1802)TAIW ; (1610-1

Click highlighted areas on diagram

FENDER LINER

diagram 47749D 5102 53851D 53852B 53875A 53875C 53875P 53876A 53879A 53879R 9015960488 90159T0033 9018906013 9018906230 9046705128 9046707214
Part # Description Qty Price
47749D - CLIP, PIN HOLD
47749-58010

NCP15#..GCC,GEN,PH,VN

 2
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-0D090

NCP15#..GCC,GEN,PH,VN

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-0D050

NCP15#..GCC,GEN,PH,VN

 1
53875A - LINER, FRONT FENDER, RH
53875-0D390

NCP15#..(GCC,GEN,PH,VN)..(G,R)

 1
53875-0D220

NCP15#..D

 1
53875C - CLIP, FRONT FENDER LINER
90467-05114

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 2
53875P - SCREW, NO.1
90159-T0033

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN

 2
53876A - LINER, FRONT FENDER, LH
53876-0D390

NCP15#..(GCC,GEN,PH,VN)..(G,R)

 1
53876-0D220

NCP15#..D

 1
53879A - RETAINER, FRONT FENDER LINER
53879-17020

NCP15#..GCC,GEN,PH,VN

 4
53879R - RETAINER, FRONT FENDER LINER
53879-58010

NCP15#..GCC,GEN,PH,VN

 2
Common parts
90159-60488
90159-T0033
90189-06013
90189-06230
90467-05128
90467-07214
Linked diagrams
5102
