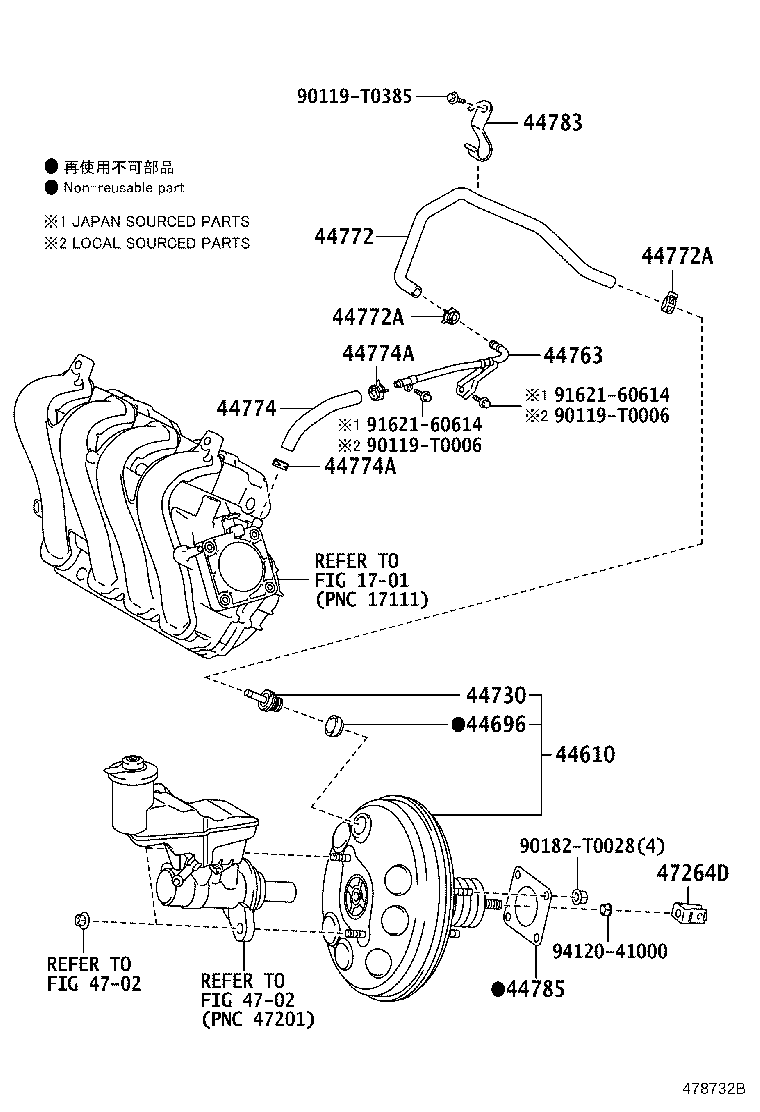

Toyota Yaris NCP151 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-0D410	NCP151..5F..G	03/2014 - 06/2016	1
44610-0D450	NCP15#..LHD..5F	03/2014 - 06/2016	1
44610-0D480	NCP15#..LHD..5F..GEN ABS-WITHOUT	03/2014 - 06/2016	1
44696 - GROMMET, CHECK VALVE
90016-AT003	NCP15#..5F..A	03/2014 - 06/2016	1
90016-AT003	NSP152;NSP150,151..5F..A	10/2013 - 08/2017	2
44763 - TUBE, BOOSTER VACUUM
44763-52080	NCP151	03/2014 - 06/2016	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0D130	NCP15#..LHD..5F	03/2014 - 06/2016	1
44772-0D120	NCP151..5F..G	03/2014 - 06/2016	1
44774 - HOSE, UNION TO CONNECTOR TUBE
95446-09130	NCP15#..GCC,GEN,PH,VN	03/2014 - 06/2016	1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014	NSP152;NSP150,151..LHD..5F	10/2013 - 08/2017	2
96133-41500	NCP151	03/2014 - 01/2015	2
96136-41801	NCP151	02/2015 - 06/2016	2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014	NSP152;NSP150,151..LHD..5F	10/2013 - 08/2017	2
96133-41500	NCP151	03/2014 - 01/2015	2
96136-41801	NCP151	02/2015 - 06/2016	2
44783 - CLAMP, VACUUM HOSE
44783-0D010	NCP15#..LHD..5F	03/2014 - 06/2016	1
44785 - GASKET, BRAKE BOOSTER
44785-0D020	NCP15#..GCC,GEN,PH,VN	10/2013 - 06/2016	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0D040	NCP15#..GCC,GEN,PH,VN	10/2013 - 06/2016	1
Common parts
90119-T0006
90119-T0385
90182-T0028
91621-60614
94120-41000
Linked diagrams
1701
4702

NCP151L-AHMRK (2014)
