NCP150L-AHPVKR (2014)

Toyota Yaris

Production Sep 2014 - Apr 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1409- )TAIW..G,R

Click highlighted areas on diagram

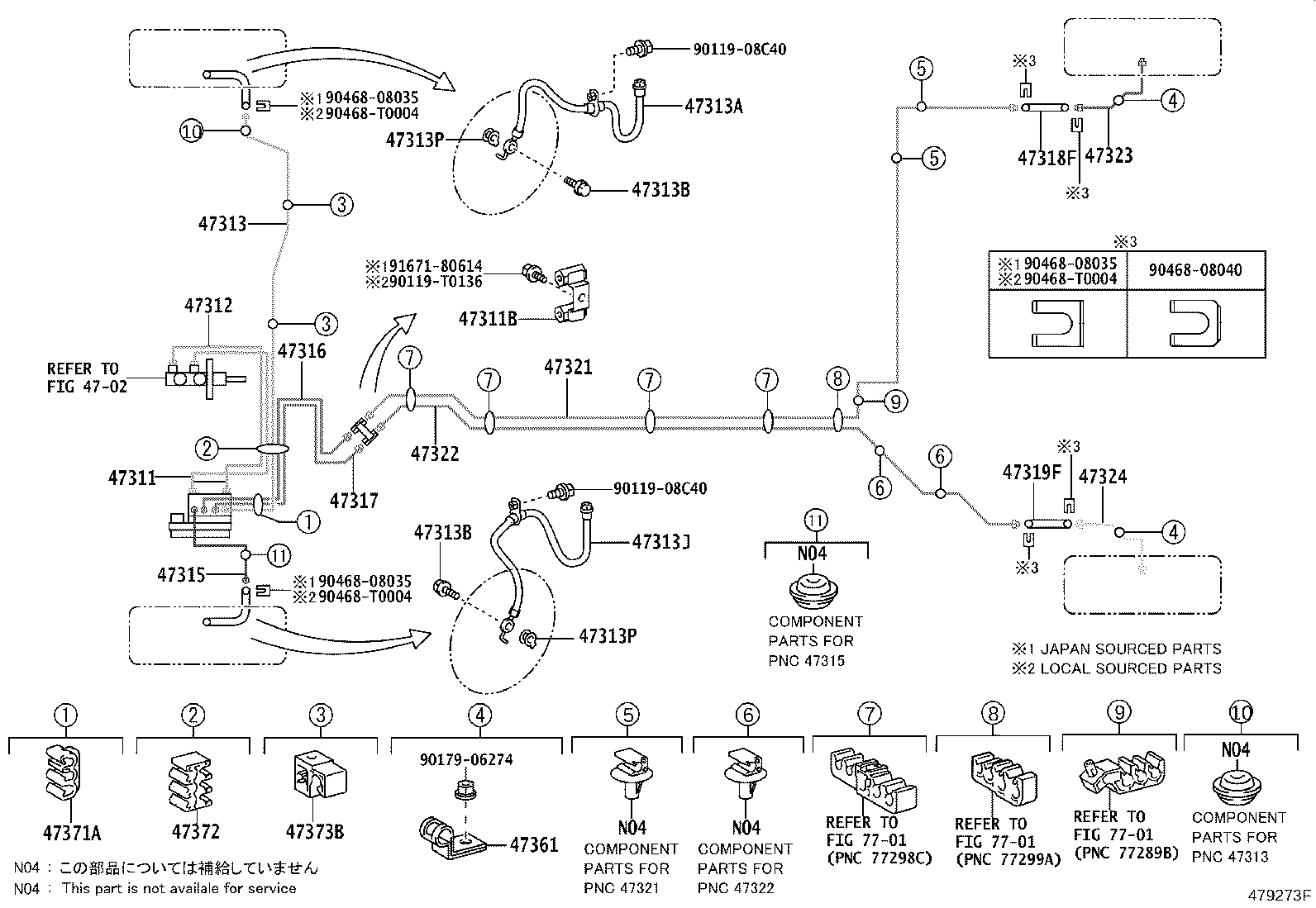

BRAKE TUBE, W(ABS)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47361 47371A 47372 47373B 7701 7701 7701 9011908C40 9011908C40 90119T0136 9017906274 9046808035 9046808035 9046808035 9046808040 90468T0004 90468T0004 90468T0004 9167180614
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D630

NCP150..TAIW

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP150..TAIW

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0D560

NCP150..TAIW

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D550

NCP150..TAIW

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2081

NCP150..C

 1
90947-T2081

NCP150..TAIW

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP150..TAIW

 2
90401-10058

NCP150..C

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP150..TAIW

 2
90401-10058

NCP150..C

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-T2082

NCP150..TAIW

 1
90947-T2082

NCP150..C

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NCP150..C

 2
47389-50021

NCP150..TAIW

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NCP150..C

 2
47389-50021

NCP150..TAIW

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D530

NCP150..TAIW

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D440

NCP150..TAIW

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D440

NCP150..TAIW

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-T2083

NCP150..TAIW

 1
90947-T2083

NCP150..C

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-T2084

NCP150..TAIW

 1
90947-T2084

NCP150..C

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0D400

NCP150..TAIW

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0D400

NCP150..TAIW

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0D300

NCP150..V..A

 1
47323-0D280

NCP150..TAIW..(G,R)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0D280

NCP150..TAIW..(G,R)

 1
47324-0D300

NCP150..V..A

 1
47361 - CLAMP, TUBE
90461-T0006

NCP150..C

 2
90461-C0002

NCP150..TAIW

 2
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP150..C

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D02

NCP150..C

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D83

NCP150..C

 1
Common parts
90119-08C40
90119-T0136
90179-06274
90468-08035
90468-08040
90468-T0004
91671-80614
Linked diagrams
4702
7701

ILLUST NO. 1 OF 2(1409- )TAIW..V

Click highlighted areas on diagram

BRAKE TUBE, W(ABS)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47316A 47316A 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47361 47371A 47372 47373B 7701 7701 7701 9011908C40 9011908C40 90119T0136 9017906274 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 9167180614
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D630

NCP150..TAIW

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP150..TAIW

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0D560

NCP150..TAIW

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D550

NCP150..TAIW

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2081

NCP150..C

 1
90947-T2081

NCP150..TAIW

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP150..TAIW

 2
90401-10058

NCP150..C

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP150..TAIW

 2
90401-10058

NCP150..C

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-T2082

NCP150..TAIW

 1
90947-T2082

NCP150..C

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NCP150..C

 2
47389-50021

NCP150..TAIW

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NCP150..C

 2
47389-50021

NCP150..TAIW

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D530

NCP150..TAIW

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D440

NCP150..TAIW

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D440

NCP150..TAIW

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-T2083

NCP150..TAIW

 1
90947-T2083

NCP150..C

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-T2084

NCP150..TAIW

 1
90947-T2084

NCP150..C

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0D400

NCP150..TAIW

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0D400

NCP150..TAIW

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0D300

NCP150..V..A

 1
47323-0D280

NCP150..TAIW..(G,R)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0D280

NCP150..TAIW..(G,R)

 1
47324-0D300

NCP150..V..A

 1
47361 - CLAMP, TUBE
90461-T0006

NCP150..C

 2
90461-C0002

NCP150..TAIW

 2
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP150..C

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D02

NCP150..C

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D83

NCP150..C

 1
Common parts
90119-08C40
90119-T0136
90179-06274
90468-08035
90468-T0004
91671-80614
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(1409- )NCP150..TAIW

Click highlighted areas on diagram

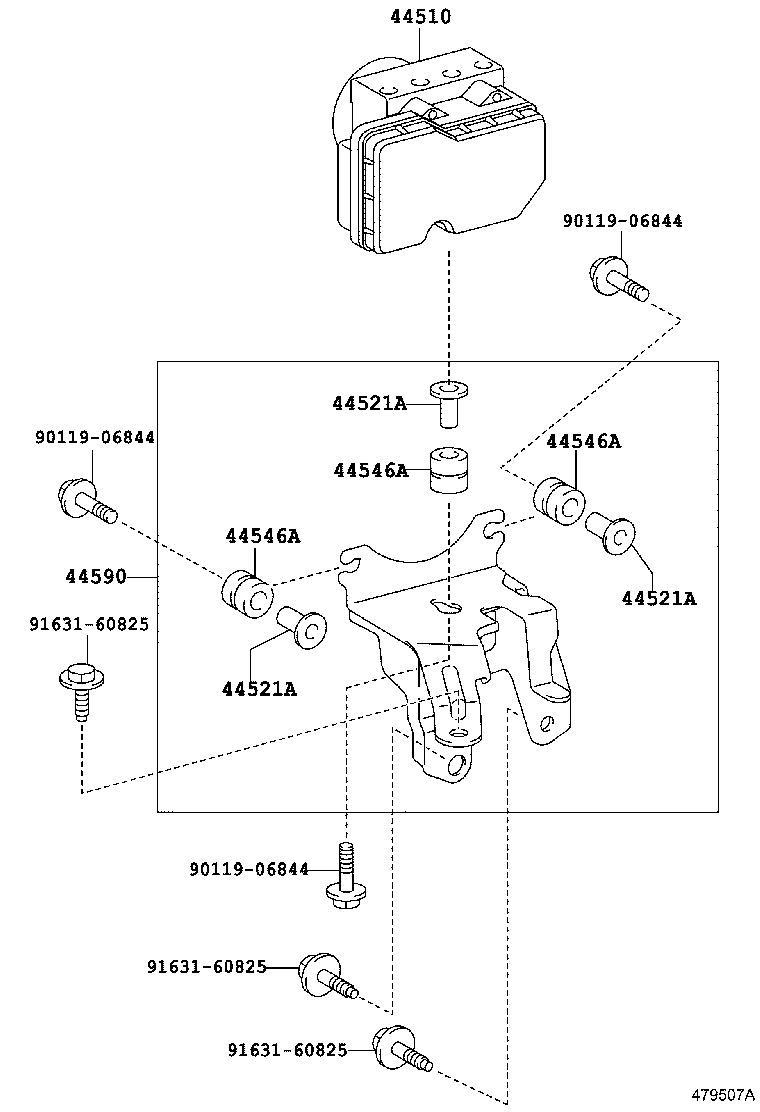

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0D280

NCP150..TAIW..(G,R)

 1
44050-0D290

NCP150..V..A

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP150..TAIW

 3
44521-0D010

NCP150..C

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP150..TAIW

 3
44521-0D010

NCP150..C

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP150..TAIW

 3
44521-0D010

NCP150..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP150..C

 3
44546-12110

NCP150..TAIW

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP150..C

 3
44546-12110

NCP150..TAIW

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP150..C

 3
44546-12110

NCP150..TAIW

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D080

NCP150..TAIW

 1
Common parts
90119-06844
91631-60825
