NCP150L-AHPVKR (2014)

Toyota Yaris

Production Sep 2014 - Apr 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )TAIW

Click highlighted areas on diagram

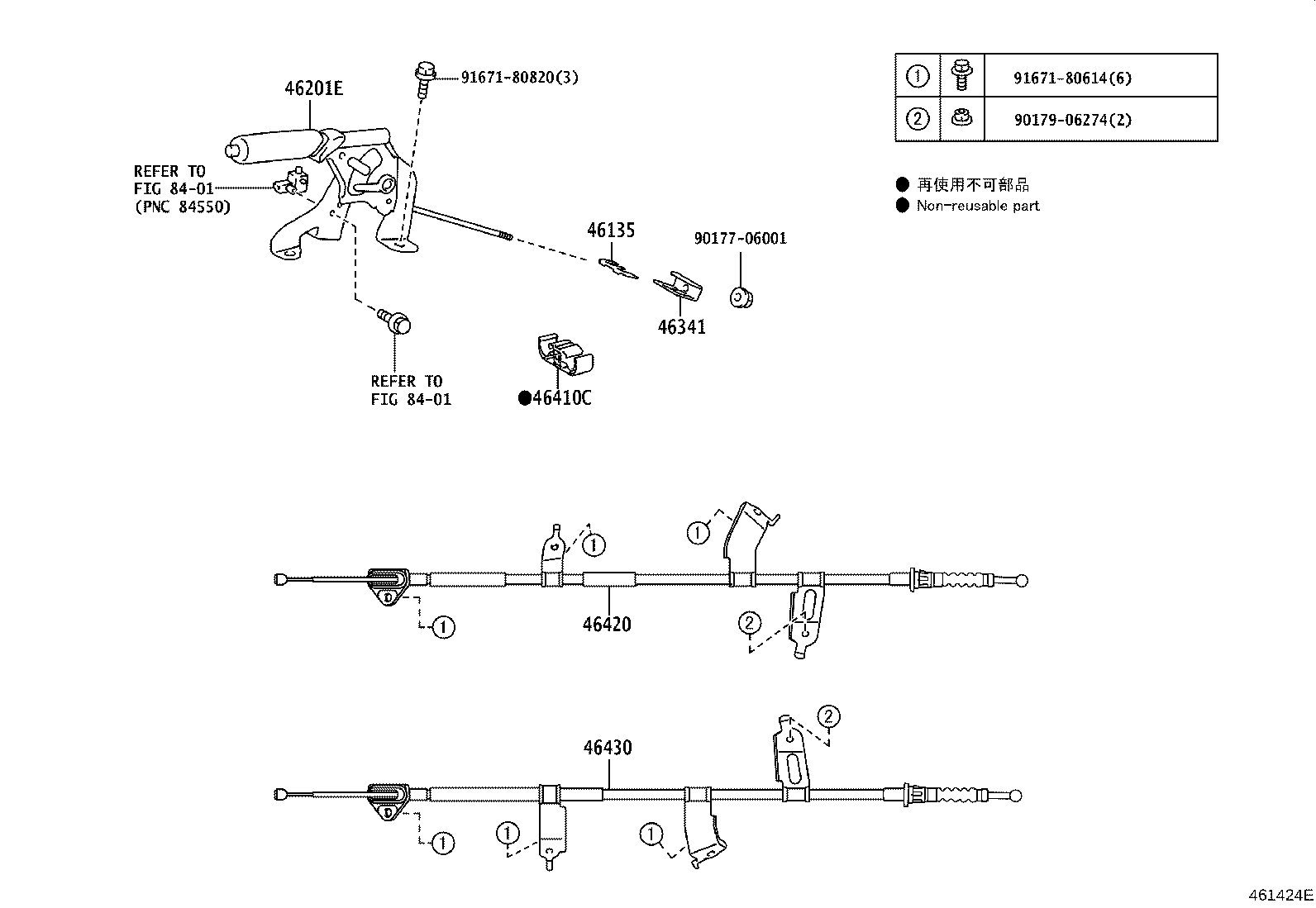

REAR DISC BRAKE

diagram 46135 46201E 46341 46410C 46420 46430 8401 8401 9017706001 9017906274 9167180614 9167180820
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-0D040

NCP150..TAIW

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0D360C0

NCP150..TAIW..(G,R)

BLACK,TRIM0#,2#

 1
46201-0D380C0

NCP150..V..A

BLACK,TRIM2#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-0D080

NCP150..TAIW

 1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-0D030

NCP150..TAIW

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0D290

NCP150..TAIW..(G,R)

 1
46420-0D300

NCP150..V..A

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0D300

NCP150..V..A

 1
46430-0D290

NCP150..TAIW..(G,R)

 1
Common parts
90177-06001
90179-06274
91671-80614
91671-80820
Linked diagrams
8401

(1409- )TAIW

Click highlighted areas on diagram

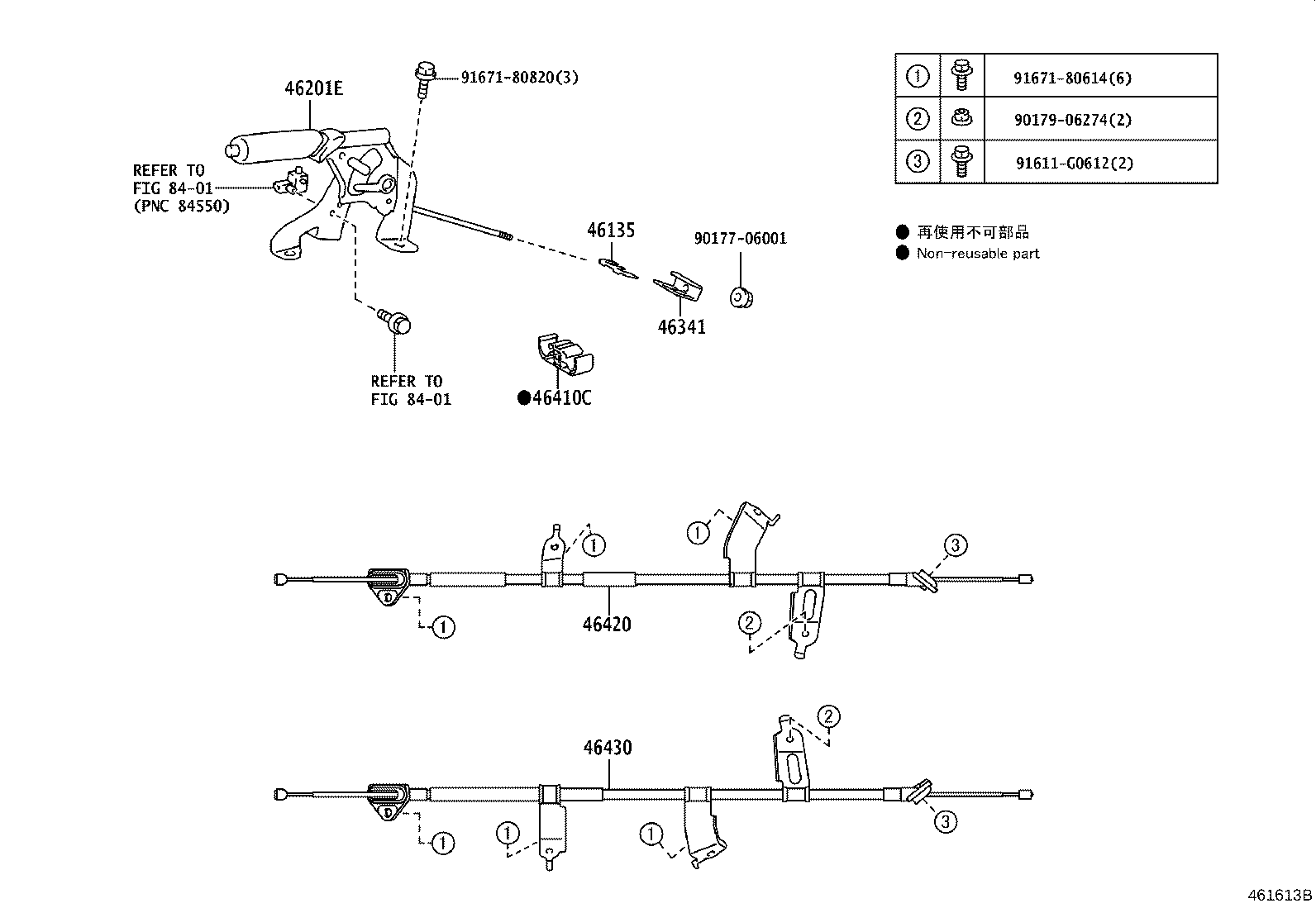

REAR DRUM BRAKE

diagram 46135 46201E 46341 46410C 46420 46430 8401 8401 9017706001 9017906274 91611G0612 9167180614 9167180820
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-0D040

NCP150..TAIW

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0D360C0

NCP150..TAIW..(G,R)

BLACK,TRIM0#,2#

 1
46201-0D380C0

NCP150..V..A

BLACK,TRIM2#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-0D080

NCP150..TAIW

 1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-0D030

NCP150..TAIW

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0D290

NCP150..TAIW..(G,R)

 1
46420-0D300

NCP150..V..A

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0D300

NCP150..V..A

 1
46430-0D290

NCP150..TAIW..(G,R)

 1
Common parts
90177-06001
90179-06274
91611-G0612
91671-80614
91671-80820
Linked diagrams
8401
