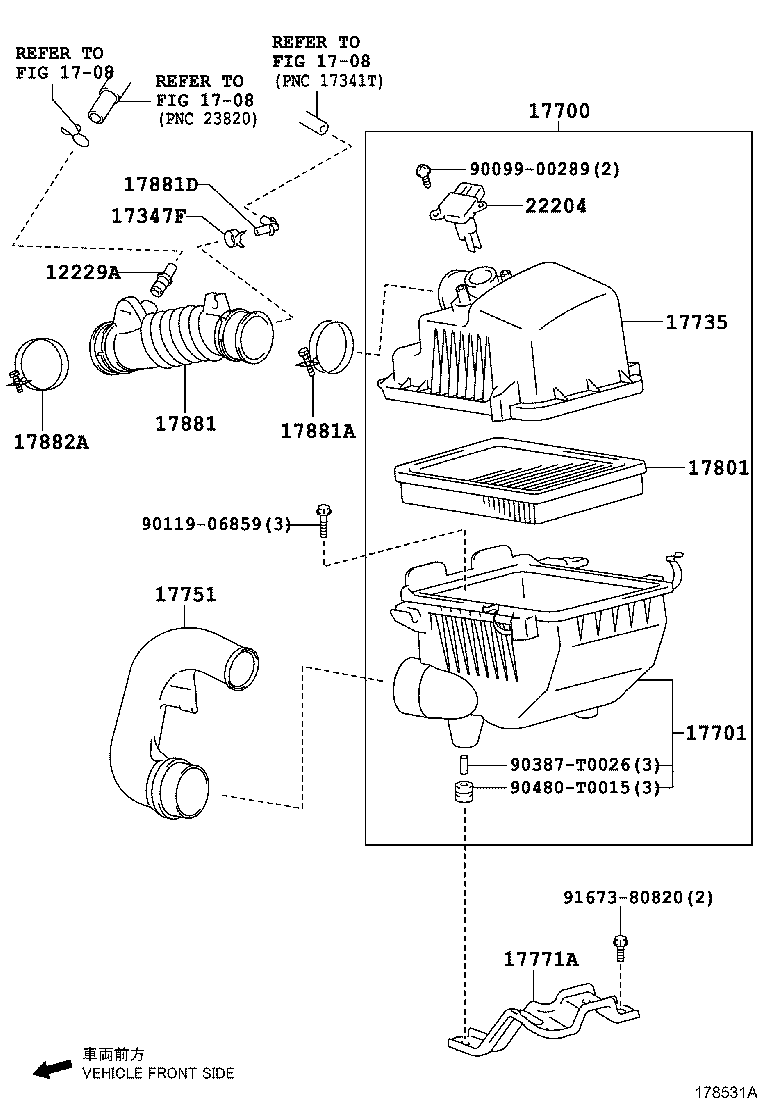

Toyota Yaris NCP150 AIR CLEANER - JDM Part Detective

Part #	Description	Period	Qty
12229A - PIPE, VENTILATION
12229-0T040	1NZFE..NCP150..TAIW	09/2014 - 04/2016	1
12229-0Y030	1NZFE..NCP150..C	10/2013 - 09/2016	1
17347F - CLAMP OR CLIP(FOR AIR HOSE)
96136-41901	1NZFE..NCP150..4FC..C	10/2013 - 09/2016	1
96136-41901	1NZFE..NCP150..TAIW	09/2014 - 04/2016	1
17700 - CLEANER ASSY, AIR
17700-0M110	1NZFE..NCP150..TAIW	09/2014 - 04/2016	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0M080	1NZFE..NCP150..TAIW	09/2014 - 04/2016	1
17735 - CAP, AIR CLEANER
17735-0M050	1NZFE..NCP150..TAIW	09/2014 - 04/2016	1
17751 - INLET, AIR CLEANER, NO.1
17751-0M080	1NZFE..NCP150..TAIW	09/2014 - 04/2016	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0Y040	1NZFE..NCP150..C	10/2013 - 07/2016	1
17801-0Y040	1NZFE..NCP150..TAIW	10/2013 - 04/2016	1
17881 - HOSE, AIR CLEANER, NO.1
17881-0M110	1NZFE..NCP150..TAIW	09/2014 - 04/2016	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690	1NZFE..NCP150..TAIW	09/2014 - 04/2016	1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
12229-0M020	1NZFE..NCP150..TAIW	09/2014 - 04/2016	1
12229-0Y050	1NZFE..NCP150..4FC..C	10/2013 - 09/2016	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690	1NZFE..NCP150..TAIW	09/2014 - 04/2016	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0V020	1NZFE..NCP150..C	10/2013 - 09/2016	1
22204-0V020	1NZFE..NCP150..TAIW	10/2013 - 04/2016	1
Common parts
90099-00289
90119-06859
90387-T0026
90480-T0015
91673-80820
Linked diagrams
1708

NCP150L-AHPVKR (2014)
