NCP150L-AHPRKV (2014)

Toyota Yaris

Production Mar 2014 - Jun 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1403- )NCP15#..GCC

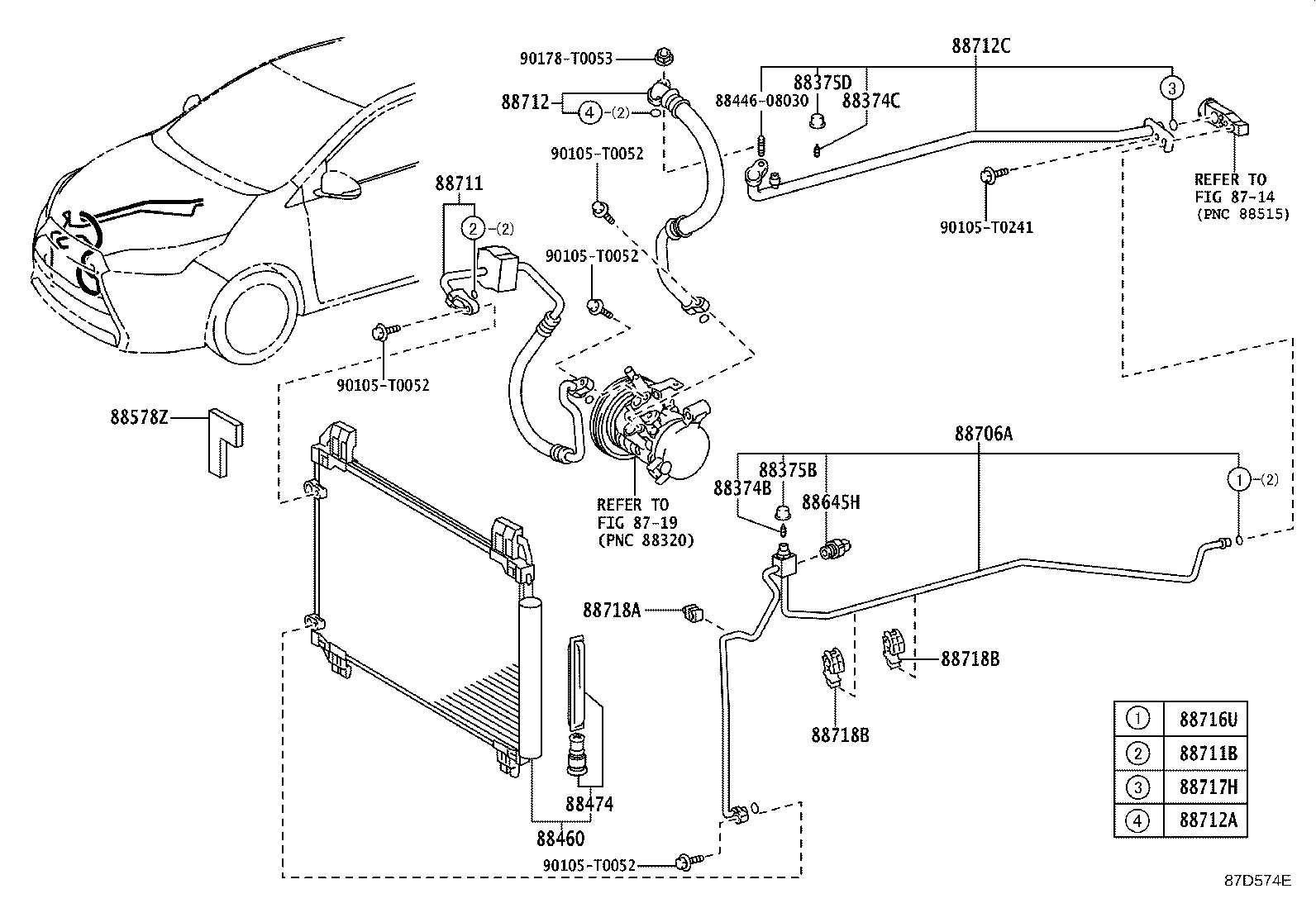

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 8844608030 88460 88474 88578Z 88645H 88706A 88711 88711B 88712 88712A 88712C 88716U 88717H 88718A 88718B 88718B 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90178T0053
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-33010

NCP15#,NSP152..GCC,GEN,PH,TH,VN

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NCP15#..GCC,GEN,PH,VN

 1
88374-30010

NCP150..C

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

NCP15#..GCC,GEN,PH,VN

 1
88375-30290

NCP150..C

 1
88460 - CONDENSER ASSY, COOLER
88460-0D310

NCP15#..GCC

 1
88474 - DRYER, COOLER
88474-17010

NCP150..C

 1
88474-17010

NCP15#..GCC,GEN,PH,VN

 1
88578Z - PACKING, COOLER, NO.1
88578-0D120

NCP15#..GCC

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

NCP15#..GCC,GEN,PH,VN

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-0D530

NCP15#..GCC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D420

NCP15#..GCC

 1
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
90099-14120

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0D520

NCP15#..GCC

 1
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90099-14121

NCP15#..GCC,GEN,PH,VN

 1
90099-14121

NCP150..C

 1
88712C - HOSE, SUCTION
88707-0D300

NCP15#..GCC

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)
90099-14121

NCP15#..GCC

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-0D210

NCP15#..GCC,GEN,PH,VN

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-0D550

NCP15#..GCC

 2
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-0D550

NCP15#..GCC

 2
Common parts
88446-08030
90105-T0052
90105-T0241
90178-T0053
Linked diagrams
8714
8719

(1403- )NCP150..C

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88706A 88711 88711B 88712 88712A 88716A 88716U 88718A 88718B 88718B 88891H 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 9046707164
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-33010

NCP15#,NSP152..GCC,GEN,PH,TH,VN

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NCP15#..GCC,GEN,PH,VN

 1
88374-30010

NCP150..C

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

NCP15#..GCC,GEN,PH,VN

 1
88375-30290

NCP150..C

 1
88460 - CONDENSER ASSY, COOLER
88460-0D310

NCP15#..GCC

 1
88474 - DRYER, COOLER
88474-17010

NCP150..C

 1
88474-17010

NCP15#..GCC,GEN,PH,VN

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

NCP15#..GCC,GEN,PH,VN

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-0D530

NCP15#..GCC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D420

NCP15#..GCC

 1
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
90099-14120

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0D520

NCP15#..GCC

 1
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90099-14121

NCP15#..GCC,GEN,PH,VN

 1
90099-14121

NCP150..C

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14119

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-0D210

NCP15#..GCC,GEN,PH,VN

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-0D550

NCP15#..GCC

 2
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-0D550

NCP15#..GCC

 2
88891H - COVER, COOLER, NO.1
88891-0D270

NCP150..C

 1
Common parts
90105-T0052
90105-T0241
90467-07164
Linked diagrams
8714
8719
