NCP150L-AHPRKR (2014)

Toyota Yaris

Production Sep 2014 - Apr 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1709)NSP152 ; (1310-1710)GCC,GEN,IDN,MA,PH,VN ; (1710-1802)C

Click highlighted areas on diagram

HALOGEN(MULTI REFLECTOR TYPE)

diagram 5304 81110 81110B 81135 81144 81150 81175 81510C 81515B 81610F 81615D 90105T0151 90159T0019 90189T0007
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0D640

NCP150..TAIW..R

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13100

NCP150..TAIW..R

12V 60/55W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0D640

NCP150..TAIW..R

 1
81144 - COVER, HEADLAMP, NO.1
90075-65002

NCP150..R..C

 2
90075-8C003

NCP150..TAIW..R

 2
81150 - HEADLAMP ASSY, LH
81150-0D640

NCP150..TAIW..R

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0D640

NCP150..TAIW..R

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15028

NCP150..TAIW

12V 21W,AMBER

 2
90981-15028

NCP150..C

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60069

NCP150..C

 2
90075-60069

NCP150..TAIW

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11069

NCP150..TAIW

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

NCP150..TAIW

 2
90075-60077

NCP150..C

 2
Common parts
90105-T0151
90159-T0019
90189-T0007
Linked diagrams
5304

(1310-1709)NSP152 ; (1310-1710)GCC,GEN,IDN,MA,PH,VN ; (1710-1802)C

Click highlighted areas on diagram

HALOGEN(PROJECTOR TYPE)

diagram 5304 81110 81110B 81135 81144 81150 81175 81510C 81515B 81610F 81615D 90105T0151 90159T0019 90189T0007
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0D640

NCP150..TAIW..R

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13100

NCP150..TAIW..R

12V 60/55W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0D640

NCP150..TAIW..R

 1
81144 - COVER, HEADLAMP, NO.1
90075-65002

NCP150..R..C

 2
90075-8C003

NCP150..TAIW..R

 2
81150 - HEADLAMP ASSY, LH
81150-0D640

NCP150..TAIW..R

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0D640

NCP150..TAIW..R

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15028

NCP150..TAIW

12V 21W,AMBER

 2
90981-15028

NCP150..C

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60069

NCP150..C

 2
90075-60069

NCP150..TAIW

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11069

NCP150..TAIW

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

NCP150..TAIW

 2
90075-60077

NCP150..C

 2
Common parts
90105-T0151
90159-T0019
90189-T0007
Linked diagrams
5304

(1409-1604)TAIW ; (1409-1802)NSP151..TAIW..R

Click highlighted areas on diagram

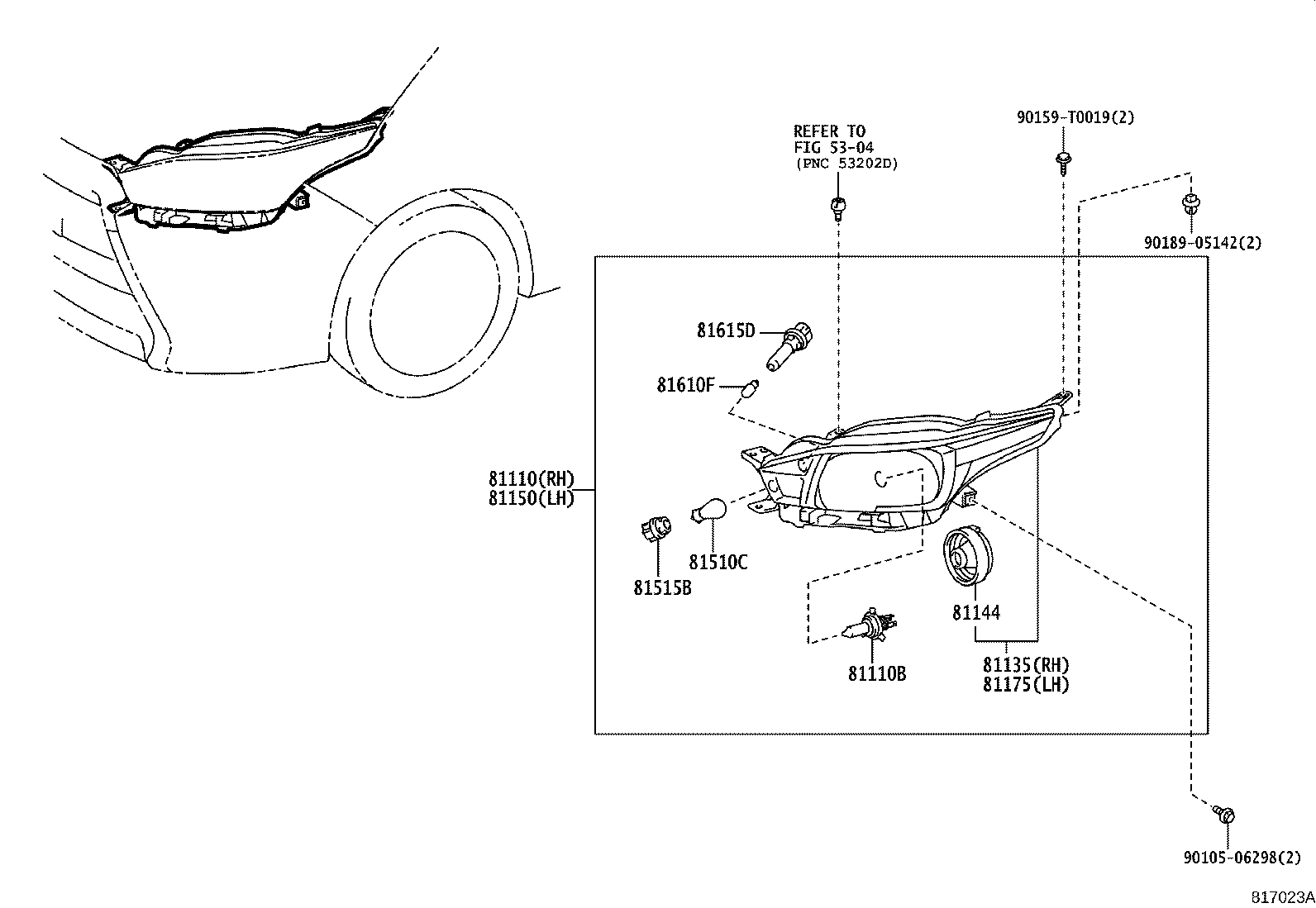

HALOGEN(MULTI REFLECTOR TYPE)

diagram 5304 81110 81110B 81135 81144 81150 81175 81510C 81515B 81610F 81615D 9010506298 90159T0019 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0D640

NCP150..TAIW..R

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13100

NCP150..TAIW..R

12V 60/55W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0D640

NCP150..TAIW..R

 1
81144 - COVER, HEADLAMP, NO.1
90075-65002

NCP150..R..C

 2
90075-8C003

NCP150..TAIW..R

 2
81150 - HEADLAMP ASSY, LH
81150-0D640

NCP150..TAIW..R

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0D640

NCP150..TAIW..R

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15028

NCP150..TAIW

12V 21W,AMBER

 2
90981-15028

NCP150..C

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60069

NCP150..C

 2
90075-60069

NCP150..TAIW

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11069

NCP150..TAIW

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

NCP150..TAIW

 2
90075-60077

NCP150..C

 2
Common parts
90105-06298
90159-T0019
90189-05142
Linked diagrams
5304

(1409-1604)TAIW ; (1409-1802)NSP151..TAIW..G,V

Click highlighted areas on diagram

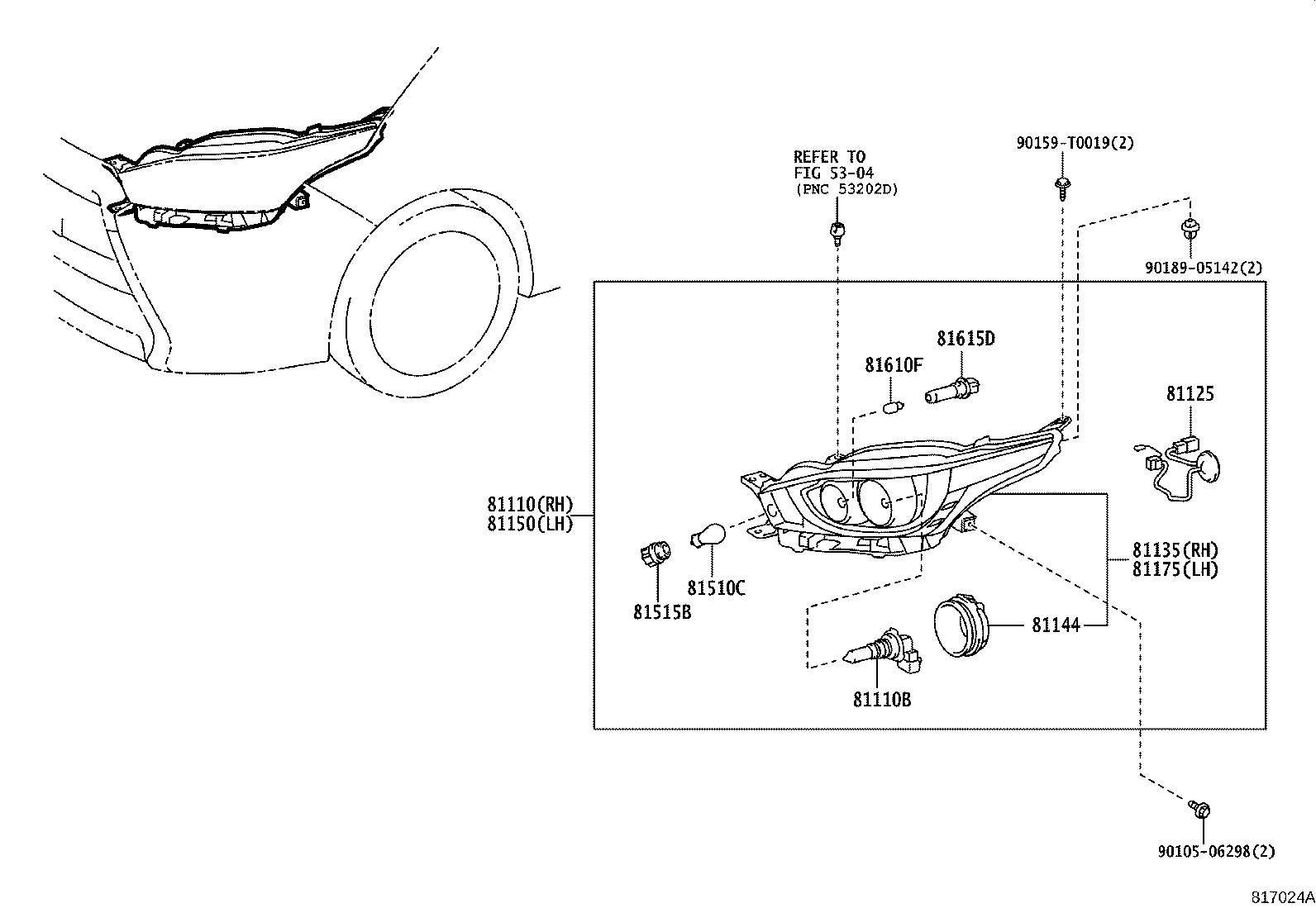

HALOGEN(PROJECTOR TYPE)

diagram 5304 81110 81110B 81125 81135 81144 81150 81175 81510C 81515B 81610F 81615D 9010506298 90159T0019 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0D640

NCP150..TAIW..R

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13100

NCP150..TAIW..R

12V 60/55W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0D640

NCP150..TAIW..R

 1
81144 - COVER, HEADLAMP, NO.1
90075-65002

NCP150..R..C

 2
90075-8C003

NCP150..TAIW..R

 2
81150 - HEADLAMP ASSY, LH
81150-0D640

NCP150..TAIW..R

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0D640

NCP150..TAIW..R

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15028

NCP150..TAIW

12V 21W,AMBER

 2
90981-15028

NCP150..C

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60069

NCP150..C

 2
90075-60069

NCP150..TAIW

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11069

NCP150..TAIW

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

NCP150..TAIW

 2
90075-60077

NCP150..C

 2
Common parts
90105-06298
90159-T0019
90189-05142
Linked diagrams
5304
