NCP131R-AHPRKQ (2017)

Toyota Yaris

Production Jan 2017 - Jan 2020
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

Click highlighted areas on diagram

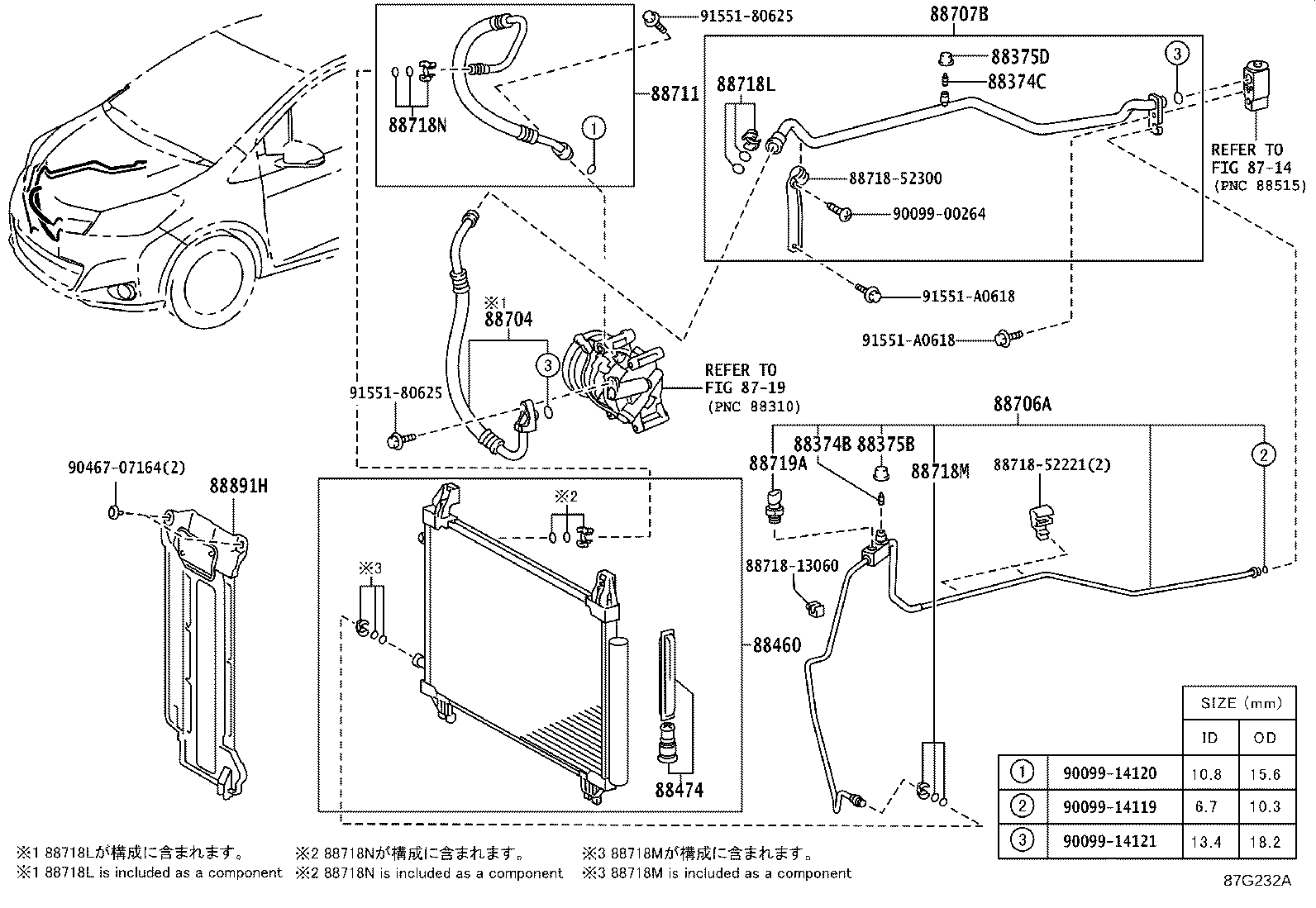

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88704 88706A 88707B 88711 8871813060 8871852221 8871852300 88718L 88718M 88718N 88719A 88891H 9009900264 9009914119 9009914120 9009914121 9046707164 9155180625 9155180625 91551A0618 91551A0618
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NCP13#..ARL,GCC

 1
88374-30010

NCP13#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NCP13#..ARL,GCC

 1
88374-30010

NCP13#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

NCP13#..ARL,GCC

 1
88375-30280

NCP13#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

NCP13#

 1
88375-30290

NCP13#..ARL,GCC

 1
88460 - CONDENSER ASSY, COOLER
88460-12600

NCP13#

 1
88460-52130

NCP13#..ARL

 1
88474 - DRYER, COOLER
88474-12030

NCP13#..ARL,GCC

 1
88474-12010

NCP13#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-52230

NCP13#..ARL

 1
88704-52230

NCP13#

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-52670

NCP13#

 1
88706-52540

NCP13#..ARL

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-52300

NCP13#

 1
88707-52300

NCP13#..ARL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52380

NCP13#..ARL

 1
88711-52520

NCP13#

 1
88718L - CLAMP, PIPING
88718-52260

NCP13#

 1
88718-52260

NCP13#..ARL

 1
88718M - CLAMP, PIPING
88718-1E150

NCP13#

 1
88718N - CLAMP, PIPING
88718-1E140

NCP13#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NCP13#..ARL,GCC

 1
88719-33020

NCP13#

 1
88891H - COVER, COOLER, NO.1
88891-52100

NCP13#..ARL

 1
88891-52140

NCP13#

 1
Common parts
88718-13060
88718-52221
88718-52300
90099-00264
90099-14119
90099-14120
90099-14121
90467-07164
91551-80625
91551-A0618
