NCP131R-AHPRKQ (2011)
Toyota Yaris
Production
Aug 2011
-
Jul 2014
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1108-1701)ARL,GEN

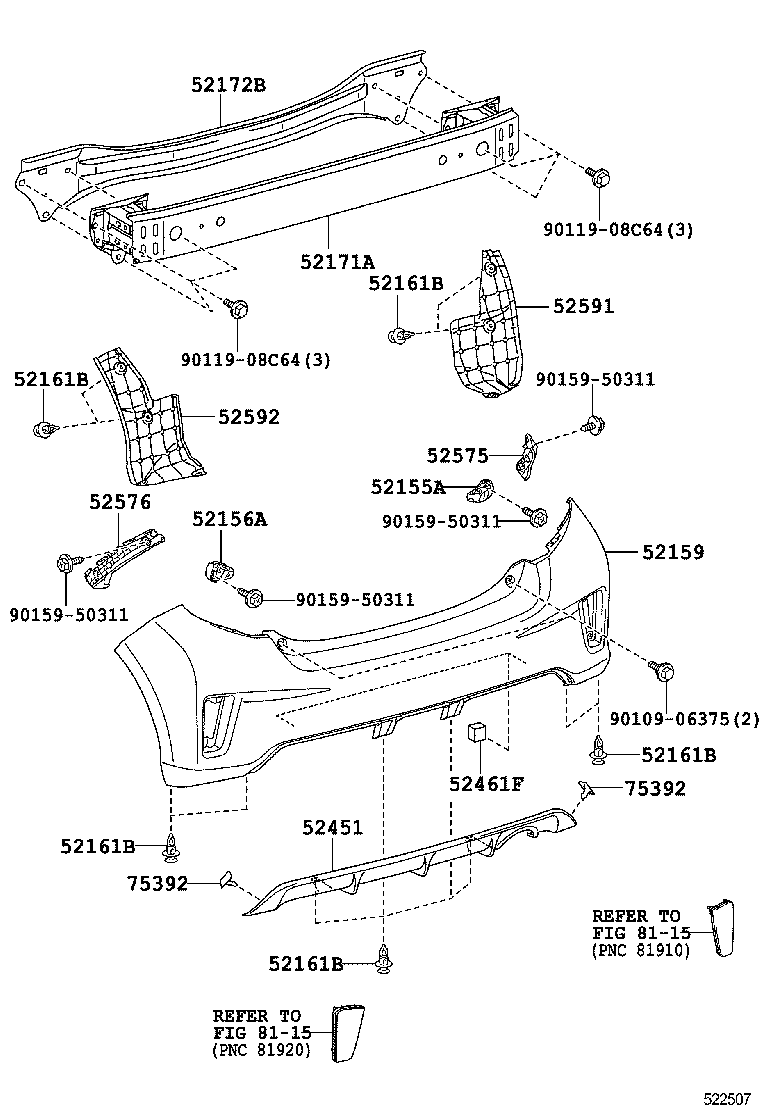

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-52120 |
NCP13# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-52120 |
NCP13# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52957 |
NCP13#..ARL,GEN PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-52080 |
NCP13#..ARL,GEN |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-52080 |
NCP13#..ARL,GEN |
1 | ||
| 52172B - REINFORCEMENT, REAR BUMPER, NO.2 | ||||
| 52172-52020 |
NCP13#..ARL,GCC |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52170 |
NCP13# |
1 | ||
| 52575-52171 |
NCP13# |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-52151 |
NCP13# |
1 | ||
| 52576-52150 |
NCP13# |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52300 |
NCP13# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52290 |
NCP13# |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
(1108-1407)NCP131..5D..GEN ; (1108-1407)NCP131..3D..5F..ARL ; (1407- )NCP131
Click highlighted areas on diagram
S PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-52120 |
NCP13# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-52120 |
NCP13# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52957 |
NCP13#..ARL,GEN PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52172B - REINFORCEMENT, REAR BUMPER, NO.2 | ||||
| 52172-52020 |
NCP13#..ARL,GCC |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52170 |
NCP13# |
1 | ||
| 52575-52171 |
NCP13# |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-52151 |
NCP13# |
1 | ||
| 52576-52150 |
NCP13# |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52300 |
NCP13# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52290 |
NCP13# |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| Linked diagrams | ||||
| 8115 | ||||
