NCP131R-AGPRKQ (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1108- )RHD

Click highlighted areas on diagram

CONTROL PANEL---MANUAL

diagram 5501 55901A 55901D 55902E 55902G 55903A 55903B 55906A 55908A 55909A
Part # Description Qty Price
55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1
90010-01142

NCP13#

 1
90010-01142

NCP131..ARL,GCC

FRONT AIR CONDITIONER-AUTO

 1
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-52230

NCP131..ARL,GCC

FRONT AIR CONDITIONER-AUTO

 1
55901-52230

NCP130..ARL;NCP131..ARL,GCC

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-52180

NCP131..ARL,GCC

FRONT AIR CONDITIONER-AUTO

 1
55902-52180

NCP13#

 1
55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2
90010-01142

NCP131..ARL,GCC

FRONT AIR CONDITIONER-AUTO

 1
90010-01142

NCP13#

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-52550

NCP13#..ARL

 1
55903-52550

NCP131..ARL

FRONT AIR CONDITIONER-AUTO

 1
55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3
90010-01142

NCP131..ARL,GCC

FRONT AIR CONDITIONER-AUTO

 1
90010-01142

NCP13#

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52132

NCP13#

 1
55906-52132

NCP131..ARL,GCC

FRONT AIR CONDITIONER-AUTO

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-52130

NCP13#..RHD

 1
55908-52130

NCP131..ARL

FRONT AIR CONDITIONER-AUTO

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52120

NCP131;NCP130..ARL,GEN

 1
55909-52120

NCP131..ARL,GCC

FRONT AIR CONDITIONER-AUTO

 1
Linked diagrams
5501

ILLUST NO. 1 OF 3(1108- )NCP131..ARL

Click highlighted areas on diagram

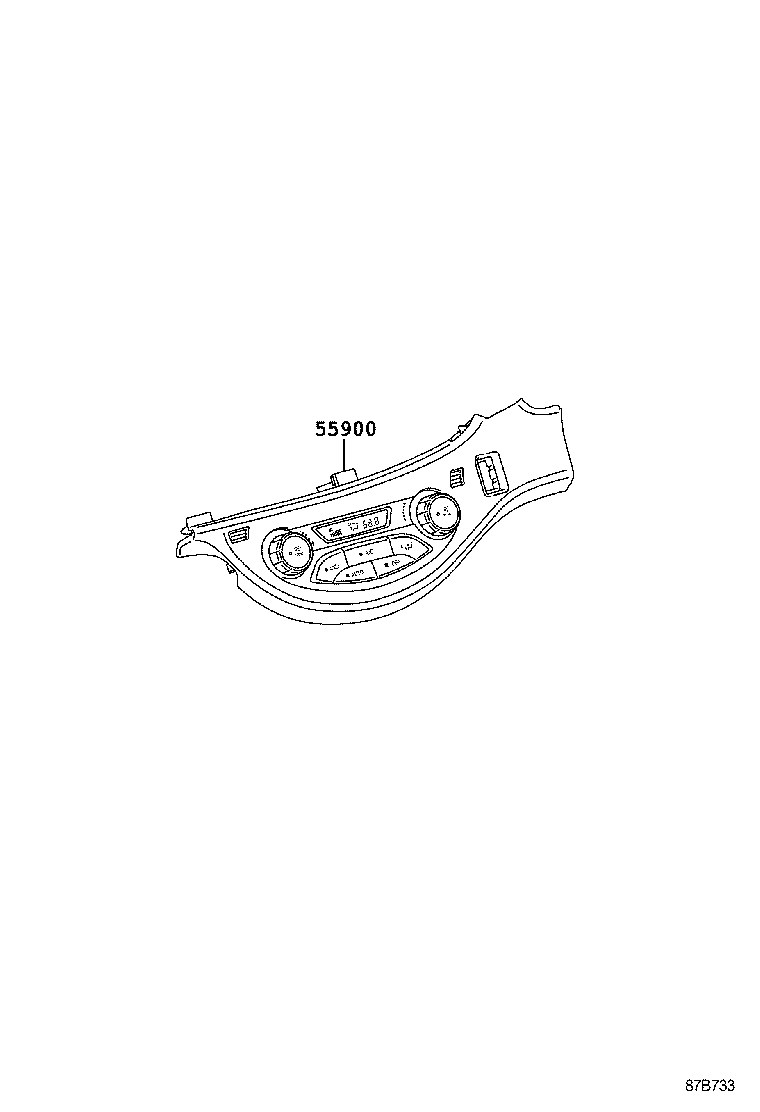

CONTROL PANEL---AUTO

diagram 55900
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-52570

NCP131..ARL

FRONT AIR CONDITIONER-AUTO

 1

ILLUST NO. 2 OF 3(1108- )RHD

Click highlighted areas on diagram

AIR DUCT

diagram 55840C 55843A 55844 55870B 55950G 87201 87211 87211A 9011906942 9018305094 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55840C - DUCT ASSY, HEATER TO REGISTER, NO.6
55840-52101

NCP13#..RHD

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-52350

NCP13#..RHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-52260

NCP13#..RHD

 1
55870B - DUCT ASSY, HEATER TO REGISTER
55870-52040

NCP13#

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-52170

NCP13#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-52140

NCP13#..RHD

 1
87211 - DUCT, AIR, NO.1
87211-52080

NCP13#..RHD

 1
87211A - DUCT, AIR, NO.2
87211-52050

NCP13#..RHD

 1
Common parts
90119-06942
90183-05094
93568-55014

ILLUST NO. 3 OF 3(1108- )RHD

Click highlighted areas on diagram

SENSOR

diagram 8401 88625Q 88790B
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

NCP131..ARL,GCC

FRONT AIR CONDITIONER-AUTO

 1
88790B - THERMISTOR ASSY
88790-22131

NCP13#..ARL,GCC

 1
Linked diagrams
8401
