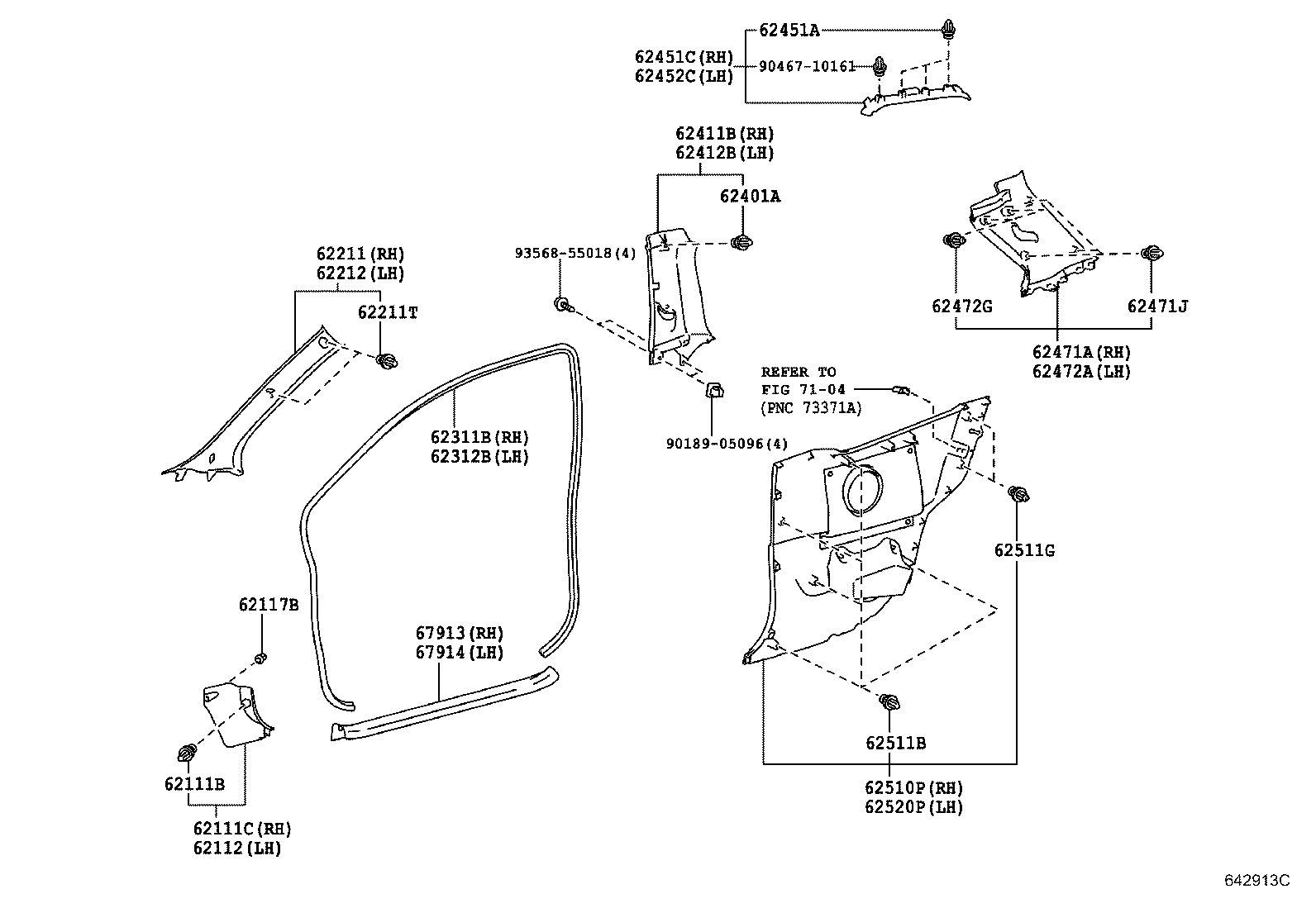

NCP131R-AGPRKQ (2011)
Toyota Yaris
(1108- )3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
NCP13# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-52190C0 |
NCP13# BLACK,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-52290C0 |
NCP13#..RHD BLACK,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
NCP13# |
2 | ||
| 90467-06193C0 |
NCP13# BLACK,TRIM1# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-52250B0 |
NCP130;NCP131..ARL,GEN LT.GRAY,TRIM1# |
1 | ||
| 62211-52270B0 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62211-52280B0 |
NCP131..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62211-52260B0 |
NCP131..ARL AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
NCP13# |
4 | ||
| 90467-10161 |
NCP131..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO-RADIO LESS & 6SPEAKER |
2 | ||
| 90467-10161 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE) |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-52250B0 |
NCP130;NCP131..ARL,GEN LT.GRAY,TRIM1# |
1 | ||
| 62212-52270B0 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62212-52260B0 |
NCP131..ARL AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62212-52280B0 |
NCP131..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-52190 |
NCP13#..3D |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-52160 |
NCP13#..3D |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
NCP13# |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-52190B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-52180B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-10167 |
NCP13#..3D |
6 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62451-52020B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-52020B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-52390B0 |
NCP13#..3D..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62471-52380B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-09236 |
NCP13# |
6 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-52430B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62472-52440B0 |
NCP13#..3D..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 63395-12150 |
NCP13#..3D |
4 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-52120C0 |
NCP13#..3D BLACK,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
NCP13#..3D |
10 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09236 |
NCP13#..3D |
4 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-52090C0 |
NCP13#..3D BLACK,TRIM1# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-52190C0 |
NCP13#..3D BLACK,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-52210C0 |
NCP13#..3D BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90189-05096 | ||||
| 90467-10161 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 7104 | ||||

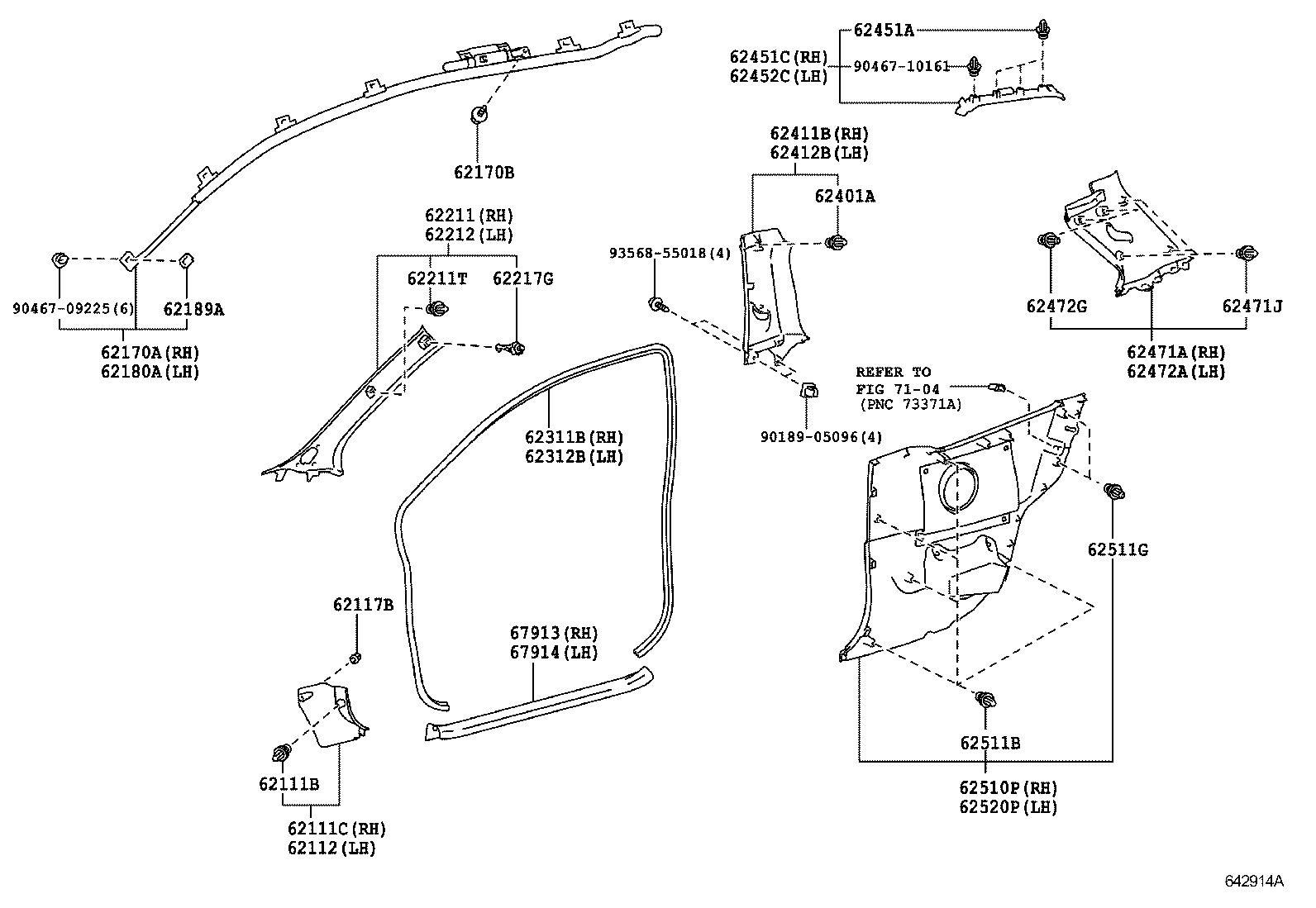

(1108- )3D..ARL
W(SRS CURTAIN SHIELD AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
NCP13# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-52190C0 |
NCP13# BLACK,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-52290C0 |
NCP13#..RHD BLACK,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
NCP13# |
2 | ||
| 90467-06193C0 |
NCP13# BLACK,TRIM1# |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-52120 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE) |
2 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-52120 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-20010 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE) |
12 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-52250B0 |
NCP130;NCP131..ARL,GEN LT.GRAY,TRIM1# |
1 | ||
| 62211-52270B0 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62211-52280B0 |
NCP131..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62211-52260B0 |
NCP131..ARL AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
NCP13# |
4 | ||
| 90467-10161 |
NCP131..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO-RADIO LESS & 6SPEAKER |
2 | ||
| 90467-10161 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE) |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-52250B0 |
NCP130;NCP131..ARL,GEN LT.GRAY,TRIM1# |
1 | ||
| 62212-52270B0 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62212-52260B0 |
NCP131..ARL AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62212-52280B0 |
NCP131..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-52030 |
NCP131..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO-RADIO LESS & 6SPEAKER,LH |
1 | ||
| 62217-52050 |
NCP131..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO-RADIO LESS & 6SPEAKER,RH |
1 | ||
| 62217-52030 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE),LH |
1 | ||
| 62217-52050 |
NCP13#..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE),RH |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-52190 |
NCP13#..3D |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-52160 |
NCP13#..3D |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
NCP13# |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-52190B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-52180B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-10167 |
NCP13#..3D |
6 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62451-52020B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-52020B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-52390B0 |
NCP13#..3D..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62471-52380B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-09236 |
NCP13# |
6 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-52430B0 |
NCP13#..3D LT.GRAY,TRIM1# |
1 | ||
| 62472-52440B0 |
NCP13#..3D..ARL SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE),LT.GRAY,TRIM1# |
1 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 63395-12150 |
NCP13#..3D |
4 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-52120C0 |
NCP13#..3D BLACK,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
NCP13#..3D |
10 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09236 |
NCP13#..3D |
4 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-52090C0 |
NCP13#..3D BLACK,TRIM1# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-52190C0 |
NCP13#..3D BLACK,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-52210C0 |
NCP13#..3D BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90189-05096 | ||||
| 90467-09225 | ||||
| 90467-10161 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 7104 | ||||
