NCP130R-AHPRKQ (2017)

Toyota Yaris

Production Jan 2017 - Jan 2020
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

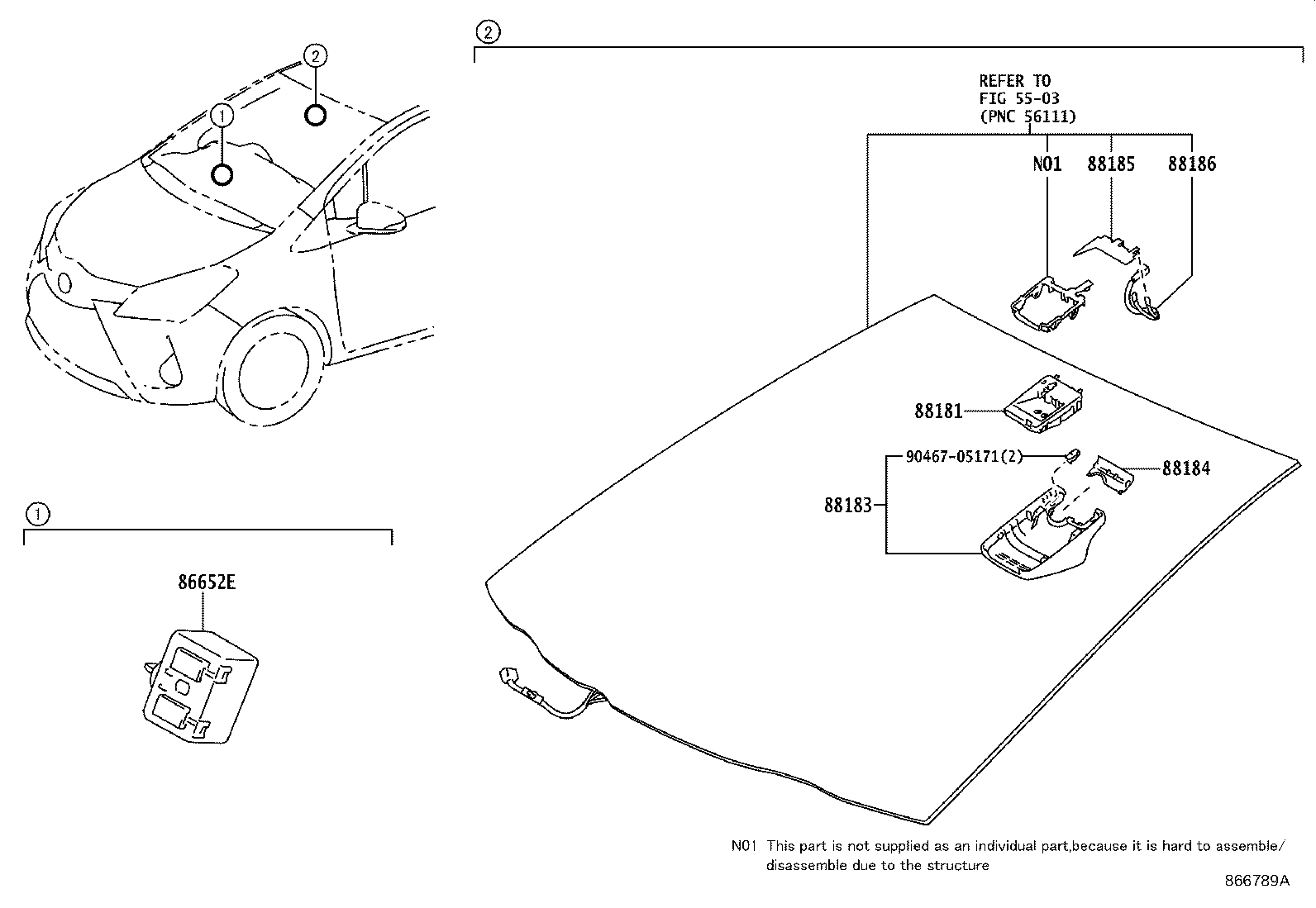

Click highlighted areas on diagram

diagram 5503 86652E 88181 88183 88184 88185 88186 9046705171
Part # Description Qty Price
86652E - BUZZER, PRE-COLLISION CITY
86652-50010

NCP13#

PRE-COLLISION SYSTEM-WITH

 1
88181 - SENSOR, PRE-COLLISION CITY
88181-0D020

NCP13#

PRE-COLLISION SYSTEM-WITH,(L)

 1
88181-52130

NCP13#

PRE-COLLISION SYSTEM-WITH

 1
88181-52040

NCP13#

PRE-COLLISION SYSTEM-WITH,(J)

 1
88183 - COVER, PRE-COLLISION CITY
88183-52020

NCP13#

PRE-COLLISION SYSTEM-WITH

 1
88183-52060

NCP13#

PRE-COLLISION SYSTEM-WITH

 1
88184 - COVER, PRE-COLLISION CITY, 2ND
88184-52020

NCP13#

PRE-COLLISION SYSTEM-WITH

 1
88184-52060

NCP13#

PRE-COLLISION SYSTEM-WITH

 1
88185 - HEATER, PRE-COLLISION CITY
88185-52040

NCP13#

PRE-COLLISION SYSTEM-WITH

 1
88186 - WIRE, PRE-COLLISION CITY HEATER
88186-52040

NCP13#

PRE-COLLISION SYSTEM-WITH

 1
Common parts
90467-05171
Linked diagrams
5503
