NCP130R-AHPRKQ (2017)
Toyota Yaris
Production
Jan 2017
-
Jan 2020
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )

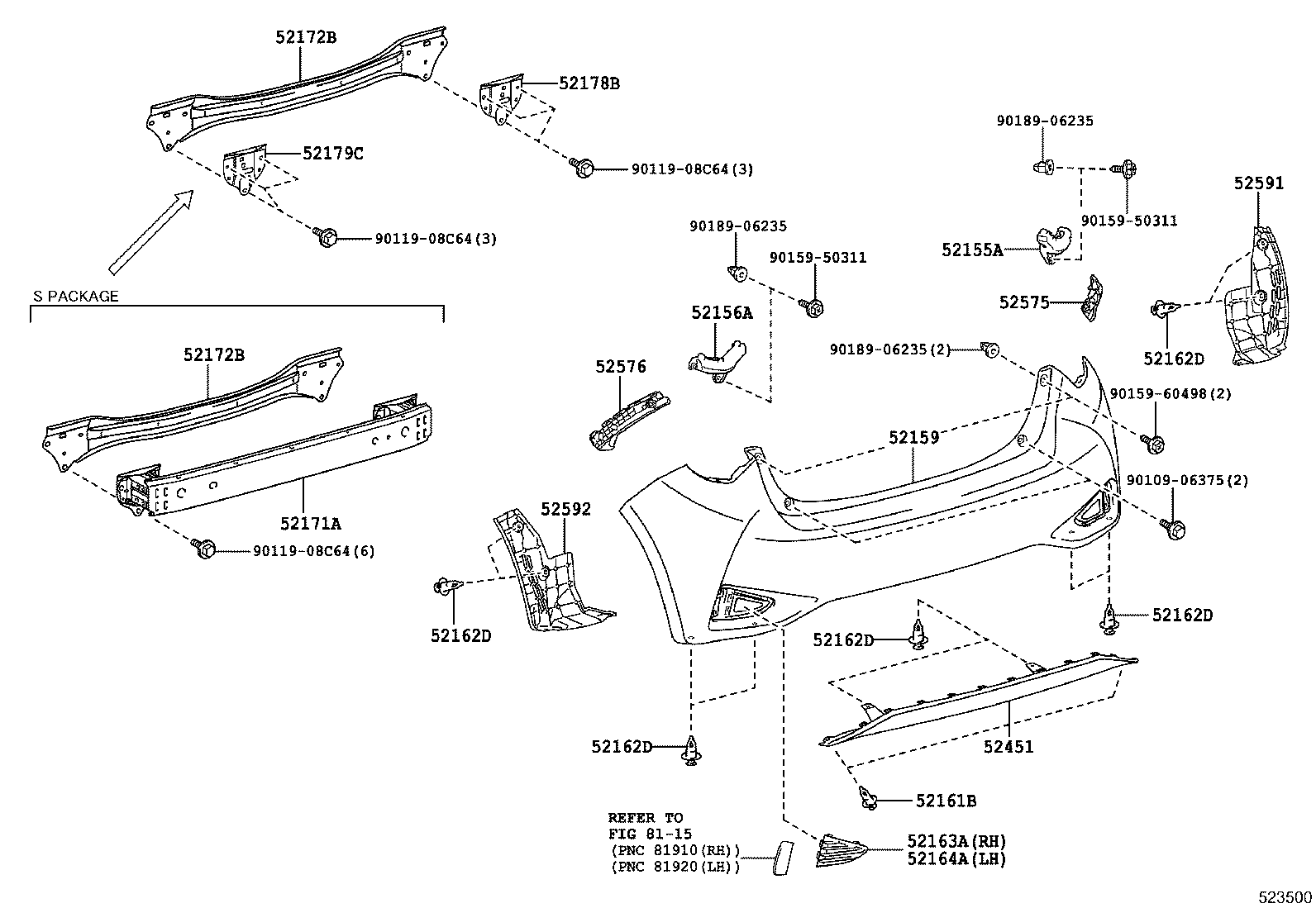

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-52150 |
NCP13# |
1 | ||
| 52155-52120 |
NCP13# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-52150 |
NCP13# |
1 | ||
| 52156-52120 |
NCP13# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52957 |
NCP13#..ARL,GEN PAINT REQ. |
1 | ||
| 52159-52983 |
NCP13# |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52161-16010 |
NCP13# |
2 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP13# |
10 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-52080 |
NCP13#..ARL,GEN |
1 | ||
| 52163-52120 |
NCP13# |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-52120 |
NCP13# |
1 | ||
| 52164-52080 |
NCP13#..ARL,GEN |
1 | ||
| 52172B - REINFORCEMENT, REAR BUMPER, NO.2 | ||||
| 52172-52020 |
NCP13#..ARL,GCC |
1 | ||
| 52172-52020 |
NCP13# |
1 | ||
| 52172B - REINFORCEMENT, REAR BUMPER, NO.2 | ||||
| 52172-52020 |
NCP13#..ARL,GCC |
1 | ||
| 52172-52020 |
NCP13# |
1 | ||
| 52178B - PLATE, REAR BUMPER REINFORCEMENT, NO.1 | ||||
| 52163-52080 |
NCP13# |
1 | ||
| 52179C - PLATE, REAR BUMPER REINFORCEMENT, NO.2 | ||||
| 52164-52080 |
NCP13# |
1 | ||
| 52451 - GUARD, REAR BUMPER | ||||
| 52453-52050 |
NCP13# |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52170 |
NCP13# |
1 | ||
| 52575-52210 |
NCP13# |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-52190 |
NCP13# |
1 | ||
| 52576-52150 |
NCP13# |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52300 |
NCP13# |
1 | ||
| 52591-52380 |
NCP13# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52370 |
NCP13# |
1 | ||
| 52592-52290 |
NCP13# |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| 90159-60498 | ||||
| 90189-06235 | ||||
| Linked diagrams | ||||
| 8115 | ||||
