NCP130R-AHPRK (2011)
Toyota Yaris
ILLUST NO. 2 OF 2(1108- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

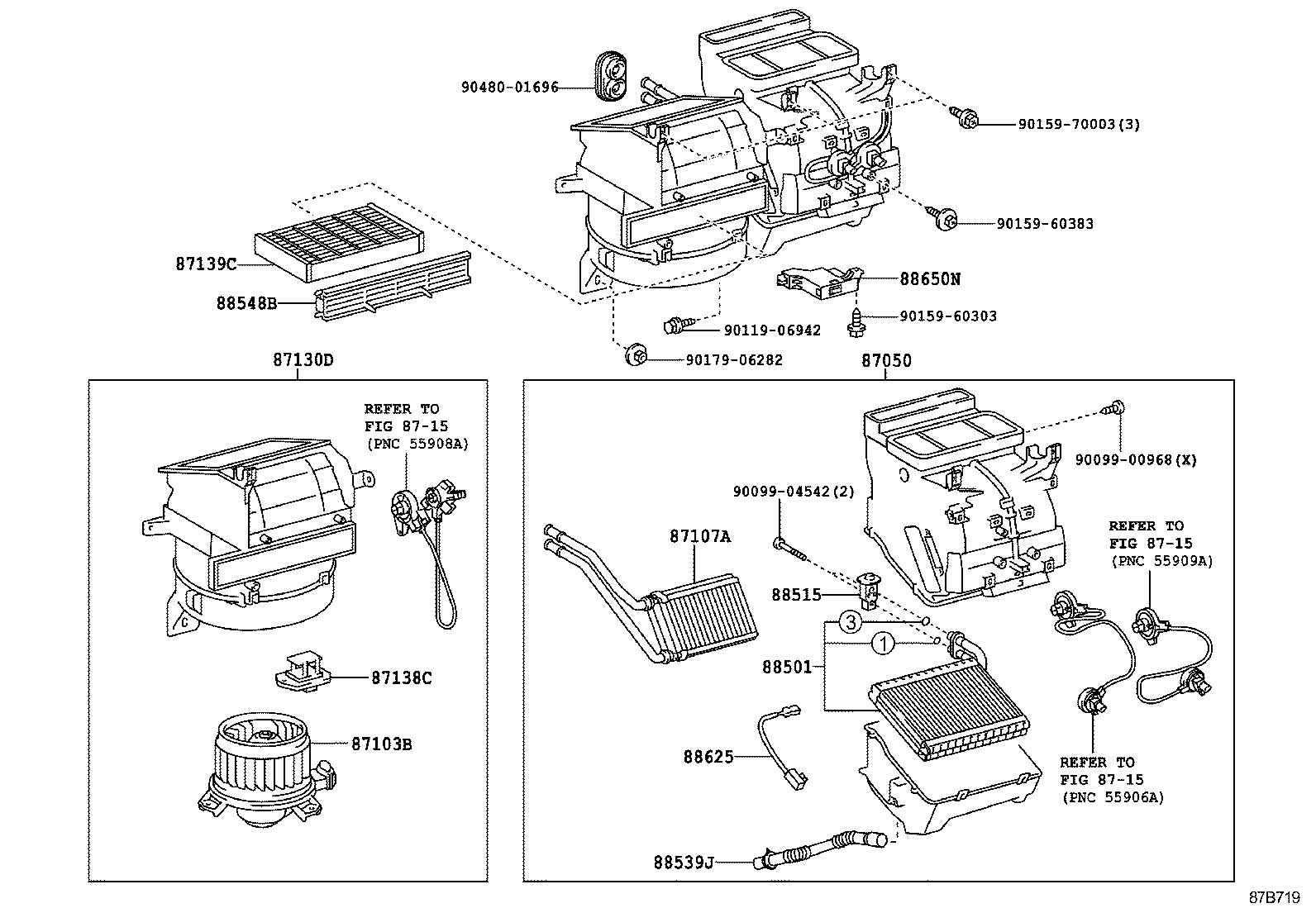

ILLUST NO. 1 OF 2(1108- )RHD
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52051 |
NCP130..RHD..GEN |
1 | ||
| 87050-52131 |
NCP130..RHD..GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52121 |
NCP13#..RHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
NCP131;NCP130..ARL,GEN |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52180 |
NCP130..RHD..GEN |
1 | ||
| 87130-52050 |
NCP130..RHD..GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
NCP13# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52020 |
NCP13# STANDARD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52102 |
NCP13#..GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88501-52103 |
NCP13#..GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-68010 |
NCP13#..GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52030 |
NCP13#..RHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP13# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
NCP13#..GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52720 |
NCP13#..GEN |
1 | ||
| 88650-52880 |
NCP131..GEN;NCP130..GCC,GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88650-52680 |
NCP131..GEN;NCP130..GCC,GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||

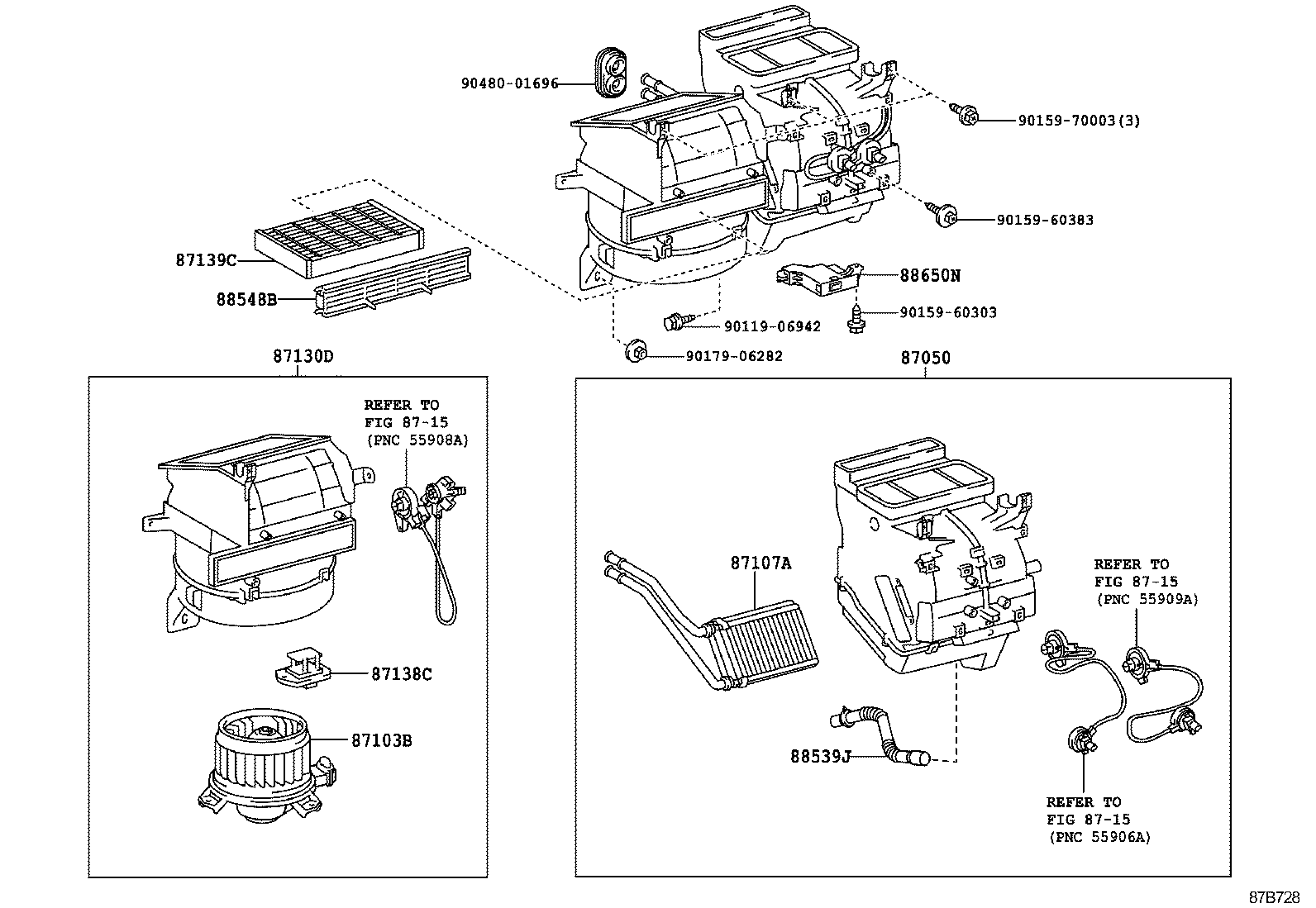

ILLUST NO. 1 OF 2(1108- )RHD..GEN
MANUAL HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-52051 |
NCP130..RHD..GEN |
1 | ||
| 87050-52131 |
NCP130..RHD..GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52121 |
NCP13#..RHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52061 |
NCP131;NCP130..ARL,GEN |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-52180 |
NCP130..RHD..GEN |
1 | ||
| 87130-52050 |
NCP130..RHD..GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52030 |
NCP13# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52020 |
NCP13# STANDARD |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-52030 |
NCP13#..RHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52040 |
NCP13# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52720 |
NCP13#..GEN |
1 | ||
| 88650-52880 |
NCP131..GEN;NCP130..GCC,GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88650-52680 |
NCP131..GEN;NCP130..GCC,GEN FRONT AIR CONDITIONER-MANUAL |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90480-01696 | ||||
| Linked diagrams | ||||
| 8715 | ||||
