NCP130R-AHPRK (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )RHD

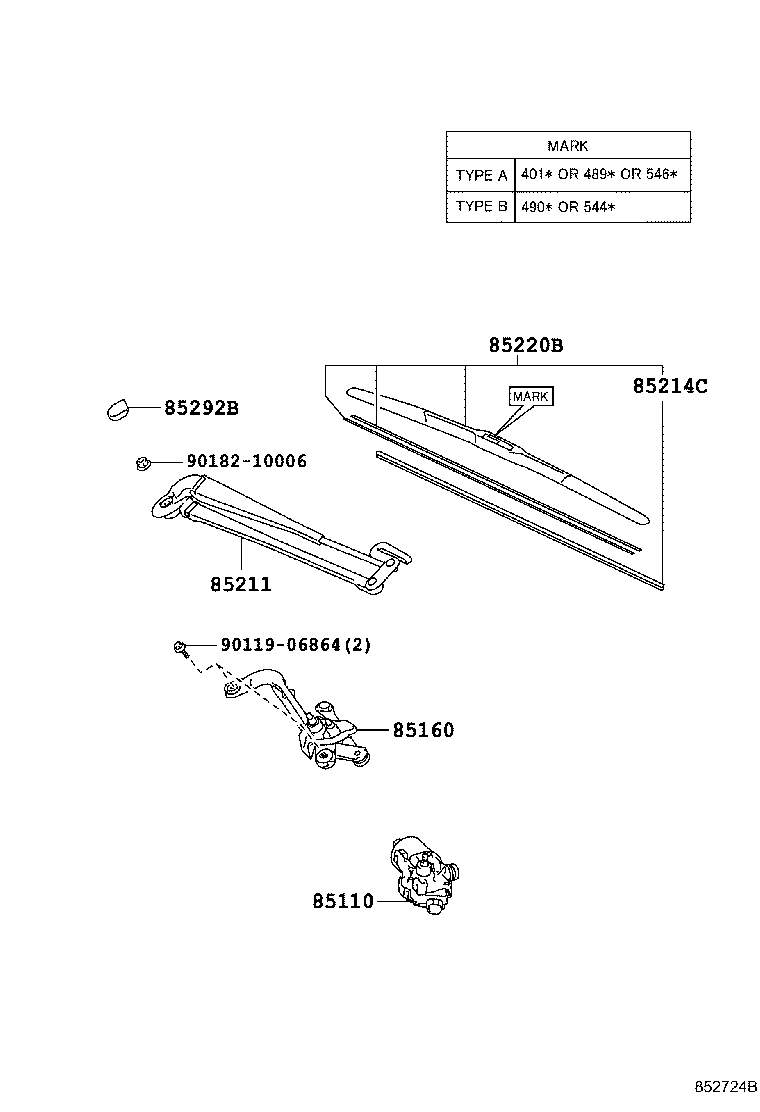

Click highlighted areas on diagram

diagram 85110 85160 85211 85214C 85220B 85292B 9011906864 9018210006
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-52600

NCP13#..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-52580

NCP13#..RHD

 1
85211 - ARM, FRONT WIPER
85211-52391

NCP13#..RHD

 1
85211-52390

NCP13#..RHD

 1
85211-52520

NCP13#..RHD

 1
85214C - RUBBER, WIPER BLADE, CENTER
85214-52070

NCP13#..RHD

TYPE B

 1
85214-52080

NCP13#..RHD

TYPE A

 1
85214-52070

NCP13#..RHD

 1
85220B - BLADE, FRONT WIPER
85212-52260

NCP13#..RHD

TYPE A

 1
85212-52270

NCP13#..RHD

TYPE B

 1
85212-52271

NCP13#..RHD

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NCP13#..RHD

 1
85292-52060

NCP13#..RHD

 1
Common parts
90119-06864
90182-10006
