NCP130R-AHPRK (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1108- )5D

Click highlighted areas on diagram

FRONT

diagram 73119 73210 7321475010 73219 73220 73230 73233 73233C 73240 9010511053 9010511053 9010911059 9010911059 9010911059 9010911059 9017811002 9017811002 9167380616 9167380616
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NCP13#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52740C0

NCP13#..5D

BLACK,TRIM1#

 1
73210-52741C0

NCP13#..5D

BLACK,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

NCP13#

BLACK

 1
73219-33030

NCP13#

BEIGE

 1
73219-33020

NCP13#

GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52750C0

NCP13#..5D

BLACK,TRIM1#

 1
73220-52751C0

NCP13#..5D

BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52840C0

NCP130..RHD

BLACK,TRIM1#

 1
73230-52550C0

NCP130..RHD

REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),BLACK,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C0

NCP13#..5D

BLACK,TRIM1#,REFER TO ILLUST.

 1
73233-52010C0

NCP13#..5D

BLACK,TRIM1#,REFER TO ILLUST.

 1
73233C - COVER, LAP BELT OUTER ANCHOR, LH
73233-60020C0

NCP13#..5D

BLACK,TRIM1#,REFER TO ILLUST.

 1
73233-52010C0

NCP13#..5D

BLACK,TRIM1#,REFER TO ILLUST.

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52830C0

NCP130..RHD..GEN

BLACK,TRIM1#

 1
Common parts
73214-75010
90105-11053
90109-11059
90178-11002
91673-80616

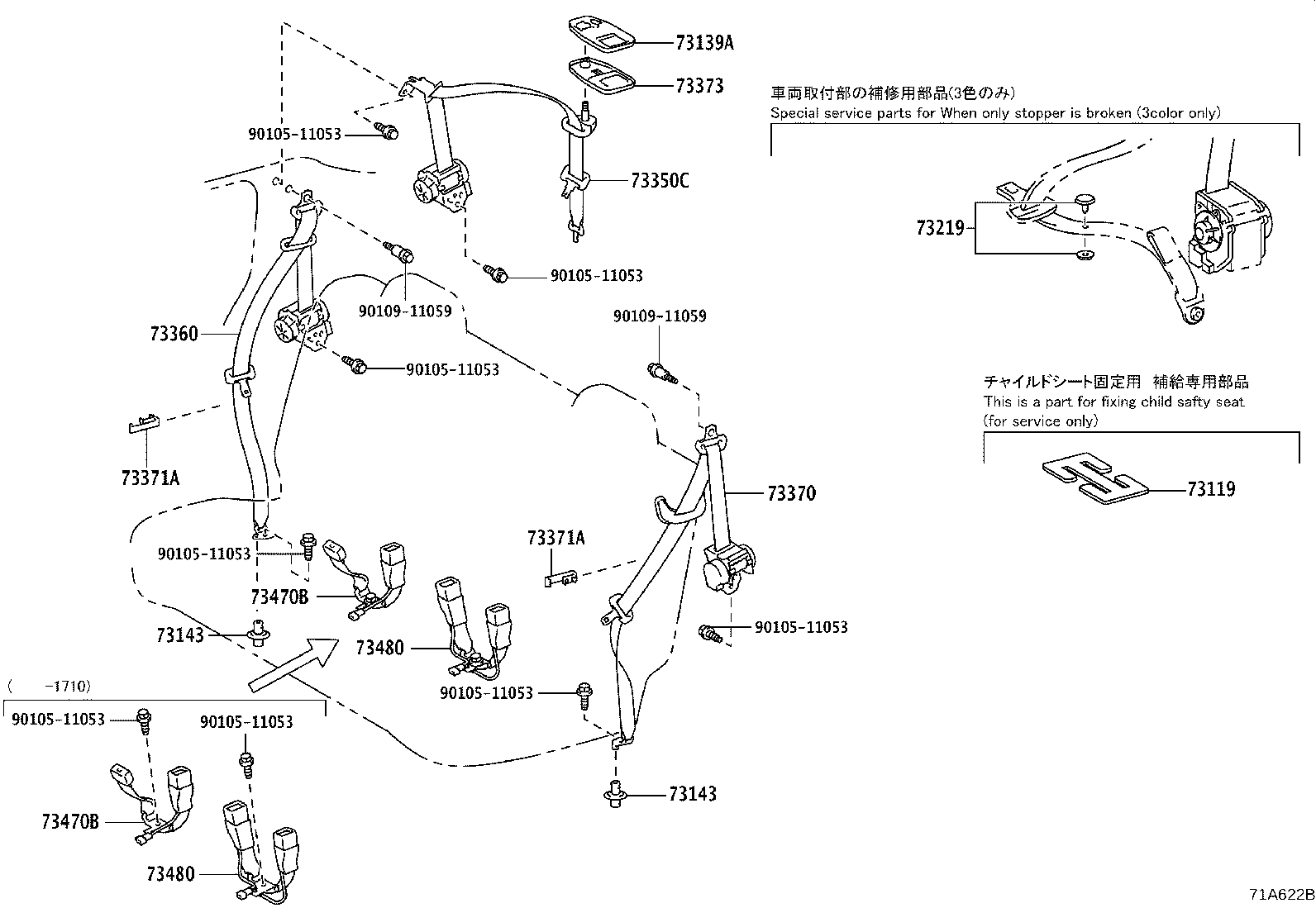

ILLUST NO. 2 OF 2(1108- )

Click highlighted areas on diagram

REAR

diagram 73119 73139A 73143 73143 73219 73350C 73360 73370 73371A 73371A 73373 73470B 73470B 73480 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010911059 9010911059
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NCP13#

 1
73139A - COVER, SEAT BELT ANCHOR
73139-52060B0

NCP13#

LT.GRAY,TRIM1#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP13#

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP13#

 2
73219 - STOPPER, TONGUE PLATE
73219-33010

NCP13#

BLACK

 1
73219-33030

NCP13#

BEIGE

 1
73219-33020

NCP13#

GRAY

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73310-52070C1

NCP13#

BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-52330C2

NCP13#..GCC,GEN

BLACK,TRIM1#

 1
73360-52330C1

NCP13#..GCC,GEN

BLACK,TRIM1#

 1
73360-52340C2

NCP13#..GCC,GEN

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-52290C2

NCP13#..GCC,GEN

BLACK,TRIM1#

 1
73370-52300C2

NCP13#..GCC,GEN

BLACK,TRIM1#

 1
73370-52290C1

NCP13#..GCC,GEN

BLACK,TRIM1#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP13#

BLACK,TRIM1#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP13#

BLACK,TRIM1#

 2
73373 - COVER, REAR SEAT SHOULDER BELT
73137-52060B0

NCP13#

LT.GRAY,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52430C1

NCP13#

BLACK,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52430C1

NCP13#

BLACK,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52370C1

NCP13#

BLACK,TRIM1#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52370C1

NCP13#

BLACK,TRIM1#

 1
Common parts
90105-11053
90109-11059
