NCP130R-AHPRK (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1108-1701)

Click highlighted areas on diagram

DOOR TRIM

diagram 67751 67751A 67751A 67751A 67751A 67751B 67751B 74811D
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67751-52180C0

NCP13#

BLACK,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

NCP13#

 9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

NCP13#

 9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

NCP13#

 9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10161

NCP13#

 9
67751B - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-58010

NCP13#

 2
67751B - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-58010

NCP13#

 2
74811D - HANDLE, DOOR PULL
74811-13010C0

NCP13#

BLACK,TRIM1#

 1

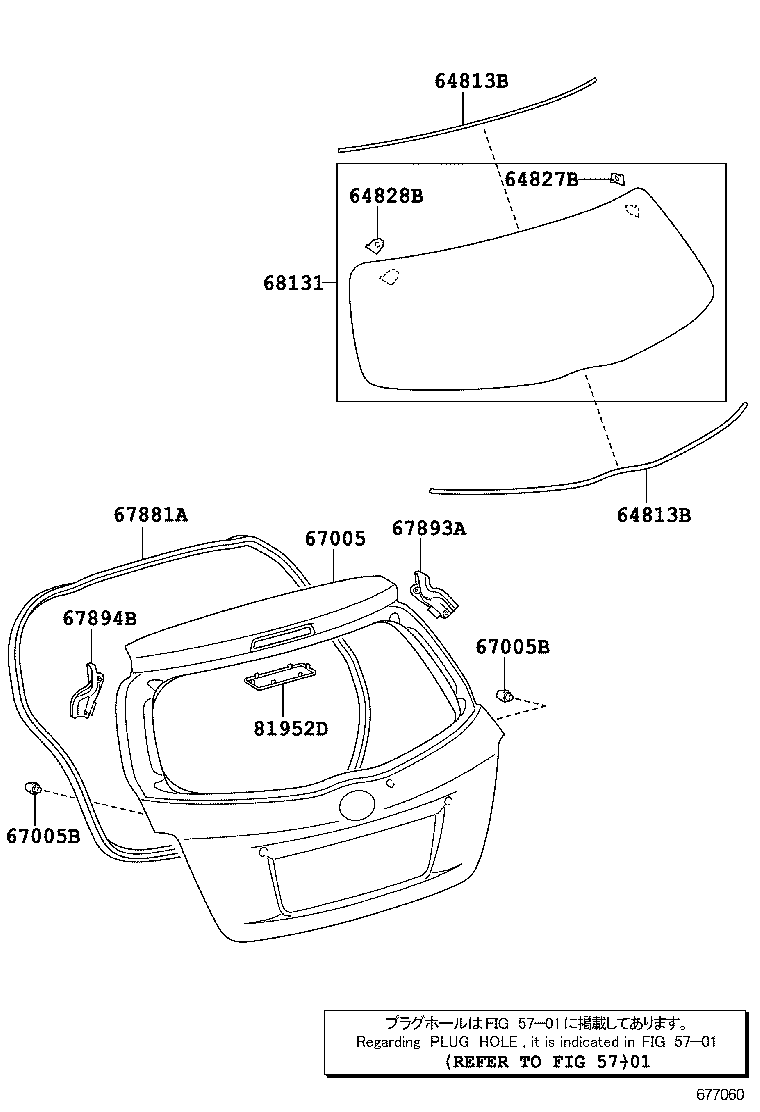

ILLUST NO. 1 OF 2(1108-1701)

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 64813B 64813B 64827B 64828B 67005 67005B 67005B 67881A 67893A 67894B 68131 81952D
Part # Description Qty Price
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-50140

NCP13#

 2
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-50140

NCP13#

 2
64827B - CLIP, BACK WINDOW GLASS, RH
64827-52090

NCP13#

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-52090

NCP13#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52C20

NCP13#

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09146

NCP13#

 2
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09146

NCP13#

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-52180

NCP13#

 1
67881-52210

NCP13#

 1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-52090

NCP13#

 1
67893-52091

NCP13#

 1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-52091

NCP13#

 1
67894-52090

NCP13#

 1
68131 - GLASS, BACK DOOR
68105-52600

NCP13#..GCC,GEN

*UVCEHT,T=3.1,GREEN,REAR WINDOW DEFOGGER-WITH(TIMER)

 1
68105-52610

NCP13#..GCC,GEN

*UVCT,T=3.1,GREEN

 1
81952D - COVER, REAR LAMP
81952-52020

NCP13#

 1
Linked diagrams
5701
