NCP130R-AHPRK (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1407)

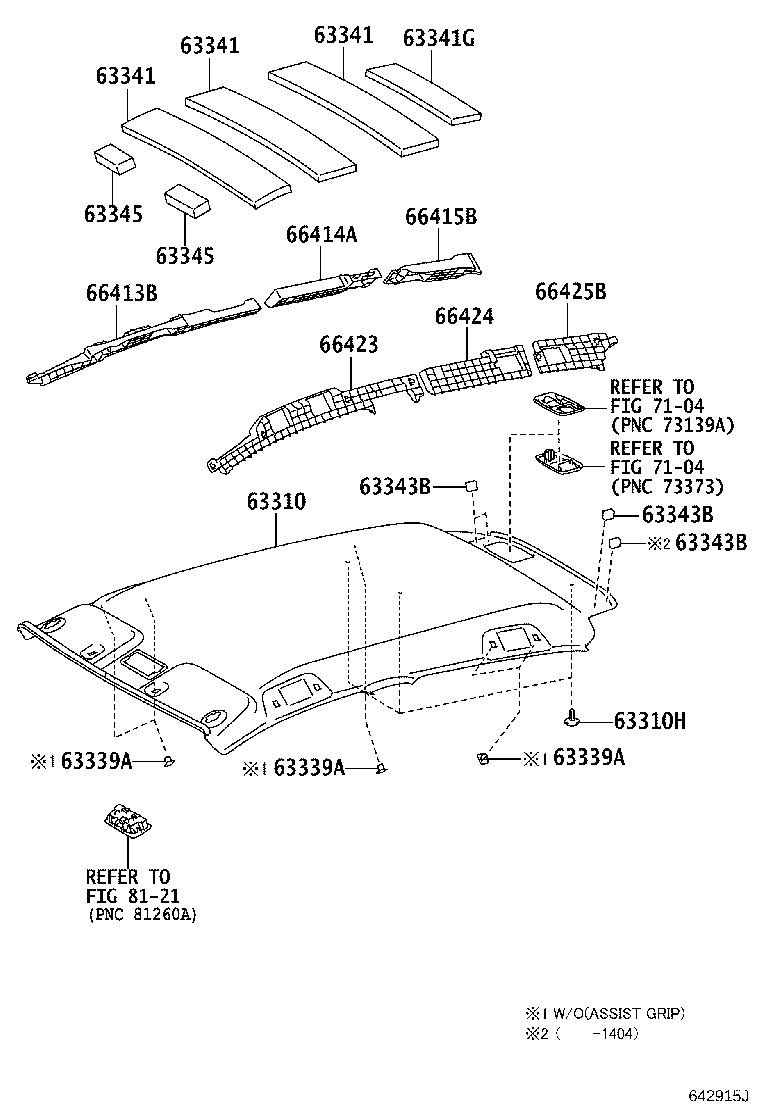

Click highlighted areas on diagram

diagram 63310 63310H 63339A 63339A 63339A 63341 63341 63341 63341G 63343B 63343B 63343B 63345 63345 66413B 66414A 66415B 66423 66424 66425B 7104 7104 8121
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-52A81B0

NCP13#..5D

LT.GRAY,TRIM1#

 1
63310-52A82B0

NCP13#..5D

LT.GRAY,TRIM1#

 1
63310-52A80B0

NCP13#..5D

LT.GRAY,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B0

NCP13#

LT.GRAY,TRIM1#

 3
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030B0

NCP130;NCP131..LHD

LT.GRAY,TRIM1#

 6
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030B0

NCP130;NCP131..LHD

LT.GRAY,TRIM1#

 6
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030B0

NCP130;NCP131..LHD

LT.GRAY,TRIM1#

 6
63341 - PAD, ROOF SILENCER, NO.1
63341-52250

NCP13#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-52250

NCP13#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-52250

NCP13#

 3
63341G - PAD, ROOF SILENCER
63341-52290

NCP13#

 1
63343B - PAD, ROOF SILENCER, REAR
63343-52081

NCP13#

LH

 2
63343-52080

NCP13#

RH

 2
63343-52080

NCP13#

 4
63343B - PAD, ROOF SILENCER, REAR
63343-52081

NCP13#

LH

 2
63343-52080

NCP13#

RH

 2
63343-52080

NCP13#

 4
63343B - PAD, ROOF SILENCER, REAR
63343-52081

NCP13#

LH

 2
63343-52080

NCP13#

RH

 2
63343-52080

NCP13#

 4
63345 - PAD, ROOF SILENCER, NO.5
63345-52010

NCP13#

 2
63345 - PAD, ROOF SILENCER, NO.5
63345-52010

NCP13#

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52290

NCP13#..5D

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52300

NCP13#..5D

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66414-52310

NCP13#..5D

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52290

NCP13#..5D

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52290

NCP13#..5D

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66424-52300

NCP13#..5D

 1
Linked diagrams
7104
8121
