NCP130R-AHPRK (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1204) ; (1204- )2NZFE

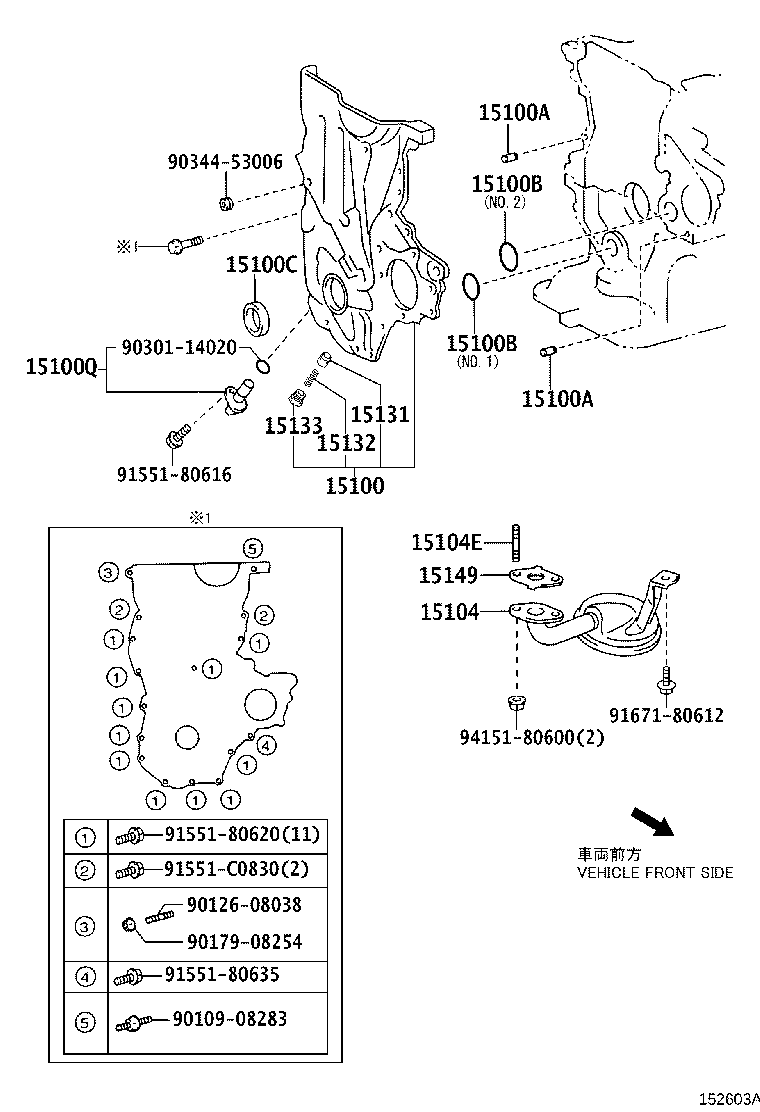

Click highlighted areas on diagram

diagram 15100 15100A 15100A 15100B 15100B 15100C 15100Q 15104 15104E 15131 15132 15133 15149 9010908283 9012608038 9017908254 9030114020 9034453006 9155180616 9155180620 9155180635 91551C0830 9167180612 9415180600
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-21032

2NZFE..NCP130

 1
15100-21030

2NZFE..NCP130

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003

1NZFE,2NZFE..NCP13#

 2
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003

1NZFE,2NZFE..NCP13#

 2
15100B - RING, O(FOR OIL PUMP)
90301-42006

1NZFE,2NZFE..NCP13#

NO.2

 1
90301-31012

1NZFE,2NZFE..NCP13#

NO.1

 1
12151-21010

1NZFE,2NZFE..NCP13#

NO.1

 1
11497-21010

1NZFE,2NZFE..NCP13#

NO.2

 1
15100B - RING, O(FOR OIL PUMP)
90301-42006

1NZFE,2NZFE..NCP13#

NO.2

 1
90301-31012

1NZFE,2NZFE..NCP13#

NO.1

 1
12151-21010

1NZFE,2NZFE..NCP13#

NO.1

 1
11497-21010

1NZFE,2NZFE..NCP13#

NO.2

 1
15100C - SEAL(FOR OIL PUMP)
90311-25021

1NZFE,2NZFE..NCP13#

 1
90311-25032

1NZFE,2NZFE..NCP13#

 1
90311-25033

1NZFE,2NZFE..NCP13#

 1
15100Q - SENSOR, CRANK POSITION
90919-05081

1NZFE,2NZFE..NCP13#

 1
90919-05087

1NZFE,2NZFE..NCP13#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-21022

1NZFE,2NZFE..NCP13#

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-06021

1NZFE,2NZFE..NCP13#

 2
15131 - VALVE, OIL PUMP RELIEF
15131-21020

1NZFE,2NZFE..NCP13#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-21020

1NZFE,2NZFE..NCP13#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-21030

1NZFE,2NZFE..NCP13#

 1
15149 - GASKET, OIL STRAINER FLANGE
16258-21030

1NZFE,2NZFE..NCP13#

 1
Common parts
90109-08283
90126-08038
90179-08254
90301-14020
90344-53006
91551-80616
91551-80620
91551-80635
91551-C0830
91671-80612
94151-80600
