NCP130R-AHMRKQ (2017)
Toyota Yaris
Production
Jan 2017
-
Jan 2020
Engine
2NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )
Click highlighted areas on diagram

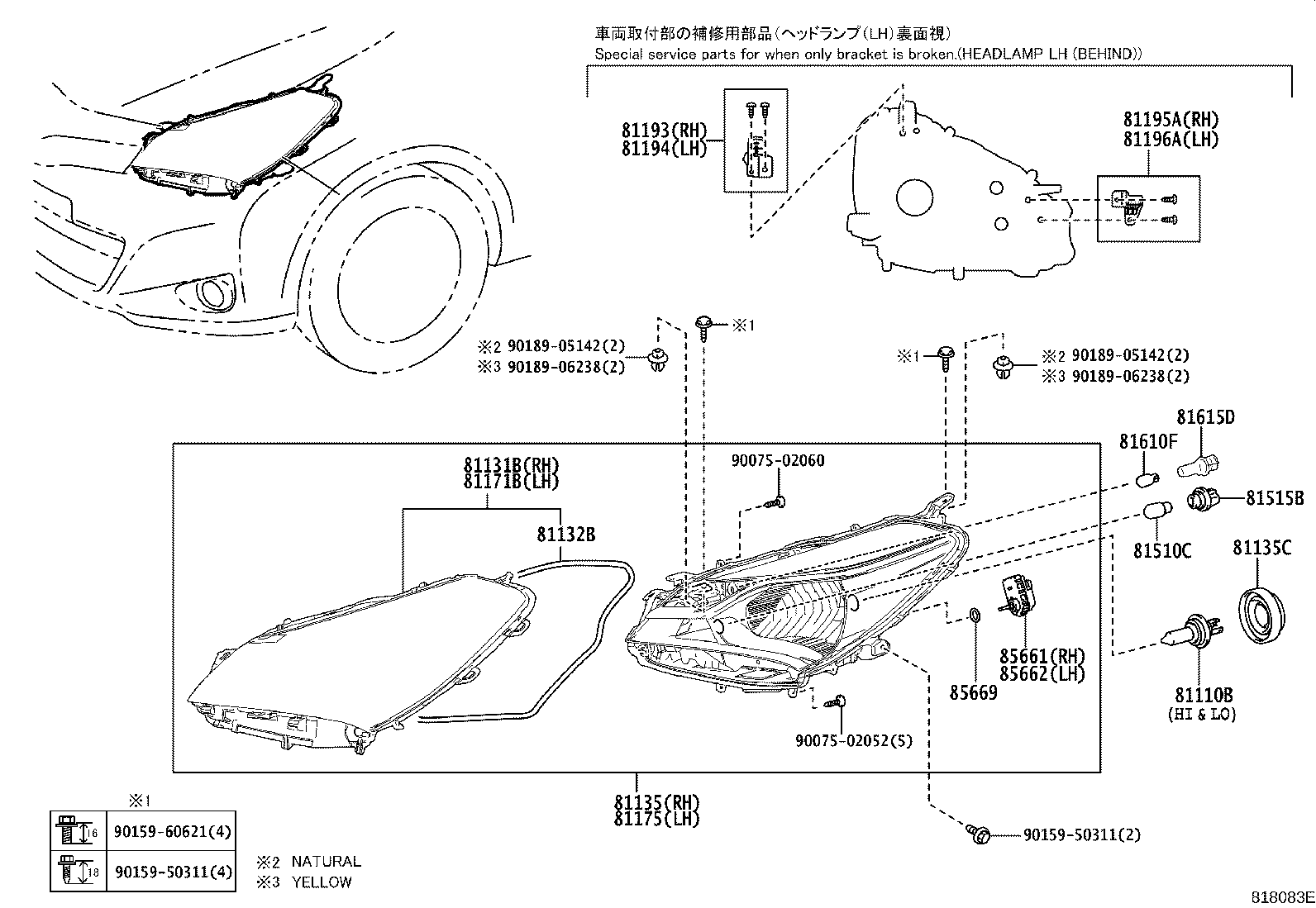

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NCP13# 12V 60/55W,HALOGEN |
2 | ||
| 90981-13058 |
NCP13# 12V 60/55W,HALOGEN |
2 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-52L40 |
NCP13# |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-30E40 |
NCP13# |
2 | ||
| 81132-50590 |
NCP13# |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52L90 |
NCP13# |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 90075-65002 |
NCP13# |
2 | ||
| 90075-65002 |
NCP13# |
2 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-52L40 |
NCP13# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52L90 |
NCP13# |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52200 |
NCP13# |
1 | ||
| 81193-52290 |
NCP13# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52280 |
NCP13# |
1 | ||
| 81194-52200 |
NCP13# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52160 |
NCP13# |
1 | ||
| 81195-52220 |
NCP13# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52160 |
NCP13# |
1 | ||
| 81196-52200 |
NCP13# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
NCP13# 12V 21W,AMBER |
2 | ||
| 90981-15021 |
NCP13# 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
NCP13# |
2 | ||
| 90075-60028 |
NCP13# |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NCP13# 12V 5W |
2 | ||
| 99132-12050 |
NCP13# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NCP13# |
2 | ||
| 90075-60089 |
NCP13# |
2 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90189-05142 | ||||
| 90189-06238 | ||||
(1701- )
Click highlighted areas on diagram

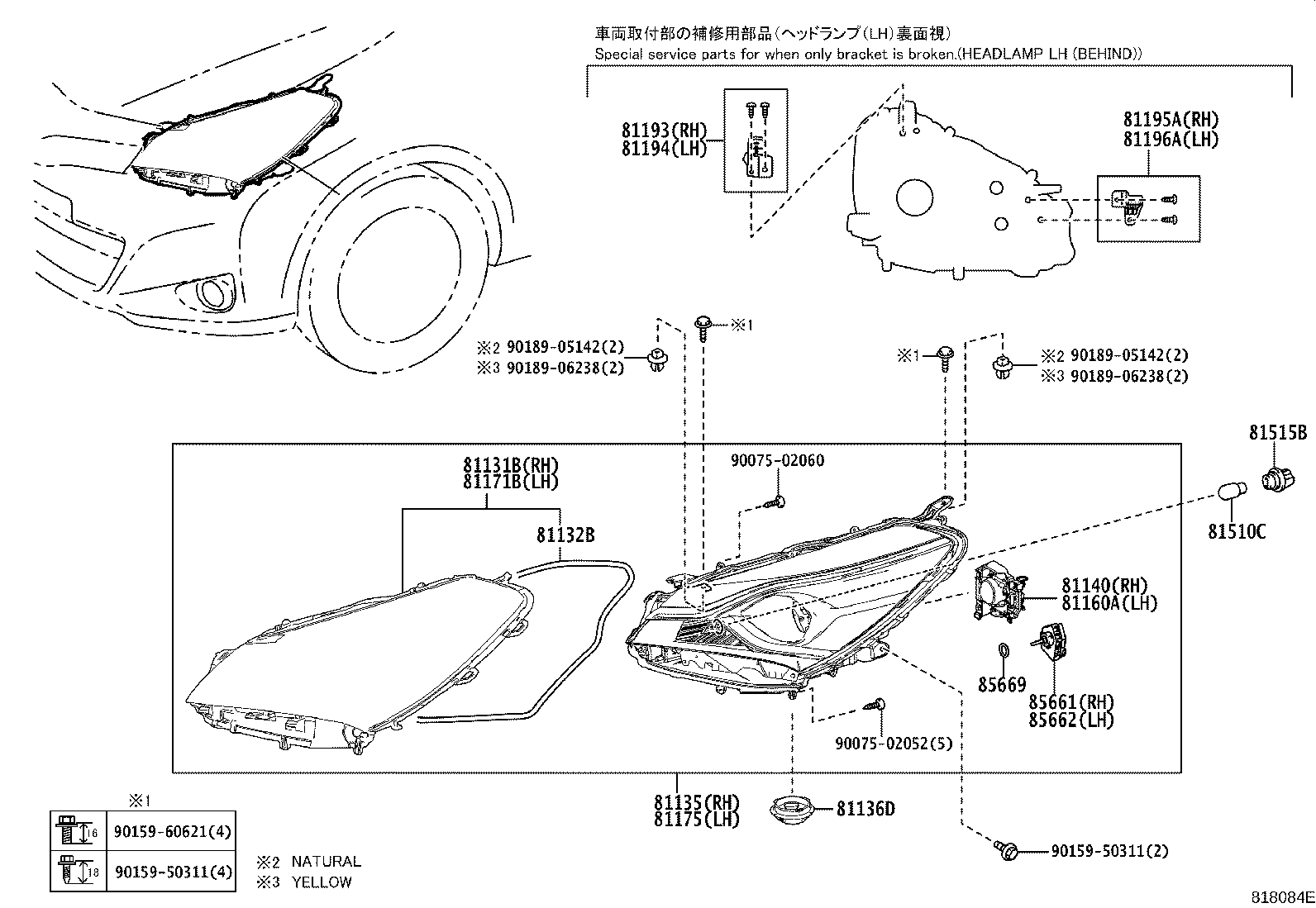

LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-52L40 |
NCP13# |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-30E40 |
NCP13# |
2 | ||
| 81132-50590 |
NCP13# |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52L90 |
NCP13# |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-52L40 |
NCP13# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52L90 |
NCP13# |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52200 |
NCP13# |
1 | ||
| 81193-52290 |
NCP13# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52280 |
NCP13# |
1 | ||
| 81194-52200 |
NCP13# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52160 |
NCP13# |
1 | ||
| 81195-52220 |
NCP13# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52160 |
NCP13# |
1 | ||
| 81196-52200 |
NCP13# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
NCP13# 12V 21W,AMBER |
2 | ||
| 90981-15021 |
NCP13# 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
NCP13# |
2 | ||
| 90075-60028 |
NCP13# |
2 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90189-05142 | ||||
| 90189-06238 | ||||
