NCP130R-AHMRKQ (2017)
Toyota Yaris
Production
Jan 2017
-
Jan 2020
Engine
2NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

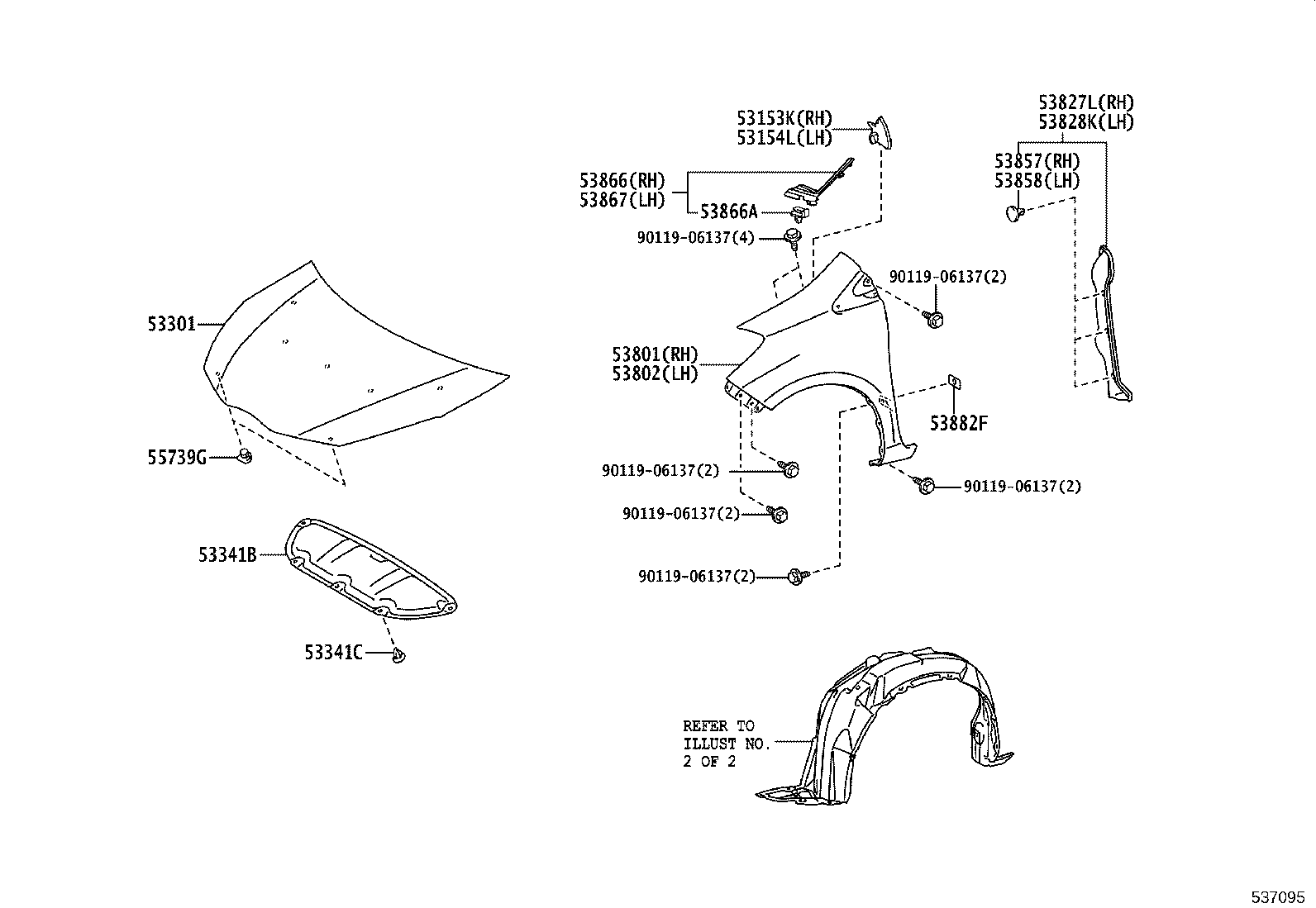

ILLUST NO. 1 OF 2(1701- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153K - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-52030 |
NCP13# |
1 | ||
| 53154L - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-52030 |
NCP13# |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-52310 |
NCP13# |
1 | ||
| 53301-52310 |
NCP13# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-52180 |
NCP13# |
1 | ||
| 53341-52180 |
NCP130..ARL;NCP131..ARL,GCC |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
NCP130..ARL;NCP131..ARL,GCC |
5 | ||
| 90467-09050 |
NCP13# |
5 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-52370 |
NCP13# |
1 | ||
| 53811-52550 |
NCP13# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-52340 |
NCP13# |
1 | ||
| 53812-52550 |
NCP13# |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-52150 |
NCP13# |
1 | ||
| 53827-52150 |
NCP130..ARL;NCP131..ARL,GCC |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-52160 |
NCP13# |
1 | ||
| 53828-52160 |
NCP130..ARL;NCP131..ARL,GCC |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
NCP13# |
3 | ||
| 53857-47011 |
NCP130..ARL;NCP131..ARL,GCC |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
NCP130..ARL;NCP131..ARL,GCC |
3 | ||
| 53857-47011 |
NCP13# |
3 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-52090 |
NCP13# |
1 | ||
| 53866-52140 |
NCP13# |
1 | ||
| 53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL) | ||||
| 55799-52020 |
NCP13# |
2 | ||
| 55799-52020 |
NCP13# |
2 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-52090 |
NCP13# |
1 | ||
| 53867-52160 |
NCP13# |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NCP13# |
2 | ||
| 53882-16030 |
NCP13# |
2 | ||
| 55739G - STOPPER, HOOD | ||||
| 55738-52060 |
NCP13# |
2 | ||
| 55738-52060 |
NCP13# |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||

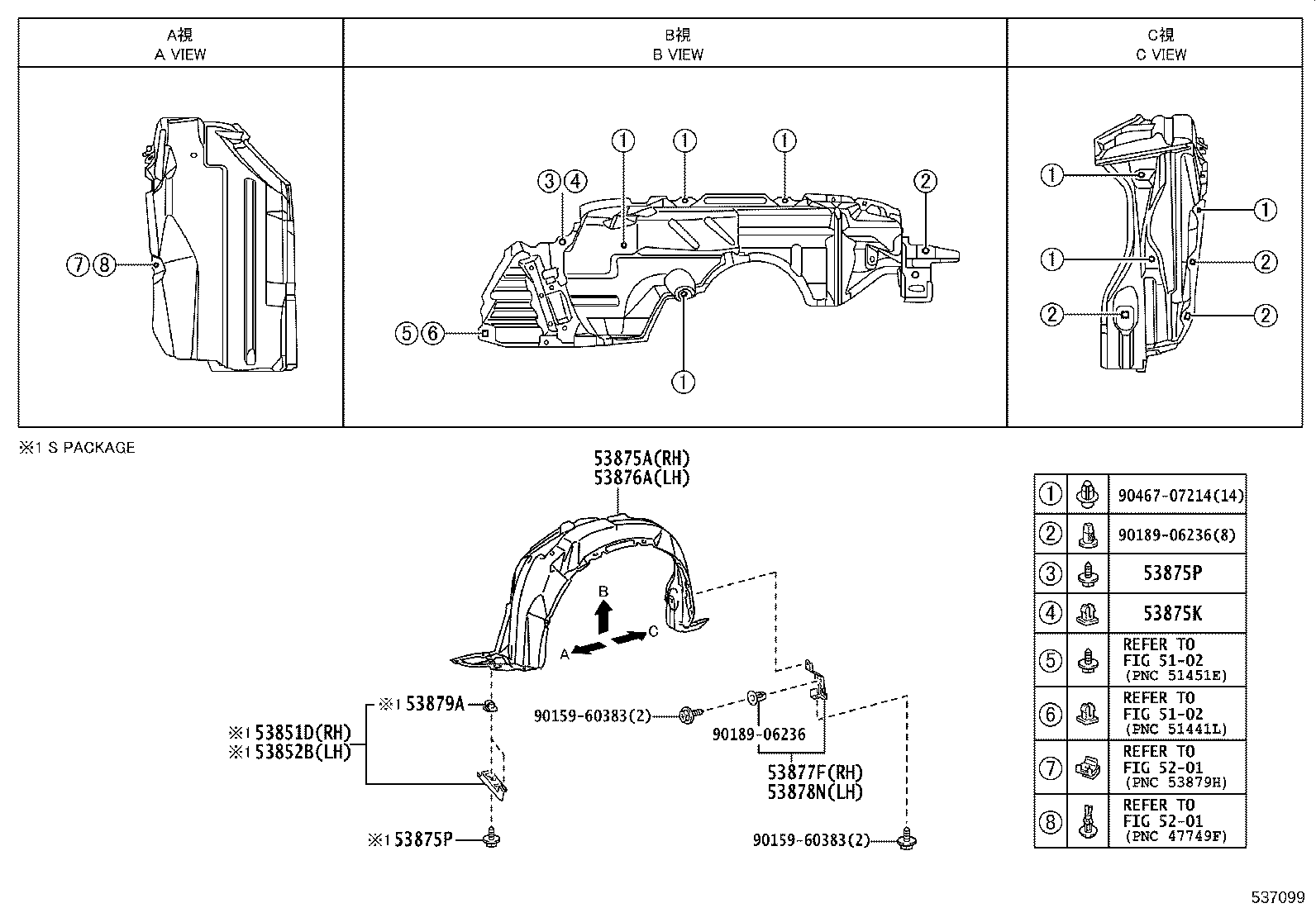

ILLUST NO. 2 OF 2(1701- )
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-52290 |
NCP13# |
1 | ||
| 53875-52430 |
NCP13# |
1 | ||
| 53875K - GROMMET, SCREW | ||||
| 90189-06237 |
NCP13# |
2 | ||
| 90189-06237 |
NCP13# |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
NCP13# |
2 | ||
| 90159-60488 |
NCP13# |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
NCP13# |
2 | ||
| 90159-60488 |
NCP13# |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-52430 |
NCP13# |
1 | ||
| 53876-52290 |
NCP13# |
1 | ||
| 53877F - BRACKET, FRONT FENDER LINER, RH | ||||
| 53877-52050 |
NCP13# |
1 | ||
| 53878N - BRACKET, FRONT FENDER LINER, LH | ||||
| 53878-52060 |
NCP13# |
1 | ||
| Common parts | ||||
| 90159-60383 | ||||
| 90189-06236 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
