NCP130R-AGPRKQ (2011)
Toyota Yaris
Production
Aug 2011
-
Jul 2014
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1108- )
Click highlighted areas on diagram
PACKAGE TRAY TRIM PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-52050 |
NCP13#..ARL |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-52050 |
NCP13#..ARL |
2 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-52390C0 |
NCP13#..ARL BLACK,TRIM1# |
1 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-12020 |
NCP13#..ARL |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NCP13#..ARL |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NCP13#..ARL |
2 | ||

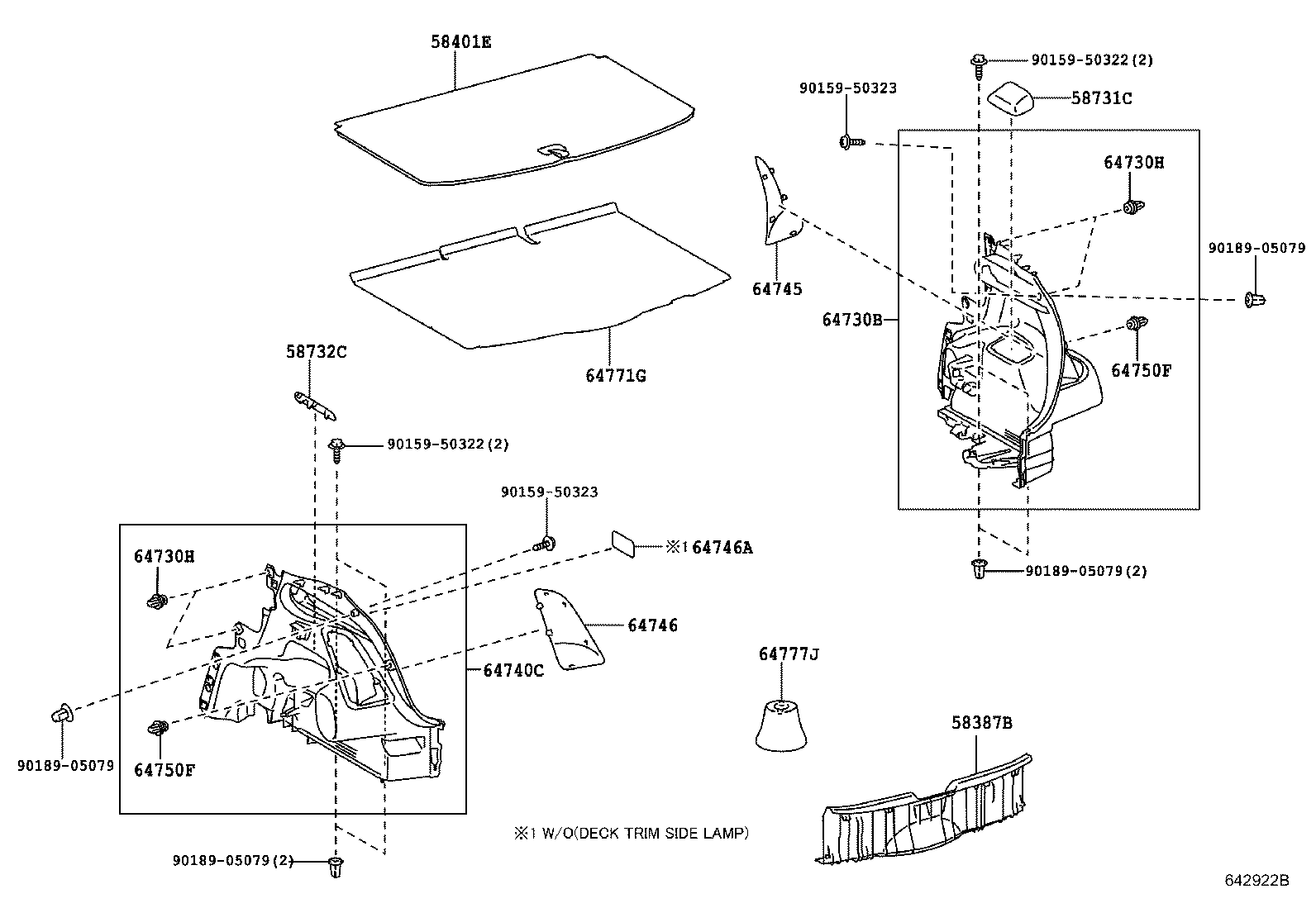

ILLUST NO. 1 OF 2(1108- )3D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-52040C0 |
NCP13# BLACK,TRIM1# |
1 | ||
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58410-52090B0 |
NCP130..ARL DECK CARPET & MAT-WITH(ADJUSTABLE DECK BOARD),DARK GRAY,TRIM1# |
1 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050C0 |
NCP13# BLACK,TRIM1# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030C0 |
NCP13# BLACK,TRIM1# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52450C0 |
NCP13#..3D..ARL BLACK,TRIM1# |
1 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09236 |
NCP13# |
4 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09236 |
NCP13# |
4 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52500C0 |
NCP13#..3D..ARL BLACK,TRIM1# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-52100C0 |
NCP13# BLACK,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-52150C0 |
NCP13# BLACK,TRIM1# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NCP13# |
2 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NCP13# |
2 | ||
| 64771G - COVER, SPARE WHEEL | ||||
| 64771-52290B0 |
NCP130..ARL DARK GRAY,TRIM1# |
1 | ||
| 64771-52270B0 |
NCP130..ARL REAR SEAT-6:4 FOLDING TYPE,WITHOUT(RECLINING),DARK GRAY,TRIM1# |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-52040 |
NCP13#..ARL |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90189-05079 | ||||
