NCP130L-AHPRKV (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1407)GCC

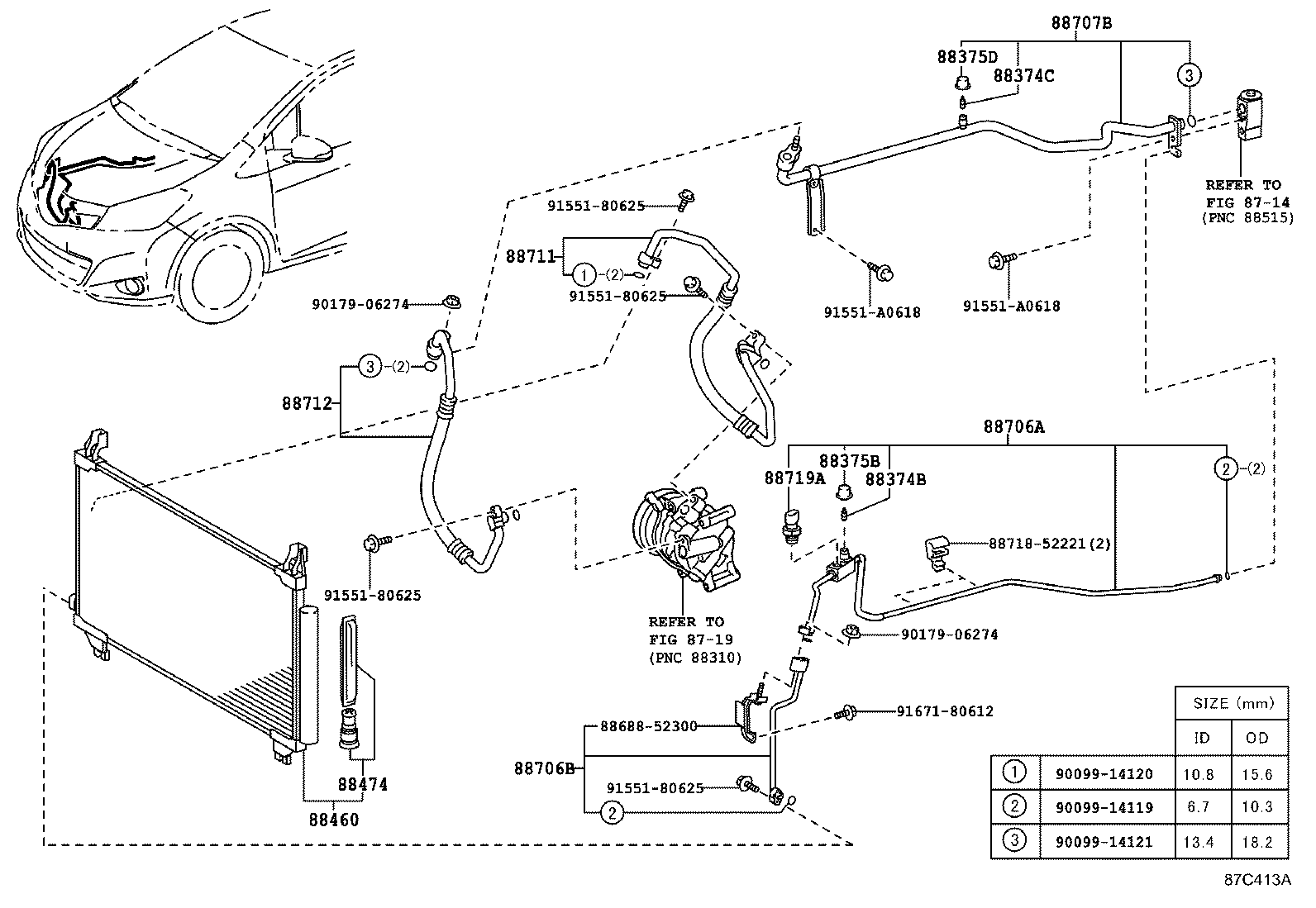

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 8868852300 88706A 88706B 88707B 88711 88712 8871852221 88719A 9009914119 9009914120 9009914121 9017906274 9017906274 9155180625 9155180625 9155180625 9155180625 91551A0618 91551A0618 9167180612
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NCP13#..ARL,GCC

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NCP13#..ARL,GCC

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

NCP13#..ARL,GCC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

NCP13#..ARL,GCC

 1
88460 - CONDENSER ASSY, COOLER
88460-52100

NCP13#..GCC

 1
88474 - DRYER, COOLER
88474-12030

NCP13#..ARL,GCC

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-52390

NCP13#..GCC

 1
88706B - TUBE SUB-ASSY, LIQUID, B
88706-52410

NCP13#..GCC

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-52140

NCP13#..GCC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52410

NCP13#..GCC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-52370

NCP13#..GCC

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NCP13#..ARL,GCC

 1
Common parts
88688-52300
88718-52221
90099-14119
90099-14120
90099-14121
90179-06274
91551-80625
91551-A0618
91671-80612
