NCP130L-AHPRKV (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1108- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(1108- )NCP130..GCC

Click highlighted areas on diagram

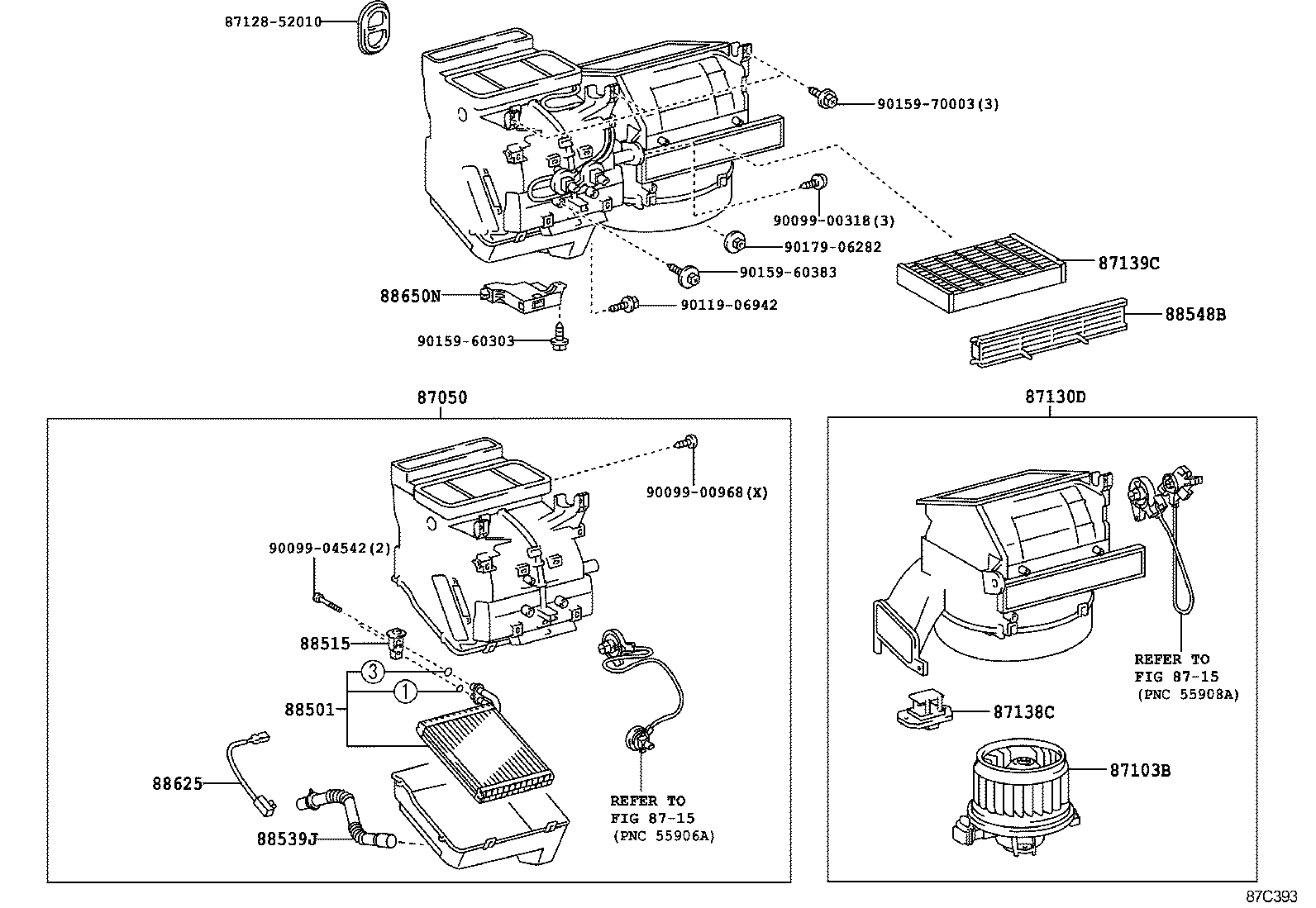

BOOST VENTILATOR

diagram 87050 87103B 8712852010 87130D 87138C 87139C 8715 8715 88501 88515 88539J 88548B 88625 88650N 9009900318 9009900968 9009904542 9011906942 9015960303 9015960383 9015970003 9017906282
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52063

NCP130..LHD;NCP131..GEN

FRONT AIR CONDITIONER-MANUAL

 1
87050-52123

NCP130..GCC

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52180

NCP13#..GCC

 1
87130D - BLOWER ASSY
87130-52160

NCP13#..GCC

 1
87138C - RESISTOR, BLOWER
87138-52030

NCP13#

 1
87139C - FILTER, CLEAN AIR
87139-52020

NCP13#

STANDARD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52102

NCP13#..ARL,GCC

 1
88501-52103

NCP13#..ARL,GCC

 1
88515 - VALVE, COOLER EXPANSION
88515-68010

NCP13#..ARL,GCC

 1
88539J - HOSE, DRAIN COOLER
88539-52040

NCP13#..LHD

 1
88548B - CASE, AIR FILTER
88548-52040

NCP13#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NCP13#..ARL,GCC

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52880

NCP131..GEN;NCP130..GCC,GEN

FRONT AIR CONDITIONER-MANUAL

 1
88650-52680

NCP131..GEN;NCP130..GCC,GEN

FRONT AIR CONDITIONER-MANUAL

 1
88650-52740

NCP130..GCC

 1
Common parts
87128-52010
90099-00318
90099-00968
90099-04542
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
Linked diagrams
8715

ILLUST NO. 1 OF 2(1108- )GCC

Click highlighted areas on diagram

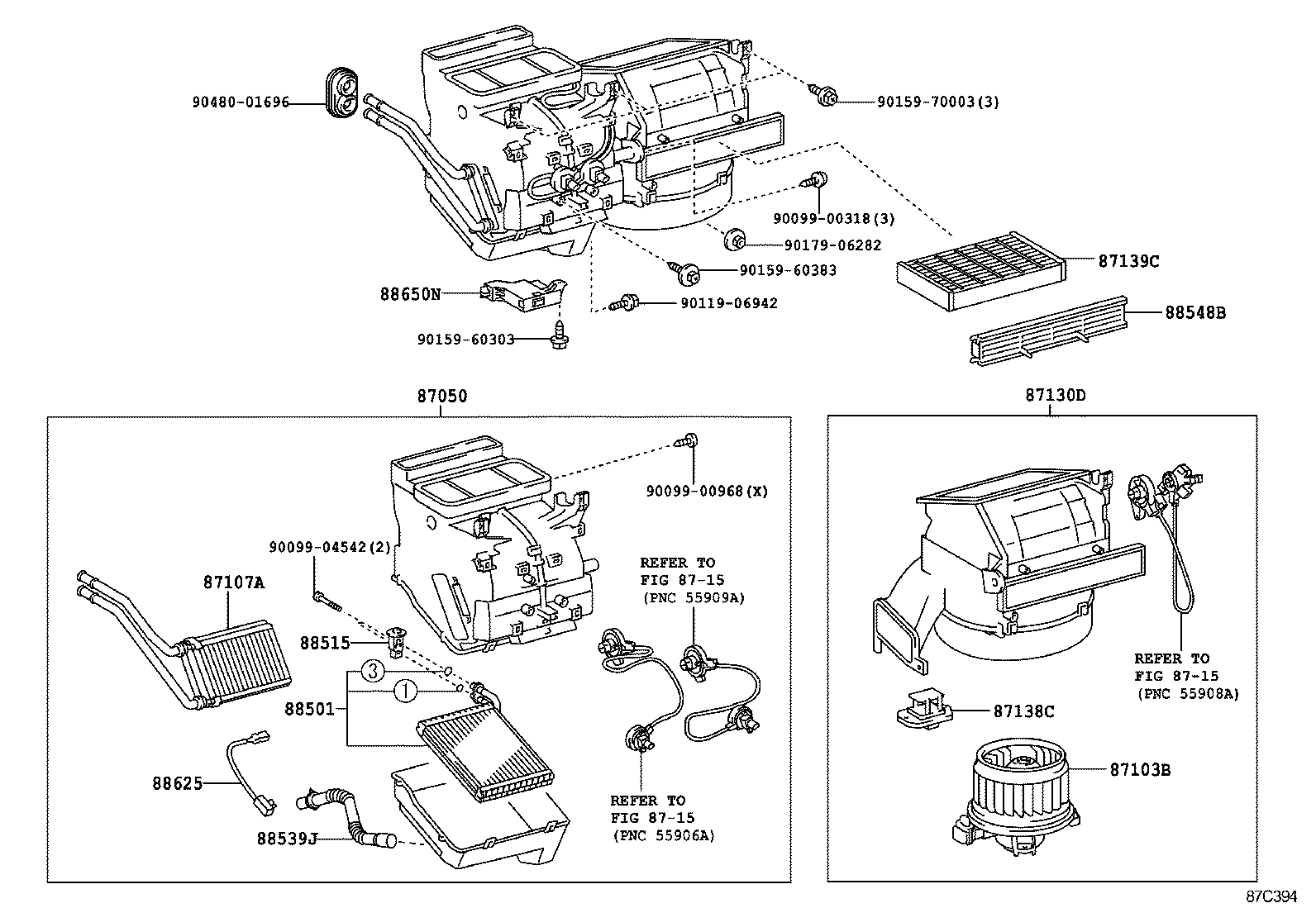

MANUAL AIR CONDITIONER

diagram 87050 87103B 87107A 87130D 87138C 87139C 8715 8715 8715 88501 88515 88539J 88548B 88625 88650N 9009900318 9009900968 9009904542 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52063

NCP130..LHD;NCP131..GEN

FRONT AIR CONDITIONER-MANUAL

 1
87050-52123

NCP130..GCC

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52180

NCP13#..GCC

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52061

NCP130..GCC

FRONT AIR CONDITIONER-MANUAL

 1
87130D - BLOWER ASSY
87130-52160

NCP13#..GCC

 1
87138C - RESISTOR, BLOWER
87138-52030

NCP13#

 1
87139C - FILTER, CLEAN AIR
87139-52020

NCP13#

STANDARD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52102

NCP13#..ARL,GCC

 1
88501-52103

NCP13#..ARL,GCC

 1
88515 - VALVE, COOLER EXPANSION
88515-68010

NCP13#..ARL,GCC

 1
88539J - HOSE, DRAIN COOLER
88539-52040

NCP13#..LHD

 1
88548B - CASE, AIR FILTER
88548-52040

NCP13#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NCP13#..ARL,GCC

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52880

NCP131..GEN;NCP130..GCC,GEN

FRONT AIR CONDITIONER-MANUAL

 1
88650-52680

NCP131..GEN;NCP130..GCC,GEN

FRONT AIR CONDITIONER-MANUAL

 1
88650-52740

NCP130..GCC

 1
Common parts
90099-00318
90099-00968
90099-04542
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715
