NCP130L-AHPRKV (2011)
Toyota Yaris
Production
Aug 2011
-
Jul 2014
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1108- )GCC

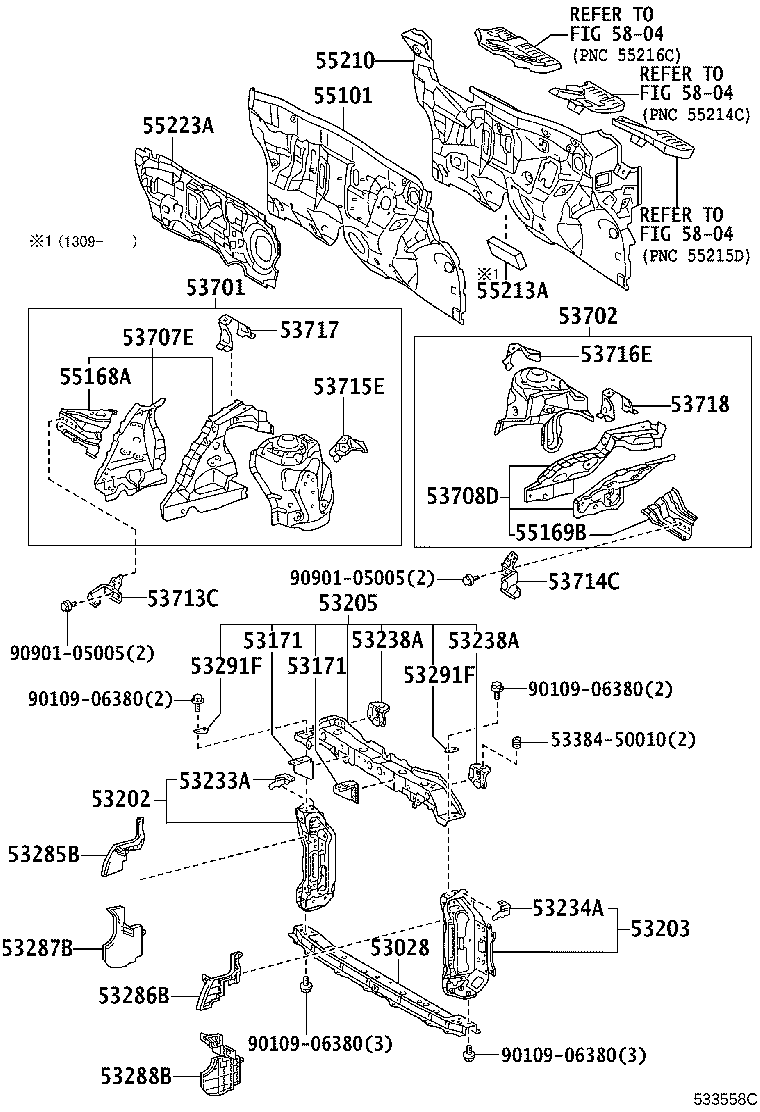

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-52070 |
NCP13# |
1 | ||
| 53171 - RETAINER, RADIATOR SUPPORT | ||||
| 53171-52030 |
NCP13# RH |
1 | ||
| 53171-52070 |
NCP13# LH |
1 | ||
| 53171 - RETAINER, RADIATOR SUPPORT | ||||
| 53171-52030 |
NCP13# RH |
1 | ||
| 53171-52070 |
NCP13# LH |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-52908 |
NCP13# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-52906 |
NCP13# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-52904 |
NCP13# |
1 | ||
| 53205-52907 |
NCP13# |
1 | ||
| 53233A - BRACKET, HEADLAMP, NO.1 RH | ||||
| 53233-52050 |
NCP13# |
1 | ||
| 53234A - BRACKET, HEADLAMP, NO.1 LH | ||||
| 53234-52060 |
NCP13# |
1 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-52030 |
NCP13# |
2 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-52030 |
NCP13# |
2 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-52360 |
NCP13#..GCC |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-52300 |
NCP13#..GCC |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-52140 |
NCP13#..GCC |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-52140 |
NCP13#..GCC |
1 | ||
| 53291F - PLATE, RADIATOR SUPPORT | ||||
| 53291-52070 |
NCP13# |
2 | ||
| 53291F - PLATE, RADIATOR SUPPORT | ||||
| 53291-52070 |
NCP13# |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-52190 |
NCP13# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-52190 |
NCP13# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-52190 |
NCP13# |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-52030 |
NCP13# |
1 | ||
| 53707-52060 |
NCP13# |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-52030 |
NCP13# |
1 | ||
| 53708-52060 |
NCP13# |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-52070 |
NCP13# |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-52080 |
NCP13# |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-52030 |
NCP13# |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-52030 |
NCP13# |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-52110 |
NCP13# |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-52110 |
NCP13# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-52500 |
NCP13#..LHD..4FC |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-52130 |
NCP13# |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-52130 |
NCP13# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-52320 |
NCP13#..LHD |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-52190 |
NCP13# |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-52110 |
NCP13#..LHD |
1 | ||
| Common parts | ||||
| 53384-50010 | ||||
| 90109-06380 | ||||
| 90901-05005 | ||||
| Linked diagrams | ||||
| 5804 | ||||
