NCP130L-AHPRKV (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1407)GCC

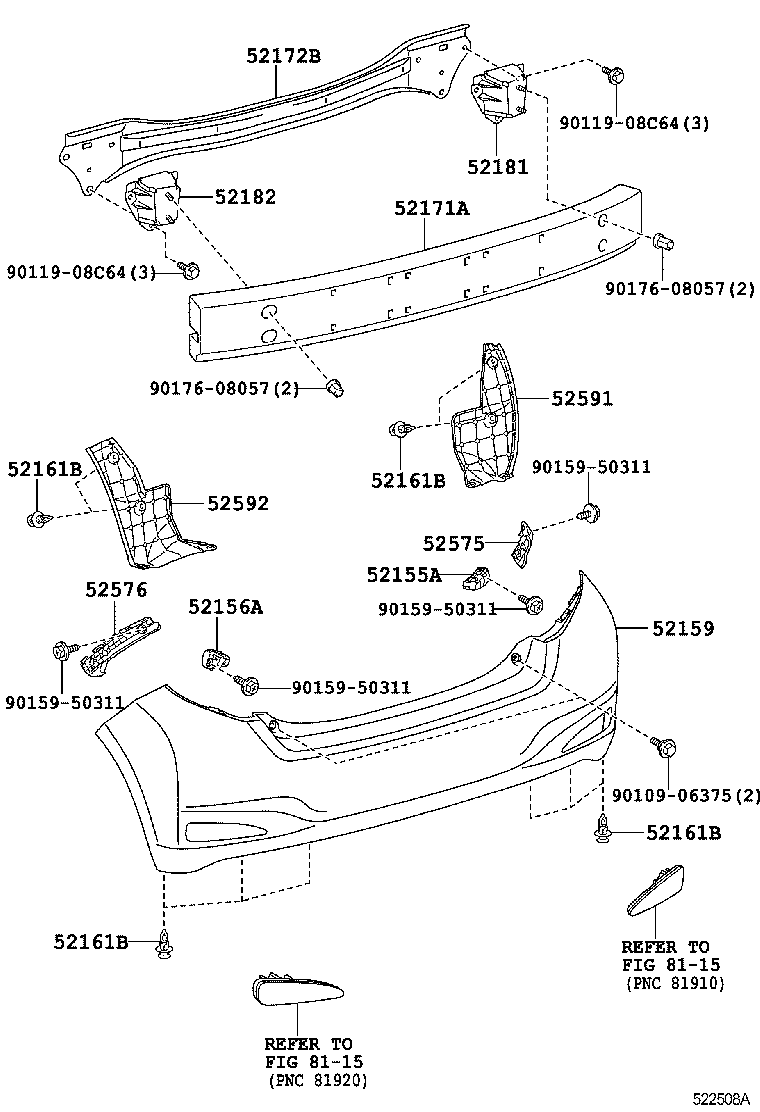

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52161B 52161B 52161B 52161B 52171A 52172B 52181 52182 52575 52576 52591 52592 8115 8115 9010906375 9011908C64 9011908C64 9015950311 9015950311 9015950311 9015950311 9017608057 9017608057
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-52120

NCP13#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-52120

NCP13#

 1
52159 - COVER, REAR BUMPER
52159-52966

NCP13#..GCC

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

NCP13#

 10
52161B - PIECE, REAR BUMPER
52161-16010

NCP13#

 10
52161B - PIECE, REAR BUMPER
52161-16010

NCP13#

 10
52161B - PIECE, REAR BUMPER
52161-16010

NCP13#

 10
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-52090

NCP13#..GCC

 1
52172B - REINFORCEMENT, REAR BUMPER, NO.2
52172-52020

NCP13#..ARL,GCC

 1
52181 - ARM, REAR BUMPER, RH
52181-52160

NCP13#..GCC

 1
52182 - ARM, REAR BUMPER, LH
52182-52160

NCP13#..GCC

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-52170

NCP13#

 1
52575-52171

NCP13#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-52151

NCP13#

 1
52576-52150

NCP13#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-52300

NCP13#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-52290

NCP13#

 1
Common parts
90109-06375
90119-08C64
90159-50311
90176-08057
Linked diagrams
8115
