NCP130L-AHPRKV (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1407)GCC

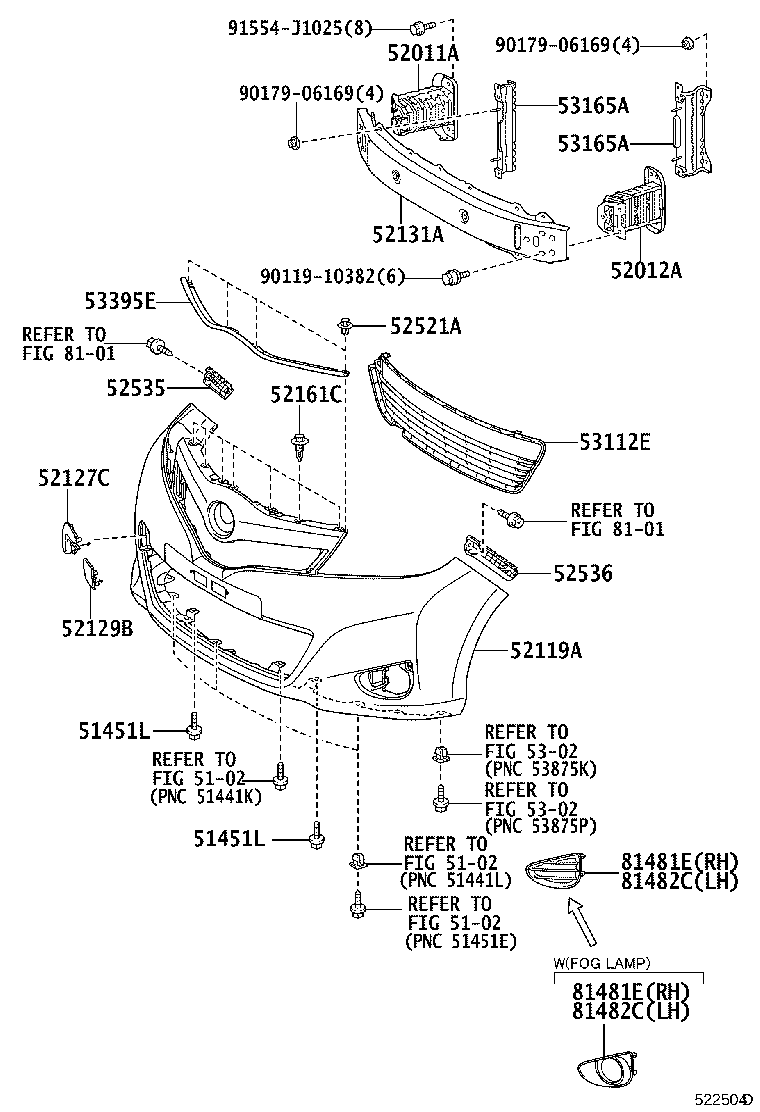

Click highlighted areas on diagram

diagram 5102 5102 5102 51451L 51451L 52011A 52012A 52119A 52127C 52129B 52131A 52161C 52521A 52535 52536 5302 5302 53112E 53165A 53165A 53395E 8101 8101 81481E 81481E 81482C 81482C 9011910382 9017906169 9017906169 91554J1025
Part # Description Qty Price
51451L - BOLT, NO.1
90119-06767

NCP13#

 8
51451L - BOLT, NO.1
90119-06767

NCP13#

 8
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-52021

NCP13#..GCC

 1
52011-52020

NCP13#..GCC

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-52020

NCP13#..GCC

 1
52119A - COVER, FRONT BUMPER
52119-52965

NCP13#..GCC

PAINT REQ.

 1
52127C - COVER, FRONT BUMPER HOLE
52127-52931

NCP13#

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-52090

NCP13#

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52250

NCP13#

 1
52161C - PIECE, FRONT BUMPER
52161-16010

NCP13#

 7
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0

NCP13#

BLACK

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52111

NCP13#

 1
52535-52110

NCP13#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52081

NCP13#

 1
52536-52080

NCP13#

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52260

NCP13#

NO PAINT REQ.

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52020

NCP13#..GCC

RH

 1
53165-52030

NCP13#..GCC

LH

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52020

NCP13#..GCC

RH

 1
53165-52030

NCP13#..GCC

LH

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-52040

NCP13#

 1
81481E - COVER, FOG LAMP, RH
81481-52360

NCP13#

 1
81481-52380

NCP13#

FRONT FOG LAMP-WITH

 1
81481E - COVER, FOG LAMP, RH
81481-52360

NCP13#

 1
81481-52380

NCP13#

FRONT FOG LAMP-WITH

 1
81482C - COVER, FOG LAMP, LH
81482-52320

NCP13#

FRONT FOG LAMP-WITH

 1
81482-52300

NCP13#

 1
81482C - COVER, FOG LAMP, LH
81482-52320

NCP13#

FRONT FOG LAMP-WITH

 1
81482-52300

NCP13#

 1
Common parts
90119-10382
90179-06169
91554-J1025
Linked diagrams
5102
5302
8101
