NCP130L-AHPRKV (2011)

Toyota Yaris

Production Aug 2011 - Jul 2014
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1108-1407)GCC,GEN

Click highlighted areas on diagram

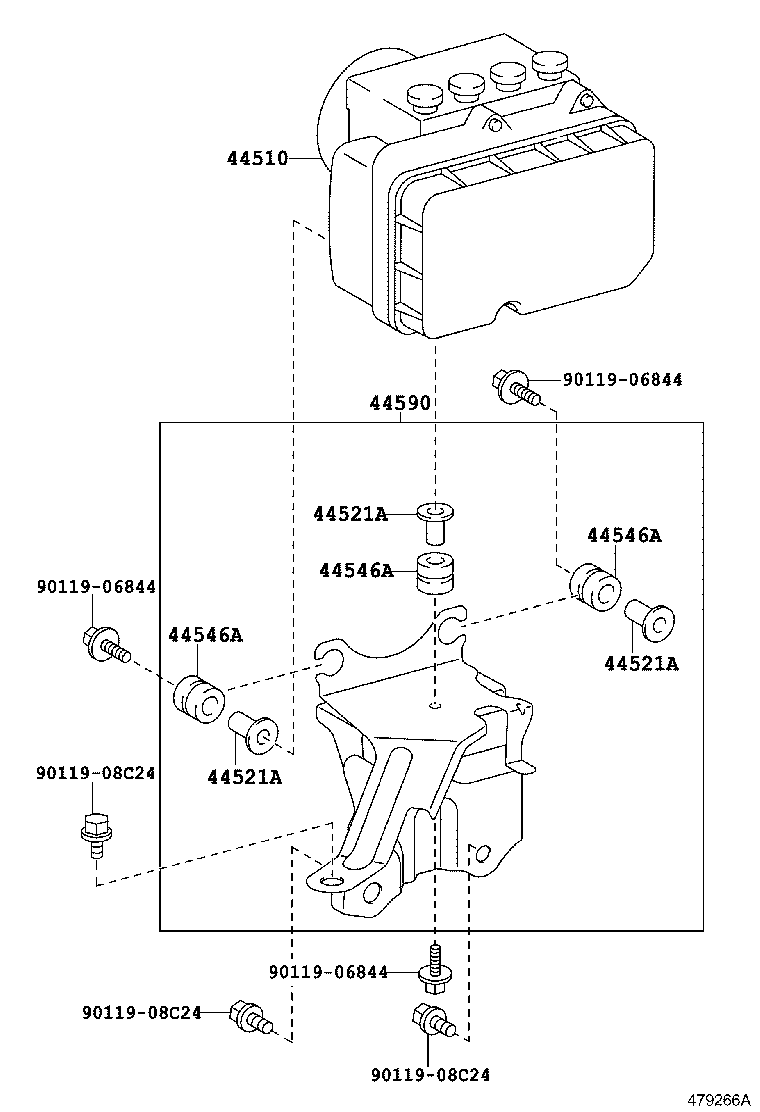

BRAKE ACTUATOR,W(ABS)

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9011908C24 9011908C24 9011908C24
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52F00

NCP130..LHD

ABS-WITHOUT

 1
44050-52E90

NCP130..LHD

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

 1
44050-52E91

NCP130..GCC,GEN

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC.

 1
44050-52E90

NCP130..GCC,GEN

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC.

 1
44050-52E91

NCP130..LHD

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

 1
44050-52F01

NCP130..GCC,GEN

 1
44050-52F00

NCP130..GCC,GEN

 1
44050-52F01

NCP130..LHD

ABS-WITHOUT

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP13#

 3
44521-12050

NCP130..LHD

ABS-WITHOUT

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP13#

 3
44521-12050

NCP130..LHD

ABS-WITHOUT

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP13#

 3
44521-12050

NCP130..LHD

ABS-WITHOUT

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP13#

 3
44546-12110

NCP130..LHD

ABS-WITHOUT

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP13#

 3
44546-12110

NCP130..LHD

ABS-WITHOUT

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP13#

 3
44546-12110

NCP130..LHD

ABS-WITHOUT

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52170

NCP13#..LHD

 1
Common parts
90119-06844
90119-08C24

ILLUST NO. 1 OF 2(1108- )LHD

Click highlighted areas on diagram

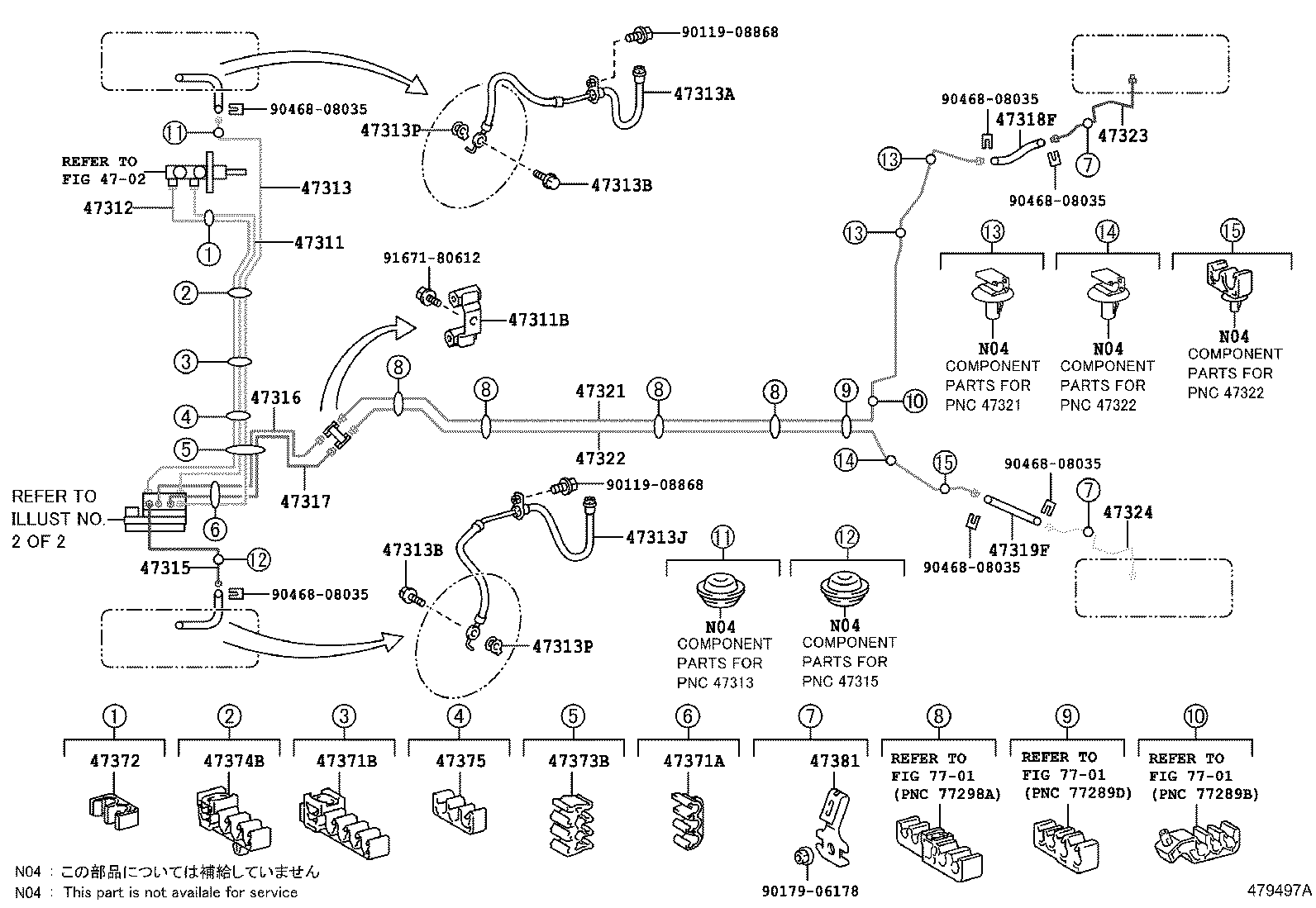

BRAKE TUBE,W(ABS)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47372 47373B 47374B 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180612
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52560

NCP13#..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP13#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52520

NCP13#..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52250

NCP13#..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

NCP13#

PAINTED= GREEN

 1
90947-02G34

NCP13#

*601

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP13#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP13#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02G35

NCP13#

PAINTED= LIGHT BLUE

 1
90947-02E08

NCP13#

MARK = PINK

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP13#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP13#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52210

NCP13#..LHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52200

NCP13#..LHD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52200

NCP13#..LHD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E09

NCP13#

 1
90947-02H31

NCP13#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E10

NCP13#

 1
90947-02H32

NCP13#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52340

NCP13#

 1
47321-52341

NCP13#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52320

NCP13#

 1
47322-52321

NCP13#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52100

NCP13#

 1
47323-52101

NCP13#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52090

NCP13#

 1
47324-52091

NCP13#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP131;NCP130..ARL,GCC;NCP130..LHD..GEN

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D86

NCP13#..LHD

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01969

NCP13#..LHD

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D82

NCP13#..LHD

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NCP13#

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80612
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(1108-1407)ARL ; (1407- )

Click highlighted areas on diagram

BRAKE ACTUATOR,W(VSC)

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9011908C24 9011908C24 9011908C24
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52F00

NCP130..LHD

ABS-WITHOUT

 1
44050-52E90

NCP130..LHD

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

 1
44050-52E91

NCP130..GCC,GEN

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC.

 1
44050-52E90

NCP130..GCC,GEN

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC.

 1
44050-52E91

NCP130..LHD

TIRE & DISC WHEEL-185/60R15 5.5J BLACK ROUGH ROAD SPEC.

 1
44050-52F01

NCP130..GCC,GEN

 1
44050-52F00

NCP130..GCC,GEN

 1
44050-52F01

NCP130..LHD

ABS-WITHOUT

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP13#

 3
44521-12050

NCP130..LHD

ABS-WITHOUT

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP13#

 3
44521-12050

NCP130..LHD

ABS-WITHOUT

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

NCP13#

 3
44521-12050

NCP130..LHD

ABS-WITHOUT

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP13#

 3
44546-12110

NCP130..LHD

ABS-WITHOUT

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP13#

 3
44546-12110

NCP130..LHD

ABS-WITHOUT

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP13#

 3
44546-12110

NCP130..LHD

ABS-WITHOUT

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52170

NCP13#..LHD

 1
Common parts
90119-06844
90119-08C24

ILLUST NO. 1 OF 2(1108-1407)ARL ; (1407- )

Click highlighted areas on diagram

BRAKE TUBE,W(VSC)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47371B 47372 47373B 47374B 47375 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180612
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52560

NCP13#..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP13#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52520

NCP13#..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52250

NCP13#..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E07

NCP13#

PAINTED= GREEN

 1
90947-02G34

NCP13#

*601

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP13#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP13#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02G35

NCP13#

PAINTED= LIGHT BLUE

 1
90947-02E08

NCP13#

MARK = PINK

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP13#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP13#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52210

NCP13#..LHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52200

NCP13#..LHD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52200

NCP13#..LHD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E09

NCP13#

 1
90947-02H31

NCP13#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E10

NCP13#

 1
90947-02H32

NCP13#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52340

NCP13#

 1
47321-52341

NCP13#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52320

NCP13#

 1
47322-52321

NCP13#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52100

NCP13#

 1
47323-52101

NCP13#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52090

NCP13#

 1
47324-52091

NCP13#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NCP131;NCP130..ARL,GCC;NCP130..LHD..GEN

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D86

NCP13#..LHD

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01969

NCP13#..LHD

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D82

NCP13#..LHD

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NCP13#

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80612
Linked diagrams
4702
7701
