MXPH10R-AHXNBQ (2020)
Toyota Yaris
ILLUST NO. 1 OF 2(2005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302C - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55302-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM2#,4# |
1 | ||
| 55302-K0020C0 |
MXPA10,MXPH10 MID PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,SOFT BLACK,TRIM1#,2# |
1 | ||
| 55302-K0010E0 |
MXPA10,MXPH10 TAUPE,TRIM1# |
1 | ||
| 55302-K0020C0 |
MXPA10,MXPH10 S PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,SOFT BLACK,TRIM1#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-K0010 |
MXPA10,MXPH10 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
MXPA10,MXPH10 |
4 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
MXPA10,MXPH10 |
4 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
MXPA10,MXPH10 |
4 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM1#,2#,4# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM1#,2#,4# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-12430 |
MXPA10,MXPH10 |
2 | ||
| 55328-60090 |
MXPA10,MXPH10 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-52A50 |
MXPA10,MXPH10 |
1 | ||
| 55330-K0010 |
MXPA10,MXPH10 S PACKAGE |
1 | ||
| 55330-K0010 |
MXPA10,MXPH10 MID PACKAGE |
1 | ||
| 55330-K0010 |
MXPA10,MXPH10 |
1 | ||
| 55374B - BRACKET, INSTRUMENT PANEL | ||||
| 55363-52010 |
MXPA10,MXPH10 RH |
1 | ||
| 55363-52020 |
MXPA10,MXPH10 LH |
1 | ||
| 55374B - BRACKET, INSTRUMENT PANEL | ||||
| 55363-52010 |
MXPA10,MXPH10 RH |
1 | ||
| 55363-52020 |
MXPA10,MXPH10 LH |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-K0010 |
MXPA10,MXPH10 |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90105-08478 | ||||
| 90105-08526 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

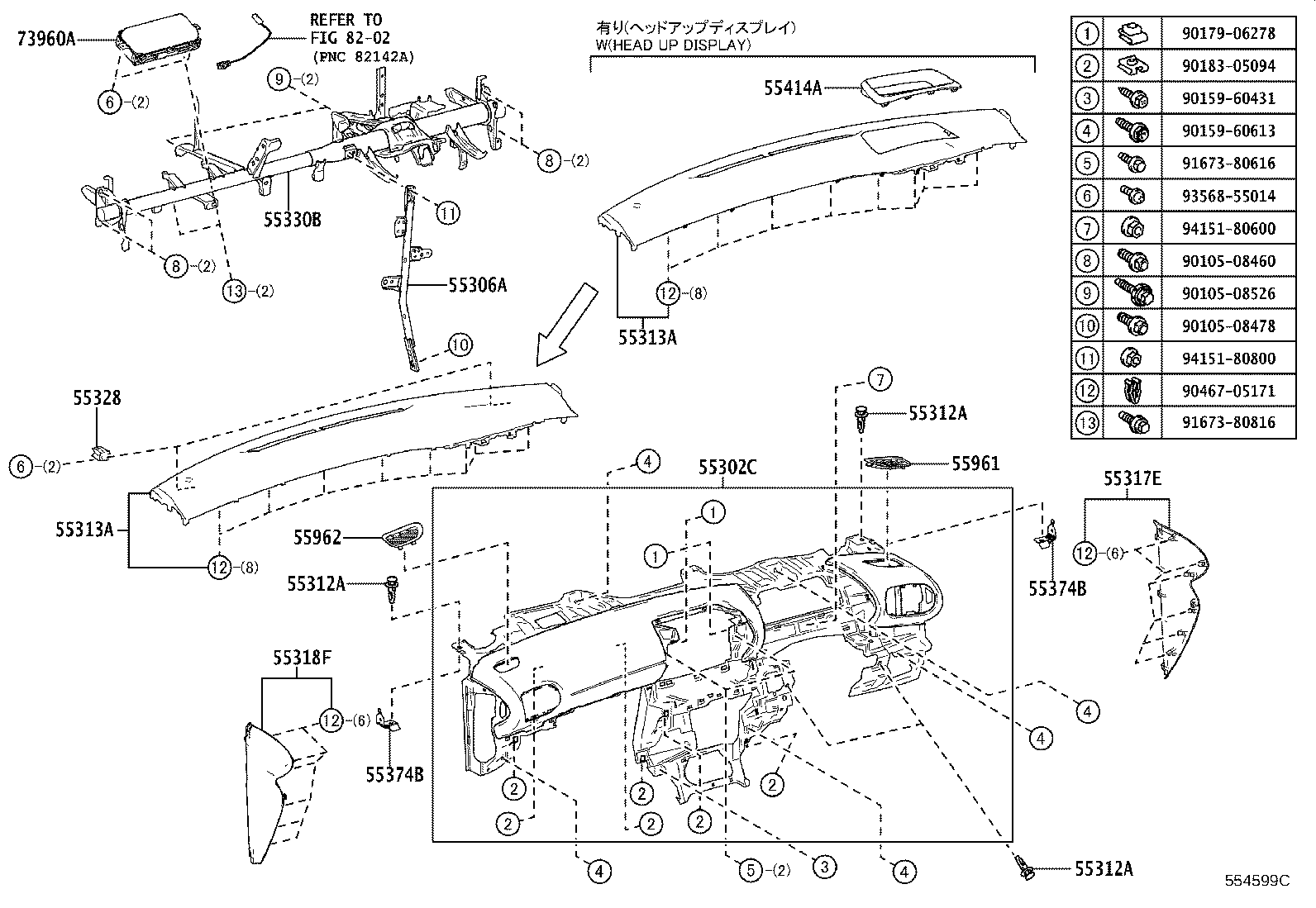

ILLUST NO. 1 OF 2(2005- )
INSTRUMENT PANEL(SOFT & RESIN)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302C - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55302-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM2#,4# |
1 | ||
| 55302-K0020C0 |
MXPA10,MXPH10 MID PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,SOFT BLACK,TRIM1#,2# |
1 | ||
| 55302-K0010E0 |
MXPA10,MXPH10 TAUPE,TRIM1# |
1 | ||
| 55302-K0020C0 |
MXPA10,MXPH10 S PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,SOFT BLACK,TRIM1#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-K0010 |
MXPA10,MXPH10 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
MXPA10,MXPH10 |
4 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
MXPA10,MXPH10 |
4 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
MXPA10,MXPH10 |
4 | ||
| 55313A - PANEL, INSTRUMENT MAIN | ||||
| 55313-K0020C0 |
MXPA10,MXPH10 S PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,BLACK,TRIM1# |
1 | ||
| 55313-K0010C0 |
MXPA10,MXPH10 MID PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,BLACK,TRIM1#,2# |
1 | ||
| 55313A - PANEL, INSTRUMENT MAIN | ||||
| 55313-K0020C0 |
MXPA10,MXPH10 S PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,BLACK,TRIM1# |
1 | ||
| 55313-K0010C0 |
MXPA10,MXPH10 MID PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,BLACK,TRIM1#,2# |
1 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM1#,2#,4# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM1#,2#,4# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-12430 |
MXPA10,MXPH10 |
2 | ||
| 55328-60090 |
MXPA10,MXPH10 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-52A50 |
MXPA10,MXPH10 |
1 | ||
| 55330-K0010 |
MXPA10,MXPH10 S PACKAGE |
1 | ||
| 55330-K0010 |
MXPA10,MXPH10 MID PACKAGE |
1 | ||
| 55330-K0010 |
MXPA10,MXPH10 |
1 | ||
| 55374B - BRACKET, INSTRUMENT PANEL | ||||
| 55363-52010 |
MXPA10,MXPH10 RH |
1 | ||
| 55363-52020 |
MXPA10,MXPH10 LH |
1 | ||
| 55374B - BRACKET, INSTRUMENT PANEL | ||||
| 55363-52010 |
MXPA10,MXPH10 RH |
1 | ||
| 55363-52020 |
MXPA10,MXPH10 LH |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-K0010C0 |
MXPA10,MXPH10 S PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,BLACK,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-K0010C0 |
MXPA10,MXPH10 MID PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,BLACK,TRIM1#,2# |
1 | ||
| 55961-K0010C0 |
MXPA10,MXPH10 S PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,BLACK,TRIM1#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-K0010C0 |
MXPA10,MXPH10 S PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,BLACK,TRIM1#,2# |
1 | ||
| 55962-K0010C0 |
MXPA10,MXPH10 MID PACKAGE&INSTRUMENT PANEL-SOFT & RESIN,BLACK,TRIM1#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-K0010 |
MXPA10,MXPH10 |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90105-08478 | ||||
| 90105-08526 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

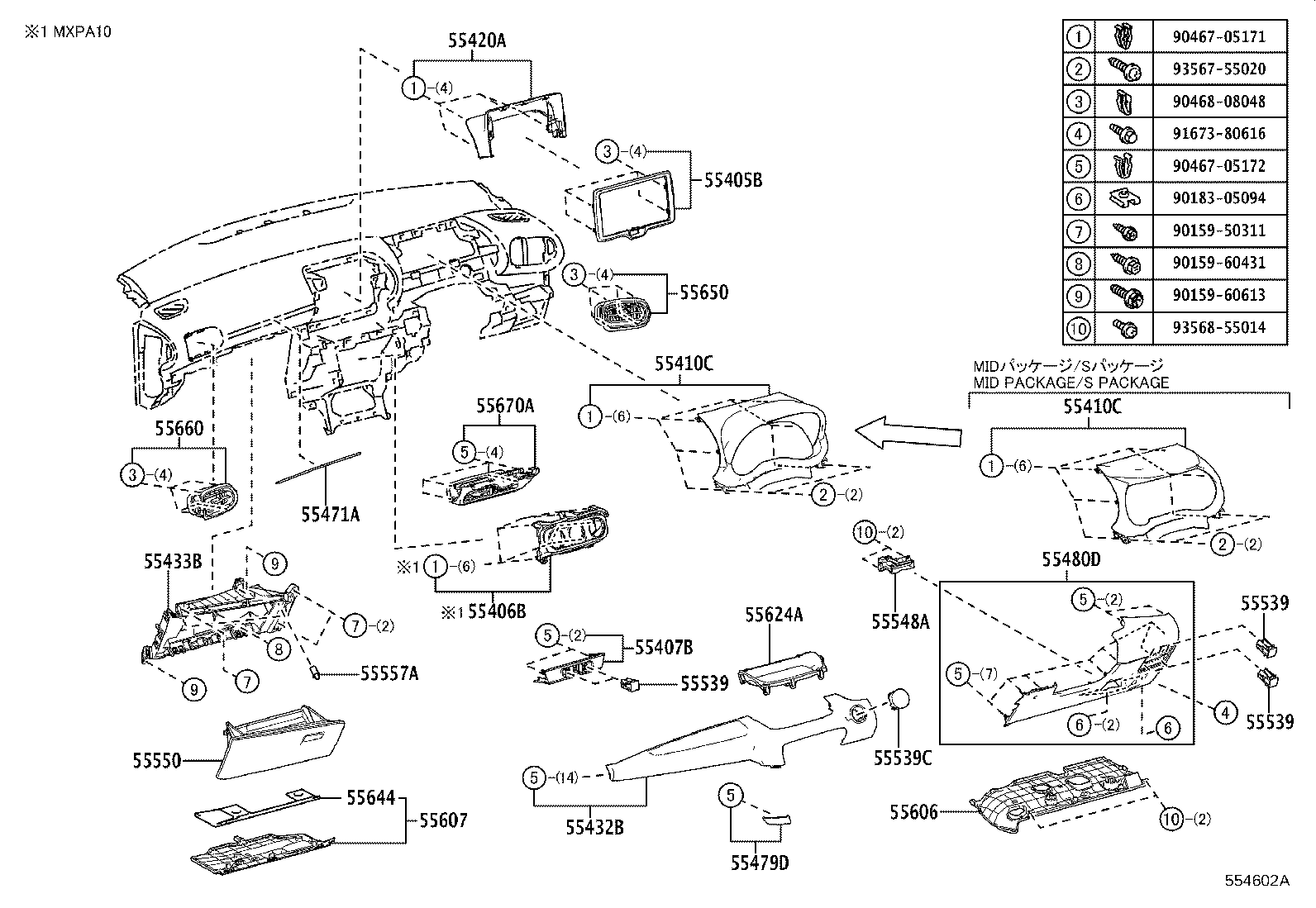

ILLUST NO. 2 OF 2(2005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-K0020 |
MXPA10,MXPH10 |
1 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-K0010 |
MXPA10,MXPH10 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-K0010 |
MXPA10,MXPH10 |
1 | ||
| 55410-K0020 |
MXPA10,MXPH10 S PACKAGE |
1 | ||
| 55410-K0020 |
MXPA10,MXPH10 MID PACKAGE |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-K0010 |
MXPA10,MXPH10 |
1 | ||
| 55410-K0020 |
MXPA10,MXPH10 S PACKAGE |
1 | ||
| 55410-K0020 |
MXPA10,MXPH10 MID PACKAGE |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-K0010 |
MXPA10,MXPH10 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55435-K0010B0 |
MXPA10,MXPH10 LT.GRAY,TRIM10 |
1 | ||
| 55435-K0010E0 |
MXPA10,MXPH10 TAUPE,TRIM4# |
1 | ||
| 55435-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM11,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-K0040E0 |
MXPA10,MXPH10 TAUPE,TRIM4# |
1 | ||
| 55433-K0040C0 |
MXPA10,MXPH10 BLACK,TRIM11,2# |
1 | ||
| 55433-K0040B0 |
MXPA10,MXPH10 LT.GRAY,TRIM10 |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-K0010A0 |
MXPA10,MXPH10 WHITE,TRIM10,2#,4# |
1 | ||
| 55471-K0011D2 |
MXPA10,MXPH10 RED,TRIM1# |
1 | ||
| 55471-K0010D2 |
MXPA10,MXPH10 RED,TRIM11 |
1 | ||
| 55471-K0011A0 |
MXPA10,MXPH10 WHITE,TRIM2#,4# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-K0040 |
MXPA10,MXPH10 |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-K0010C2 |
MXPA10,MXPH10 BLACK/BLACK,TRIM1#,2# |
1 | ||
| 55480-K0010B0 |
MXPA10,MXPH10 LT.GRAY,TRIM10 |
1 | ||
| 55480-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM11,2# |
1 | ||
| 55480-K0010E4 |
MXPA10,MXPH10 TAUPE,TRIM4# |
1 | ||
| 55480-K0010E0 |
MXPA10,MXPH10 TAUPE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
MXPA10,MXPH10 BLACK |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
MXPA10,MXPH10 BLACK |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
MXPA10,MXPH10 BLACK |
2 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52040E2 |
MXPA10,MXPH10 TAUPE,TRIM4# |
1 | ||
| 55539-52040C1 |
MXPA10,MXPH10 BLACK,TRIM1#,2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47060E1 |
MXPA10,MXPH10 TAUPE,TRIM4# |
1 | ||
| 55548-47060C1 |
MXPA10,MXPH10 BLACK,TRIM11,2# |
1 | ||
| 55548-47060B0 |
MXPA10,MXPH10 LT.GRAY,TRIM10 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-K0010B0 |
MXPA10,MXPH10 LT.GRAY,TRIM10 |
1 | ||
| 55550-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM11,2# |
1 | ||
| 55550-K0010E0 |
MXPA10,MXPH10 TAUPE,TRIM4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-10040 |
MXPA10,MXPH10 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-K0010 |
MXPA10,MXPH10 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-K0010 |
MXPA10,MXPH10 |
1 | ||
| 55624A - TRAY, INSTRUMENT PANEL, CENTER | ||||
| 55445-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM1#,2#,4# |
1 | ||
| 55644 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2 | ||||
| 55644-K0030 |
MXPA10,MXPH10 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-K0100A0 |
MXPA10,MXPH10 WHITE,TRIM20 |
1 | ||
| 55650-K0100C0 |
MXPA10,MXPH10 BLACK,TRIM1#,20,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-K0100A0 |
MXPA10,MXPH10 WHITE,TRIM20 |
1 | ||
| 55660-K0100C0 |
MXPA10,MXPH10 BLACK,TRIM1#,20,4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-K0010 |
MXPA10,MXPH10 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 91673-80616 | ||||
| 93567-55020 | ||||
| 93568-55014 | ||||
