MXPA10R-AHFNBQ (2020)
Toyota Yaris
(2005- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

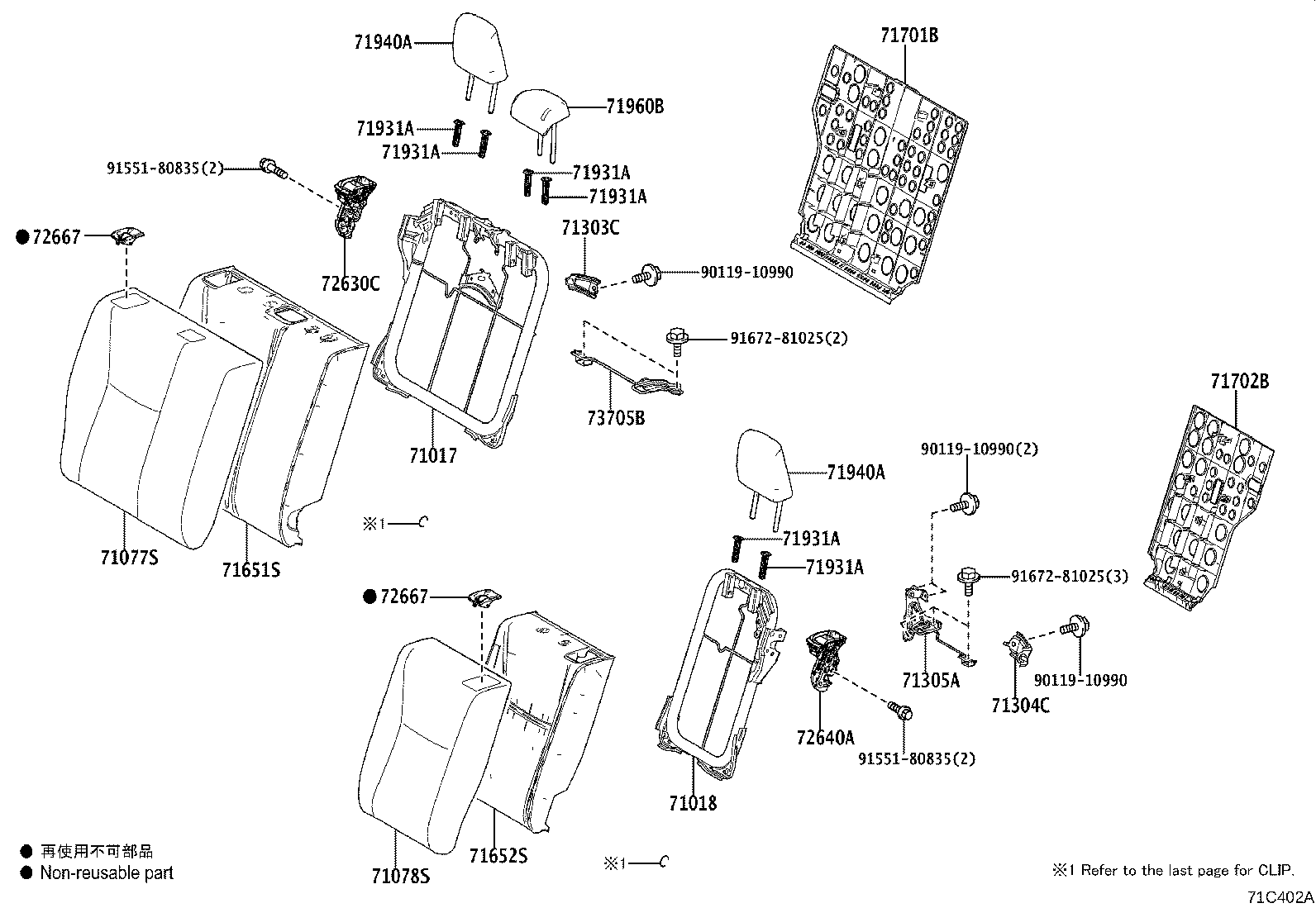

ILLUST NO. 1 OF 2(2005- )
SEAT BACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-K0040 |
MXPA10,MXPH10 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-K0020 |
MXPA10,MXPH10 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-K0070C3 |
MXPA10,MXPH10 BLACK,TRIM2# |
1 | ||
| 71077-K0150B1 |
MXPA10,MXPH10 S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/LT.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 71077-K0070C2 |
MXPA10,MXPH10 TAUPE,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-K0120C0 |
MXPA10,MXPH10 S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/LT.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 71078-K0060C0 |
MXPA10,MXPH10 BLACK/BLACK/TAUPE/BLACK,TRIM4# |
1 | ||
| 71078-K0060C1 |
MXPA10,MXPH10 BLACK/BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-K0030 |
MXPA10,MXPH10 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-K0030 |
MXPA10,MXPH10 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-K0040 |
MXPA10,MXPH10 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-K0050 |
MXPA10,MXPH10 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-K0040 |
MXPA10,MXPH10 |
1 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-K0030 |
MXPA10,MXPH10 |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-K0020 |
MXPA10,MXPH10 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030C4 |
MXPA10,MXPH10 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71930-47050C5 |
MXPA10,MXPH10 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030C4 |
MXPA10,MXPH10 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71930-47050C5 |
MXPA10,MXPH10 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030C4 |
MXPA10,MXPH10 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71930-47050C5 |
MXPA10,MXPH10 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030C4 |
MXPA10,MXPH10 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71930-47050C5 |
MXPA10,MXPH10 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030C4 |
MXPA10,MXPH10 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71930-47050C5 |
MXPA10,MXPH10 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47030C4 |
MXPA10,MXPH10 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71930-47050C5 |
MXPA10,MXPH10 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-K0060C2 |
MXPA10,MXPH10 BLACK,TRIM2#,4# |
2 | ||
| 71940-K0040B2 |
MXPA10,MXPH10 S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-K0060C2 |
MXPA10,MXPH10 BLACK,TRIM2#,4# |
2 | ||
| 71940-K0040B2 |
MXPA10,MXPH10 S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-K0040B2 |
MXPA10,MXPH10 S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY,TRIM1# |
1 | ||
| 71960-K0050C2 |
MXPA10,MXPH10 BLACK,TRIM2#,4# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-47050B5 |
MXPA10,MXPH10 GRAY,TRIM11 |
1 | ||
| 72630-47050C2 |
MXPA10,MXPH10 BLACK,TRIM10,11,2#,4# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-47050B5 |
MXPA10,MXPH10 GRAY,TRIM11 |
1 | ||
| 72640-47050C2 |
MXPA10,MXPH10 BLACK,TRIM10,11,2#,4# |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-47010C1 |
MXPA10,MXPH10 BLACK,TRIM10,11,2#,4# |
2 | ||
| 72667-47010B5 |
MXPA10,MXPH10 GRAY,TRIM11 |
2 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-47010C1 |
MXPA10,MXPH10 BLACK,TRIM10,11,2#,4# |
2 | ||
| 72667-47010B5 |
MXPA10,MXPH10 GRAY,TRIM11 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-K0030 |
MXPA10,MXPH10 |
1 | ||
| Common parts | ||||
| 90119-10990 | ||||
| 91551-80835 | ||||
| 91672-81025 | ||||

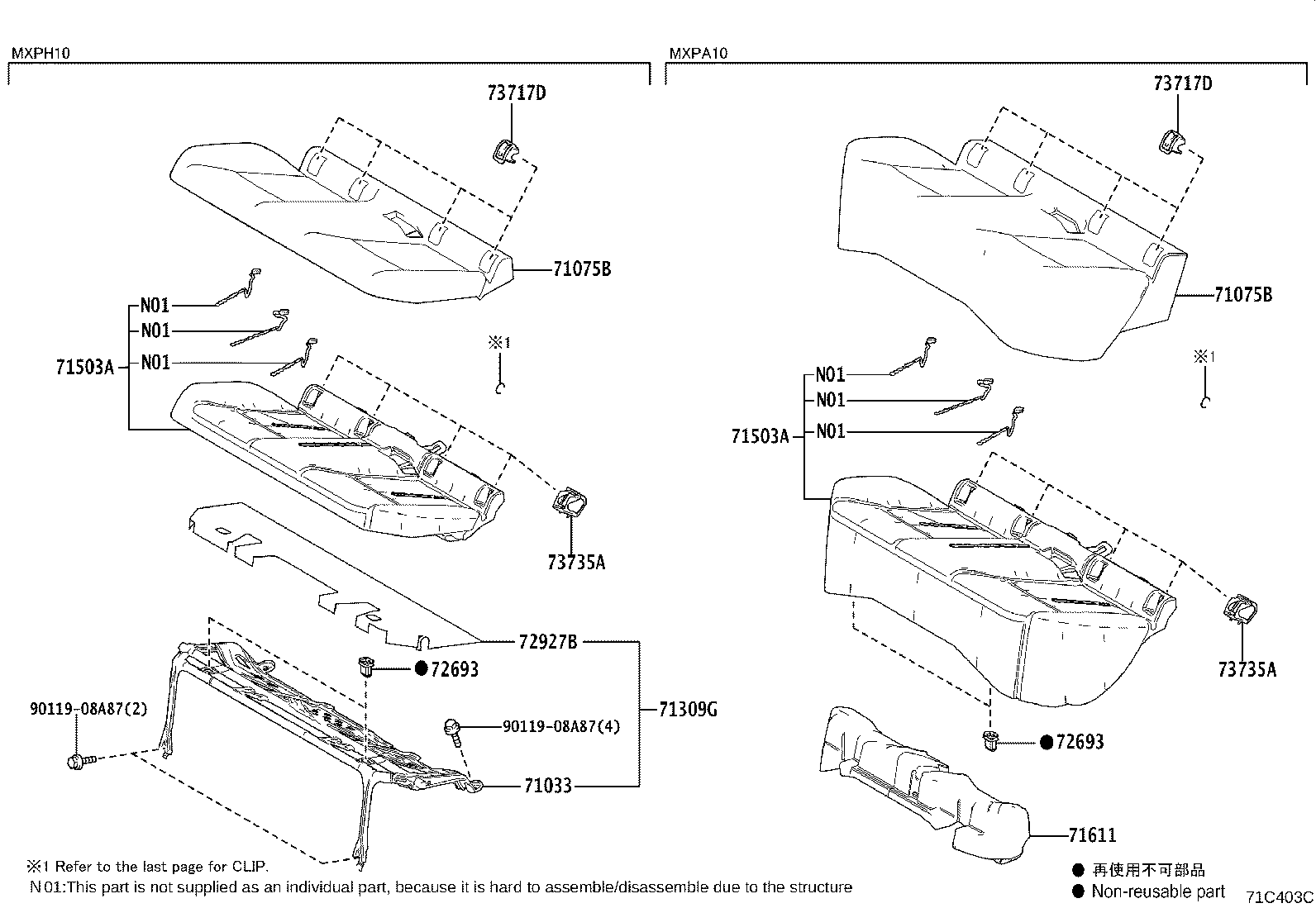

ILLUST NO. 2 OF 2(2005- )
SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-K0120C0 |
MXPA10 TAUPE,TRIM4# |
1 | ||
| 71075-K0270B0 |
MXPA10 S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/LT.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 71075-K0120C1 |
MXPA10 BLACK,TRIM2# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-K0120C0 |
MXPA10 TAUPE,TRIM4# |
1 | ||
| 71075-K0270B0 |
MXPA10 S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/LT.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 71075-K0120C1 |
MXPA10 BLACK,TRIM2# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-K0080 |
MXPA10 |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-K0080 |
MXPA10 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-K0020 |
MXPA10 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MXPA10,MXPH10 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MXPA10,MXPH10 |
2 | ||
| 73717D - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM2#,4# |
4 | ||
| 73717-K0010B0 |
MXPA10,MXPH10 S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY,TRIM1# |
4 | ||
| 73717D - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-K0010C0 |
MXPA10,MXPH10 BLACK,TRIM2#,4# |
4 | ||
| 73717-K0010B0 |
MXPA10,MXPH10 S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY,TRIM1# |
4 | ||
| 73735A - CUP, CHILD RESTRAINT SEAT GUIDE | ||||
| 73735-K0020 |
MXPA10,MXPH10 |
4 | ||
| 73735A - CUP, CHILD RESTRAINT SEAT GUIDE | ||||
| 73735-K0020 |
MXPA10,MXPH10 |
4 | ||
| Common parts | ||||
| 90119-08A87 | ||||
