MXPA10R-AHFNBQ (2020)

Toyota Yaris

Production May 2020 - Sep 9999
Engine M15AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2005- )

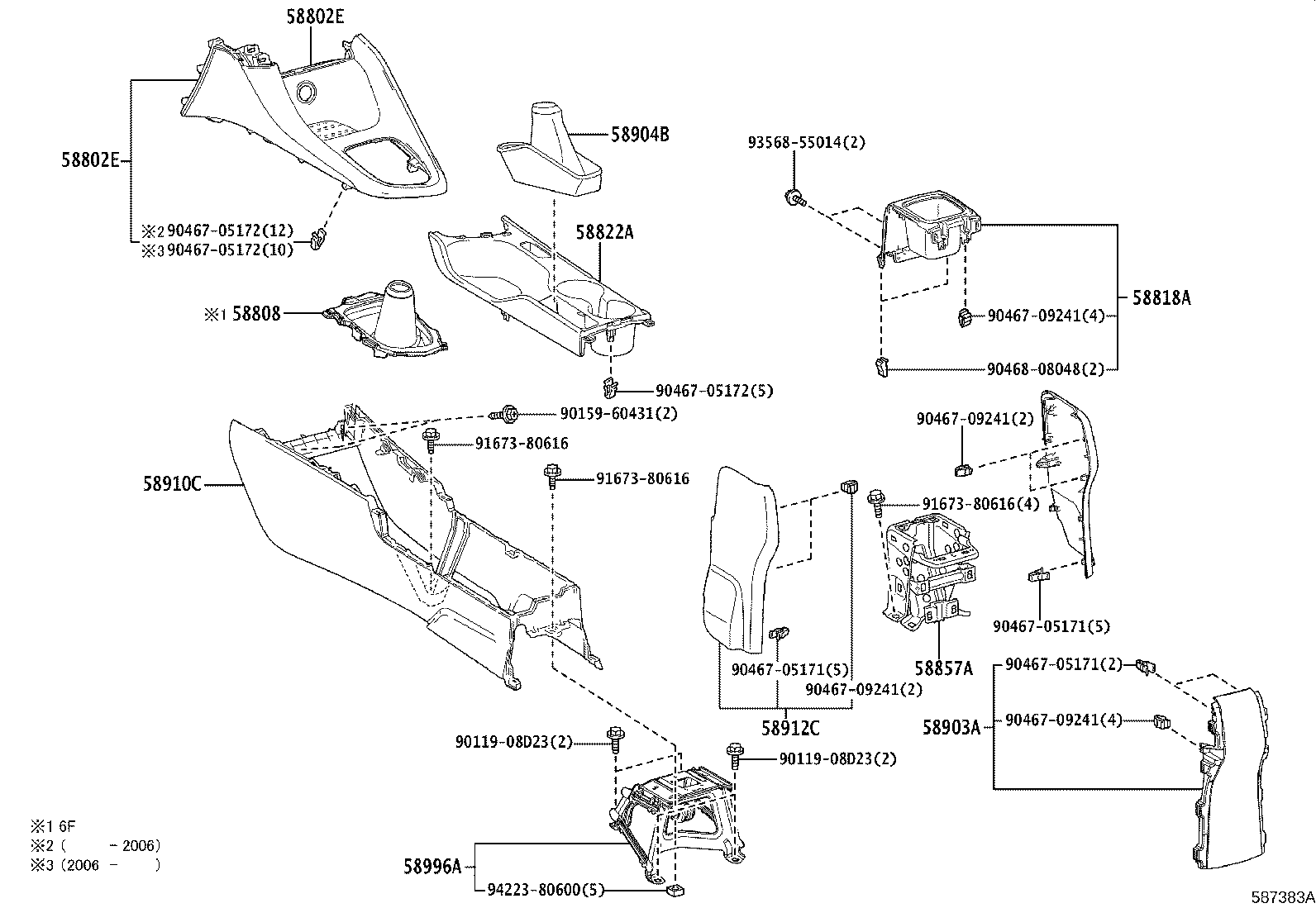

Click highlighted areas on diagram

diagram 58802E 58802E 58808 58818A 58822A 58857A 58903A 58904B 58910C 58912C 58996A 9011908D23 9011908D23 9015960431 9046705171 9046705171 9046705171 9046705172 9046705172 9046705172 9046709241 9046709241 9046709241 9046709241 9046808048 9167380616 9167380616 9167380616 9356855014 9422380600
Part # Description Qty Price
58802E - BOX SUB-ASSY, CONSOLE, FRONT
58810-K0060C3

MXPA10,MXPH10

BLACK/LT.GRAY/ROSE METALL,TRIM10

 1
58810-K0060C2

MXPA10,MXPH10

BLACK/TAUPE/BLACK,TRIM4#

 1
58810-K0060C4

MXPA10,MXPH10

BLACK/BLACK/ROSE METALLIC,TRIM20

 1
58810-K0060C0

MXPA10,MXPH10

BLACK/BLACK/BLACK,TRIM11,20

 1
58802E - BOX SUB-ASSY, CONSOLE, FRONT
58810-K0060C3

MXPA10,MXPH10

BLACK/LT.GRAY/ROSE METALL,TRIM10

 1
58810-K0060C2

MXPA10,MXPH10

BLACK/TAUPE/BLACK,TRIM4#

 1
58810-K0060C4

MXPA10,MXPH10

BLACK/BLACK/ROSE METALLIC,TRIM20

 1
58810-K0060C0

MXPA10,MXPH10

BLACK/BLACK/BLACK,TRIM11,20

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-K0010C1

MXPA10..6F

BLACK,TRIM1#,2#,4#

 1
58818A - COVER, CONSOLE BOX, FR
58818-K0030C0

MXPA10,MXPH10

BLACK,TRIM1#,2#,4#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-K0010C0

MXPA10,MXPH10

BLACK,TRIM1#,2#,4#

 1
58857A - BRACKET, CONSOLE SUPPORT, UPPER NO.1
58857-K0010

MXPA10,MXPH10

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-K0100C0

MXPA10,MXPH10

BLACK,TRIM1#,2#,4#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-K0010C1

MXPA10,MXPH10

BLACK,TRIM1#,2#,4#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-K0010C0

MXPA10,MXPH10

BLACK,TRIM1#,2#,4#

 1
58912C - PANEL, BOX SIDE, NO.2
58912-K0030C0

MXPA10,MXPH10

BLACK,TRIM1#,2#,4#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-K0110

MXPA10,MXPH10

 1
Common parts
90119-08D23
90159-60431
90467-05171
90467-05172
90467-09241
90468-08048
91673-80616
93568-55014
94223-80600
