NSP151R-CEXRKT (2016)
Toyota Yaris/Vios/Limo
ILLUST NO. 2 OF 2(1708- )HTWC ; (1708- )NSP150,151..A,F,G ;(1801- )C ; (1807- )D,E,H ;

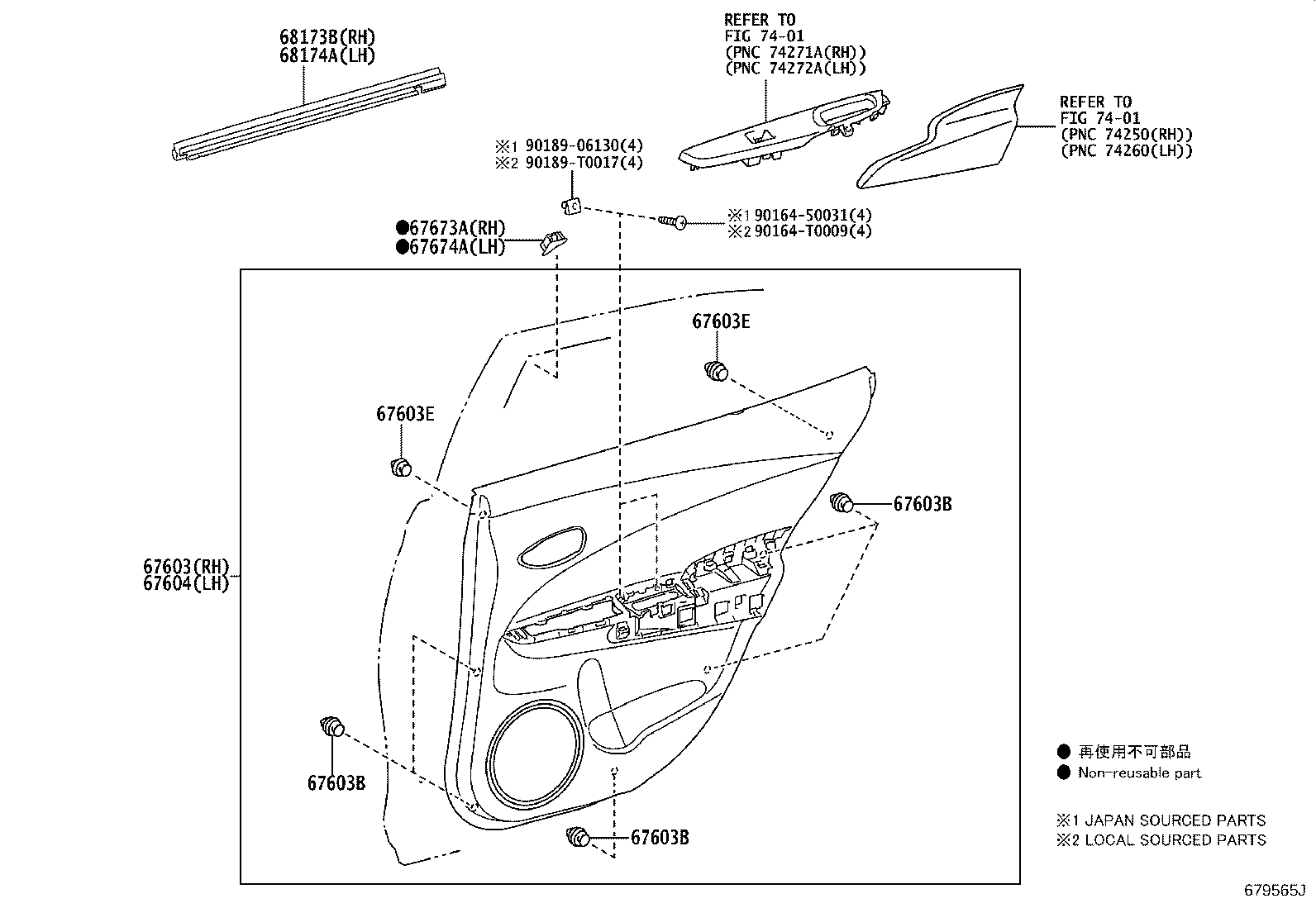

DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
10 | ||
| 90467-T0019 |
NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
10 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
10 | ||
| 90467-T0019 |
NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
10 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
10 | ||
| 90467-T0019 |
NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
10 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0021 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
4 | ||
| 90467-T0021 |
NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0021 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
4 | ||
| 90467-T0021 |
NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
4 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-0D040 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-0D040 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| Common parts | ||||
| 90164-50031 | ||||
| 90164-T0009 | ||||
| 90189-06130 | ||||
| 90189-T0017 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 1 OF 2(1708- )HTWC ; (1708- )NSP150,151..A,F,G ;(1801- )C ; (1807- )D,E,H ;

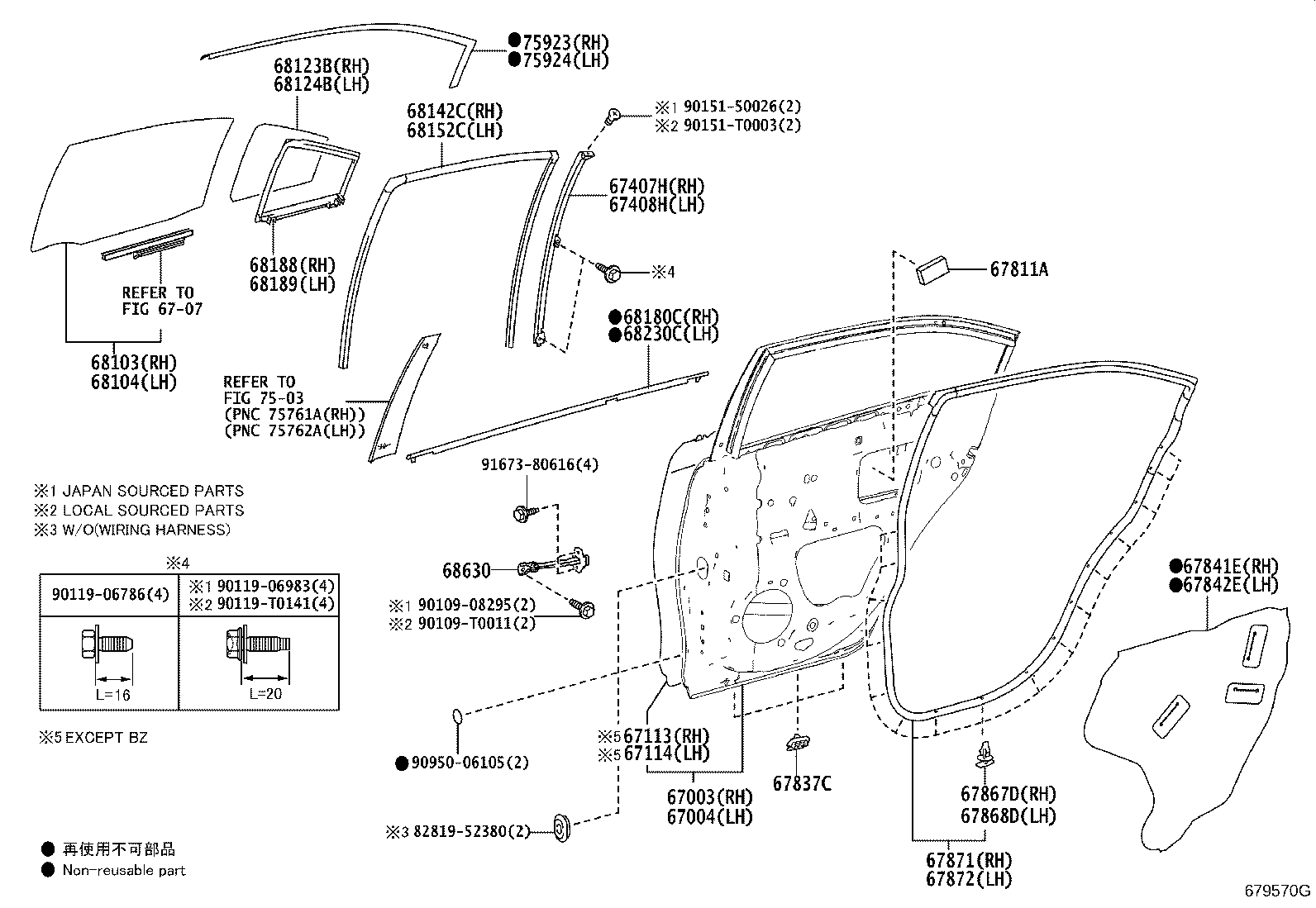

DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-K0030 |
NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-K0030 |
NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-0D270 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,H,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-0D270 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,H,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 67811A - PAD, REAR DOOR SILENCER | ||||
| 67811-0D010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
2 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-0K090 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,G,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
6 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NSP15#..C |
16 | ||
| 67867-0D180 |
NSP150,151..C |
16 | ||
| 67867-12150 |
NSP150..D,E,I;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A;NSP151,152..A,D,E,G,H,I |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NSP15#..C |
16 | ||
| 67868-0D070 |
NSP150,151..C |
16 | ||
| 67867-12150 |
NSP150..D,E,I;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A;NSP151,152..A,D,E,G,H,I |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0D230 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0D230 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68130-0D441 |
NSP150..5F..GCC..R..A;NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68140-0D441 |
NSP150..5F..GCC..R..A;NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0D301 |
NSP150..5F..GCC..R..A;NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0D301 |
NSP150..5F..GCC..R..A;NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0D280 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0D240 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-0D220 |
NSP150..E,I;NSP150..CVT..A;NSP151,152..A,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-0D220 |
NSP150..E,I;NSP150..CVT..A;NSP151,152..A,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-0D170 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,H,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-0D270 |
NSP150..I;NSP151,152..A,E,I;NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-0D270 |
NSP150..I;NSP151,152..A,E,I;NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A |
1 | ||
| Common parts | ||||
| 82819-52380 | ||||
| 90109-08295 | ||||
| 90109-T0011 | ||||
| 90119-06786 | ||||
| 90119-06983 | ||||
| 90119-T0141 | ||||
| 90151-50026 | ||||
| 90151-T0003 | ||||
| 90950-06105 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
| 7503 | ||||
