Toyota Yaris/vios/limo NSP151 SEAT BELT & CHILD RESTRAINT SEAT

Manufacturers Home
Toyota
GR
YARIS/VIOS/LIMO
NSP151R-CEXGKD (2018)
7104 - SEAT BELT & CHILD RESTRAINT SEAT

NSP151R-CEXGKD (2018)

Toyota Yaris/Vios/Limo

Production Jan 2018 - Sep 9999

Engine 2NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1304- )

Click highlighted areas on diagram

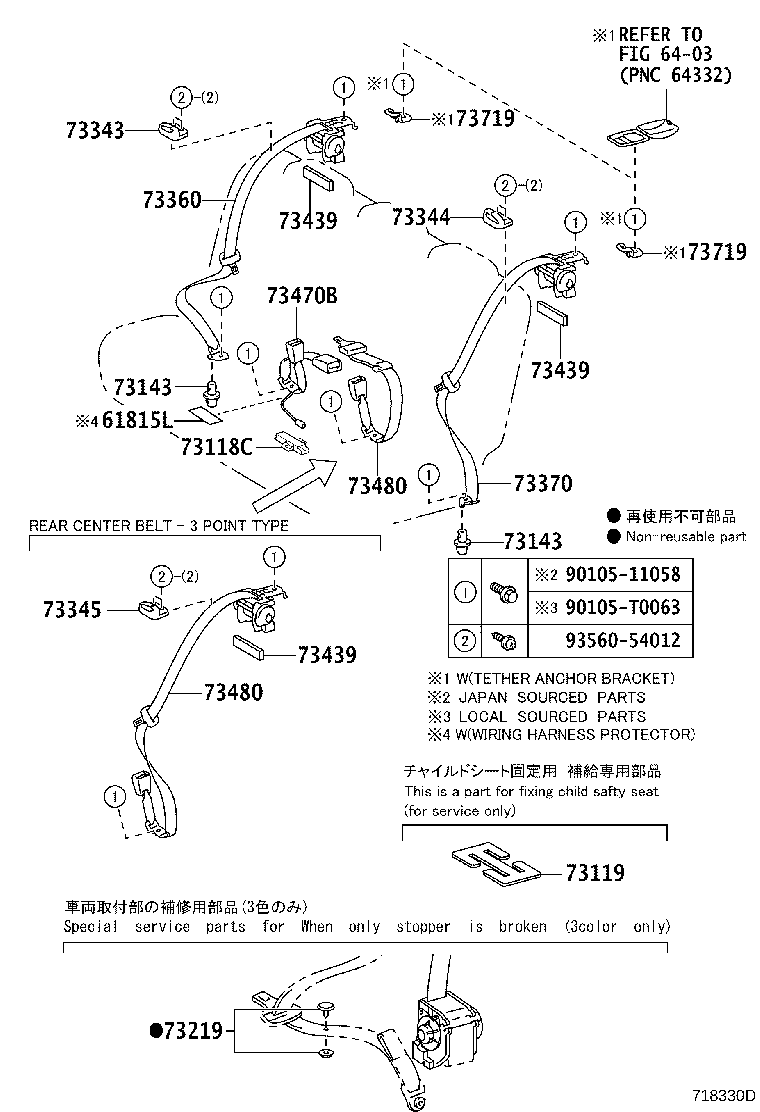

REAR SEAT BELT

Part #	Description	Period	Qty
73143 - SEAL, SEAT BELT HOLE
73143-0D010	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	2
73143-0D020	NSP151..G	04/2018 - 08/2019	2
73143-0D010	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	2
73143 - SEAL, SEAT BELT HOLE
73143-0D010	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	2
73143-0D020	NSP151..G	04/2018 - 08/2019	2
73143-0D010	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	2
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-0D010C0	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C BLACK,TRIM2#	01/2018 - 09/2020	1
73343-0D030C1	NSP151..H BLACK,TRIM2#	07/2018 - 10/2019	1
73343-0D010C1	NSP150..5F..D..C;NSP151..CVT..D..C BLACK,TRIM2#	09/2020 - 08/2021	1
73343-02040A2	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73343-0D010A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73343-0D020A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73343-0D010C1	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM2#	09/2020 - 12/2999	1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-0D020A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73344-0D010C0	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C BLACK,TRIM2#	01/2018 - 09/2020	1
73344-0D010C1	NSP150..5F..D..C;NSP151..CVT..D..C BLACK,TRIM2#	09/2020 - 08/2021	1
73344-0D010C1	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM2#	09/2020 - 12/2999	1
73344-0D030C1	NSP151..H BLACK,TRIM2#	04/2019 - 10/2019	1
73344-0D030C1	NSP151..H BLACK,TRIM2#	07/2018 - 04/2019	2
73344-0D010A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73344-02010A2	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER
73344-0D010A0	NSP150..C;NSP151..R..C;NSP151..GCC..G..C IVORY,TRIM0#	01/2018 - 09/2020	1
73344-0D010C0	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C BLACK,TRIM2#	01/2018 - 09/2020	1
73344-0D030C1	NSP151..H BLACK,TRIM2#	07/2018 - 10/2019	1
73344-0D010A0	NSP151..IDN..G IVORY,TRIM0#	01/2018 - 12/2999	1
73344-02010A2	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-0D430C0	NSP151..H BLACK,TRIM2#	07/2018 - 10/2019	1
73360-0D420A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73360-0D440A0	NSP151..R..F IVORY,TRIM0#	03/2018 - 01/2021	1
73360-0D520A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73360-0D530A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73360-0D440C0	NSP151..F BLACK,TRIM2#	03/2018 - 01/2021	1
73360-0D520C0	NSP150..5F..D..C;NSP151..CVT..D..C BLACK,TRIM2#	01/2018 - 08/2021	1
73360-0D520C0	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM2#	01/2018 - 12/2999	1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-0D380C0	NSP151..H BLACK,TRIM2#	07/2018 - 10/2019	1
73370-0D370A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73370-0D390C0	NSP151..F BLACK,TRIM2#	03/2018 - 01/2021	1
73370-0D390A0	NSP151..R..F IVORY,TRIM0#	03/2018 - 01/2021	1
73370-0D460A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73370-0D460C0	NSP150..5F..D..C;NSP151..CVT..D..C BLACK,TRIM2#	01/2018 - 08/2021	1
73370-0D470A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73370-0D460C0	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM2#	01/2018 - 12/2999	1
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-0D080	NSP151..H RH & LH	07/2018 - 10/2019	2
73439-0D070	NSP151..G CENTER	04/2018 - 08/2019	1
73439-0D080	NSP151..H CENTER	07/2018 - 10/2019	1
73439-0D070	NSP151..G RH & LH	04/2018 - 08/2019	2
73439-0D030	NSP150..5F..D..C;NSP151..CVT..D..C RH & LH	01/2018 - 08/2021	2
73439-0D030	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C CENTER	01/2018 - 12/2999	1
73439-0D030	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C RH & LH	01/2018 - 12/2999	2
73439-0D030	NSP150..5F..D..C;NSP151..CVT..D..C CENTER	01/2018 - 08/2021	1
73439-0D050	NSP151..F RH & LH	03/2018 - 01/2021	2
73439-0D050	NSP151..F CENTER	03/2018 - 01/2021	1
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-0D080	NSP151..H RH & LH	07/2018 - 10/2019	2
73439-0D070	NSP151..G CENTER	04/2018 - 08/2019	1
73439-0D080	NSP151..H CENTER	07/2018 - 10/2019	1
73439-0D070	NSP151..G RH & LH	04/2018 - 08/2019	2
73439-0D030	NSP150..5F..D..C;NSP151..CVT..D..C RH & LH	01/2018 - 08/2021	2
73439-0D030	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C CENTER	01/2018 - 12/2999	1
73439-0D030	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C RH & LH	01/2018 - 12/2999	2
73439-0D030	NSP150..5F..D..C;NSP151..CVT..D..C CENTER	01/2018 - 08/2021	1
73439-0D050	NSP151..F RH & LH	03/2018 - 01/2021	2
73439-0D050	NSP151..F CENTER	03/2018 - 01/2021	1
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-0D080	NSP151..H RH & LH	07/2018 - 10/2019	2
73439-0D070	NSP151..G CENTER	04/2018 - 08/2019	1
73439-0D080	NSP151..H CENTER	07/2018 - 10/2019	1
73439-0D070	NSP151..G RH & LH	04/2018 - 08/2019	2
73439-0D030	NSP150..5F..D..C;NSP151..CVT..D..C RH & LH	01/2018 - 08/2021	2
73439-0D030	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C CENTER	01/2018 - 12/2999	1
73439-0D030	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C RH & LH	01/2018 - 12/2999	2
73439-0D030	NSP150..5F..D..C;NSP151..CVT..D..C CENTER	01/2018 - 08/2021	1
73439-0D050	NSP151..F RH & LH	03/2018 - 01/2021	2
73439-0D050	NSP151..F CENTER	03/2018 - 01/2021	1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-0D400A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73470-0D390C0	NSP151..F BLACK,TRIM2#	03/2018 - 01/2021	1
73470-0D390A0	NSP151..R..F IVORY,TRIM0#	03/2018 - 01/2021	1
73470-0D250C0	NSP151..H BLACK,TRIM2#	07/2018 - 10/2019	1
73470-0D260C0	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM2#	01/2018 - 12/2999	1
73470-0D260C0	NSP150..5F..D..C;NSP151..CVT..D..C BLACK,TRIM2#	01/2018 - 08/2021	1
73470-0D260A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73470-0D470A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-0D400A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73480-0D390A0	NSP151..R..F IVORY,TRIM0#	03/2018 - 01/2021	1
73480-0D520C0	NSP150..5F..D..C;NSP151..CVT..D..C BLACK,TRIM2#	01/2018 - 08/2021	1
73480-0D350C0	NSP151..H BLACK,TRIM2#	07/2018 - 10/2019	1
73480-0D390C0	NSP151..F BLACK,TRIM2#	03/2018 - 01/2021	1
73480-0D550A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73480-0D520C0	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM2#	01/2018 - 12/2999	1
73480-0D520A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-0D400A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73480-0D390A0	NSP151..R..F IVORY,TRIM0#	03/2018 - 01/2021	1
73480-0D520C0	NSP150..5F..D..C;NSP151..CVT..D..C BLACK,TRIM2#	01/2018 - 08/2021	1
73480-0D350C0	NSP151..H BLACK,TRIM2#	07/2018 - 10/2019	1
73480-0D390C0	NSP151..F BLACK,TRIM2#	03/2018 - 01/2021	1
73480-0D550A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73480-0D520C0	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM2#	01/2018 - 12/2999	1
73480-0D520A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-0D060	NSP151..H	07/2018 - 10/2019	2
73719-0D080	NSP151..G	04/2018 - 08/2019	2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-0D060	NSP151..H	07/2018 - 10/2019	2
73719-0D080	NSP151..G	04/2018 - 08/2019	2
Common parts
90105-11058
90105-T0063
93560-54012
Linked diagrams
6403

(1304- )

Click highlighted areas on diagram

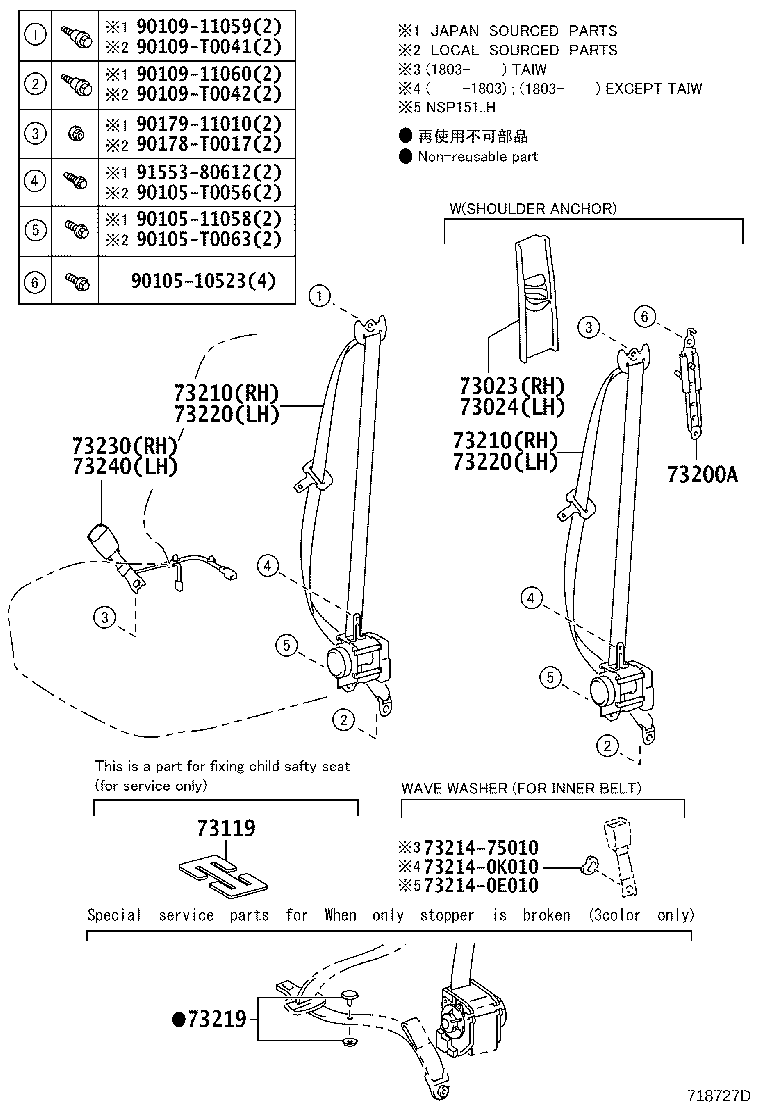

FRONT SEAT BELT

Part #	Description	Period	Qty
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-02050B1	NSP151..H GRAY,TRIM2#	07/2018 - 10/2019	1
73023-06090A3	NSP151..R..F IVORY,TRIM0#	03/2018 - 01/2021	1
73023-06090B0	NSP151..F GRAY,TRIM2#	03/2018 - 01/2021	1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-06120A3	NSP151..R..F IVORY,TRIM0#	03/2018 - 01/2021	1
73024-02050B1	NSP151..H GRAY,TRIM2#	07/2018 - 10/2019	1
73024-06120B0	NSP151..F GRAY,TRIM2#	03/2018 - 01/2021	1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-02130	NSP151..F	03/2018 - 01/2021	2
73200-12070	NSP151..H	07/2018 - 10/2019	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0D560A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73210-0D570C0	NSP151..H BLACK/GRAY,TRIM2#	07/2018 - 10/2019	1
73210-0D550A0	NSP151..R..F IVORY/IVORY,TRIM0#	03/2018 - 01/2021	1
73210-0D620A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73210-0D540C0	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK/GRAY,TRIM2#	01/2018 - 12/2999	1
73210-0D550C0	NSP151..F BLACK/GRAY,TRIM2#	03/2018 - 01/2021	1
73210-0D540A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73210-0D540C0	NSP150..5F..D..C;NSP151..CVT..D..C BLACK/GRAY,TRIM2#	01/2018 - 08/2021	1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0D560A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73210-0D570C0	NSP151..H BLACK/GRAY,TRIM2#	07/2018 - 10/2019	1
73210-0D550A0	NSP151..R..F IVORY/IVORY,TRIM0#	03/2018 - 01/2021	1
73210-0D620A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73210-0D540C0	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK/GRAY,TRIM2#	01/2018 - 12/2999	1
73210-0D550C0	NSP151..F BLACK/GRAY,TRIM2#	03/2018 - 01/2021	1
73210-0D540A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73210-0D540C0	NSP150..5F..D..C;NSP151..CVT..D..C BLACK/GRAY,TRIM2#	01/2018 - 08/2021	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0D550A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73220-0D560C0	NSP151..H BLACK/GRAY,TRIM2#	07/2018 - 10/2019	1
73220-0D540A0	NSP151..R..F IVORY/IVORY,TRIM0#	03/2018 - 01/2021	1
73220-0D530C0	NSP150..5F..D..C;NSP151..CVT..D..C BLACK/GRAY,TRIM2#	01/2018 - 08/2021	1
73220-0D540C0	NSP151..F BLACK/GRAY,TRIM2#	03/2018 - 01/2021	1
73220-0D530C0	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK/GRAY,TRIM2#	01/2018 - 12/2999	1
73220-0D530A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73220-0D610A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0D550A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73220-0D560C0	NSP151..H BLACK/GRAY,TRIM2#	07/2018 - 10/2019	1
73220-0D540A0	NSP151..R..F IVORY/IVORY,TRIM0#	03/2018 - 01/2021	1
73220-0D530C0	NSP150..5F..D..C;NSP151..CVT..D..C BLACK/GRAY,TRIM2#	01/2018 - 08/2021	1
73220-0D540C0	NSP151..F BLACK/GRAY,TRIM2#	03/2018 - 01/2021	1
73220-0D530C0	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK/GRAY,TRIM2#	01/2018 - 12/2999	1
73220-0D530A0	NSP150..CVT..D..C;NSP150,151..(G,R)..C IVORY,TRIM0#	01/2018 - 12/2999	1
73220-0D610A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0D700A0	NSP151..(D,G,R)..G IVORY,TRIM0#	04/2018 - 08/2019	1
73230-0D720A0	NSP151..V..G IVORY,TRIM0#	04/2018 - 08/2019	1
73230-0D750C0	NSP151..H BLACK,TRIM2#	07/2018 - 10/2019	1
73230-0D760A0	NSP151..E IVORY,TRIM0#	08/2018 - 12/2019	1
73230-0D760C0	NSP151..D;NSP150..D,E BLACK,TRIM2#	07/2018 - 12/2019	1
73230-0D490A0	NSP151..R..F IVORY,TRIM0#	03/2018 - 01/2021	1
73230-0D800C0	NSP151..CVT..D..C BLACK,TRIM2#	01/2018 - 08/2021	1
73230-0D490C0	NSP151..F BLACK,TRIM2#	03/2018 - 01/2021	1
73230-0D800C0	NSP151..IDN..R;NSP151..5F..D..C BLACK,TRIM2#	01/2018 - 12/2999	1
73230-0D800A0	NSP151..IDN..(G,R) IVORY,TRIM0#	01/2018 - 12/2999	1
73230-0D250A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0D730C0	NSP151..H BLACK,TRIM2#	07/2018 - 10/2019	1
73230-0D710A0	NSP151..G IVORY,TRIM0#	04/2018 - 08/2019	1
73230-0D480A0	NSP151..R..F IVORY,TRIM0#	03/2018 - 01/2021	1
73230-0D480C0	NSP151..F BLACK,TRIM2#	03/2018 - 01/2021	1
73230-0D690C0	NSP151..CVT..D..C BLACK,TRIM2#	01/2018 - 08/2021	1
73230-0D690A0	NSP151..IDN..(G,R) IVORY,TRIM0#	01/2018 - 12/2999	1
73230-0D690C0	NSP151..IDN..R;NSP151..5F..D..C BLACK,TRIM2#	01/2018 - 12/2999	1
73230-0D810A0	NSP150,151..I IVORY,TRIM0#	03/2020 - 12/2999	1
Common parts
73214-0E010
73214-0K010
73214-75010
90105-10523
90105-11058
90105-T0056
90105-T0063
90109-11059
90109-11060
90109-T0041
90109-T0042
90178-T0017
90179-11010
91553-80612

NSP151R-CEXGKD (2018)

(1304- )

(1304- )

Part Price Details
