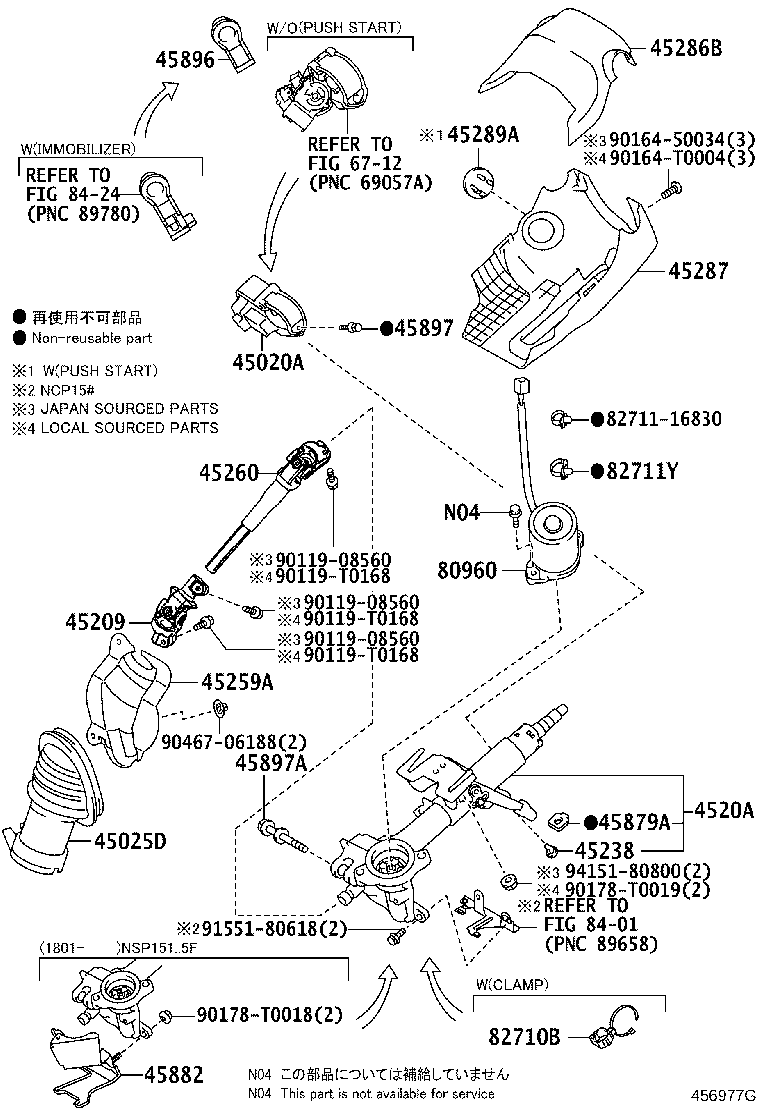

NSP151R-CEXGKD (2018)
Toyota Yaris/Vios/Limo
(1304- )RHD..B,C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-0K201 |
NSP151..(G,R,V)..G |
1 | ||
| 45020-0K210 |
NSP151..IDN..G |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-0D220 |
NSP151..G |
1 | ||
| 45025-0D230 |
NSP151..H |
1 | ||
| 45025-0D270 |
NSP150,151..I |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-0D120 |
NSP151..G |
1 | ||
| 45209-0D130 |
NSP151..H |
1 | ||
| 45209-0D100 |
NSP151..F |
1 | ||
| 45209-0D050 |
NSP150..5F..D..C;NSP151..CVT..D..C |
1 | ||
| 45209-0D050 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-0D480 |
NSP151..D..G |
1 | ||
| 4520A-0D500 |
NSP151..AGT..G;NSP151..(D,R)..H |
1 | ||
| 4520A-0D410 |
NSP151..IDN..(D,R) |
1 | ||
| 4520A-0D490 |
NSP151..(G,R,V)..G |
1 | ||
| 4520A-0D420 |
NSP151..IDN..G |
1 | ||
| 4520A-0D470 |
NSP151..V..F |
1 | ||
| 4520A-0D411 |
NSP151..CVT..D..C |
1 | ||
| 4520A-0D381 |
NSP151..RHD..(A,I);NSP150..RHD..CVT..G..A |
1 | ||
| 4520A-0D460 |
NSP151..(D,R)..F |
1 | ||
| 4520A-0D411 |
NSP151..IDN..R;NSP151..5F..D..C |
1 | ||
| 4520A-0D421 |
NSP151..IDN..G |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-52010 |
NCP15#,NSP150,151..B,C |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-0D240 |
NSP151..H |
1 | ||
| 45259-0D231 |
NSP151..G |
1 | ||
| 45259-0D270 |
NSP151..F |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-0D270 |
NSP151..H |
1 | ||
| 45260-0D150 |
NSP151..IDN |
1 | ||
| 45260-0D151 |
NSP151..5F..D..C;NSP151..IDN..(G,R) |
1 | ||
| 45260-0D200 |
NSP151..G |
1 | ||
| 45260-0D151 |
NSP151..CVT..D..C |
1 | ||
| 45260-0D260 |
NSP151..F |
1 | ||
| 45260-0D211 |
NSP150,152..PKN,TH;NSP151..RHD..(A,I);NSP150..RHD..CVT..A |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-0D300C0 |
NSP151..G BLACK,TRIM0# |
1 | ||
| 45286-0D310C0 |
NSP151..H BLACK,TRIM2# |
1 | ||
| 45286-0D330C0 |
NSP151..(D,V)..F BLACK,TRIM2# |
1 | ||
| 45286-0D311C0 |
NSP151..H BLACK,TRIM2# |
1 | ||
| 45286-0D320C0 |
NSP151..E BLACK,TRIM0# |
1 | ||
| 45286-0D330C0 |
NSP151..R..F BLACK,TRIM0#,2# |
1 | ||
| 45286-0D340C0 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2# |
1 | ||
| 45286-0D340C0 |
NSP151..IDN..G BLACK,TRIM0# |
1 | ||
| 45286-0D340C0 |
NSP151..CVT..D..C BLACK,TRIM2# |
1 | ||
| 45286-0D240C0 |
NSP150,151..I BLACK,TRIM0# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-0D270C0 |
NSP151..G BLACK,TRIM0# |
1 | ||
| 45287-0D300C0 |
NSP151..(D,V)..F BLACK,TRIM2# |
1 | ||
| 45287-0D300C0 |
NSP151..R..F BLACK,TRIM0#,2# |
1 | ||
| 45287-0D310C0 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2# |
1 | ||
| 45287-0D290C0 |
NSP151..E BLACK,TRIM0# |
1 | ||
| 45287-0D281C0 |
NSP151..H BLACK,TRIM2# |
1 | ||
| 45287-0D280C0 |
NSP151..H BLACK,TRIM2# |
1 | ||
| 45287-0D200C0 |
NSP150,151..I BLACK,TRIM0# |
1 | ||
| 45287-0D310C0 |
NSP151..IDN..G BLACK,TRIM0# |
1 | ||
| 45287-0D310C0 |
NSP151..CVT..D..C BLACK,TRIM2# |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-0D110C0 |
NSP151..(G,R,V)..G BLACK,TRIM0# |
1 | ||
| 45289-0D080C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 45289-0D130C0 |
NSP151..IDN..G BLACK,TRIM0# |
1 | ||
| 45289-0D140C0 |
NSP151..I BLACK,TRIM0# |
1 | ||
| 45289-0D020C0 |
NSP151..G..E BLACK,TRIM0# |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-0D010 |
NSP151..G |
2 | ||
| 45879-0D060 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C |
2 | ||
| 45879-0D070 |
NSP151..F |
2 | ||
| 45879-52010 |
NSP151..H |
2 | ||
| 45879-0D060 |
NSP150..5F..D..C;NSP151..CVT..D..C |
2 | ||
| 45896 - PLATE, IGNITION SWITCH ATTACHMENT | ||||
| 81871-0D020 |
NSP151..CVT..D..C |
1 | ||
| 81871-0D020 |
NSP151..5F..D..C;NSP150,151..(D,R)..(D,E) |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-0D300 |
NSP151..H |
1 | ||
| 80960-0D370 |
NSP151..F |
1 | ||
| 80960-0D310 |
NSP151..G |
1 | ||
| 80960-0D340 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C |
1 | ||
| 80960-0D340 |
NSP150..5F..D..C;NSP151..CVT..D..C |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 90119-08560 | ||||
| 90119-T0168 | ||||
| 90164-50034 | ||||
| 90164-T0004 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90467-06188 | ||||
| 91551-80618 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 6712 | ||||
| 8401 | ||||
| 8424 | ||||
(1807- )H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-0K201 |
NSP151..(G,R,V)..G |
1 | ||
| 45020-0K210 |
NSP151..IDN..G |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-0D220 |
NSP151..G |
1 | ||
| 45025-0D230 |
NSP151..H |
1 | ||
| 45025-0D270 |
NSP150,151..I |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-0D120 |
NSP151..G |
1 | ||
| 45209-0D130 |
NSP151..H |
1 | ||
| 45209-0D100 |
NSP151..F |
1 | ||
| 45209-0D050 |
NSP150..5F..D..C;NSP151..CVT..D..C |
1 | ||
| 45209-0D050 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-0D480 |
NSP151..D..G |
1 | ||
| 4520A-0D500 |
NSP151..AGT..G;NSP151..(D,R)..H |
1 | ||
| 4520A-0D410 |
NSP151..IDN..(D,R) |
1 | ||
| 4520A-0D490 |
NSP151..(G,R,V)..G |
1 | ||
| 4520A-0D420 |
NSP151..IDN..G |
1 | ||
| 4520A-0D470 |
NSP151..V..F |
1 | ||
| 4520A-0D411 |
NSP151..CVT..D..C |
1 | ||
| 4520A-0D381 |
NSP151..RHD..(A,I);NSP150..RHD..CVT..G..A |
1 | ||
| 4520A-0D460 |
NSP151..(D,R)..F |
1 | ||
| 4520A-0D411 |
NSP151..IDN..R;NSP151..5F..D..C |
1 | ||
| 4520A-0D421 |
NSP151..IDN..G |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-52010 |
NCP15#,NSP150,151..B,C |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-0D240 |
NSP151..H |
1 | ||
| 45259-0D231 |
NSP151..G |
1 | ||
| 45259-0D270 |
NSP151..F |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-0D270 |
NSP151..H |
1 | ||
| 45260-0D150 |
NSP151..IDN |
1 | ||
| 45260-0D151 |
NSP151..5F..D..C;NSP151..IDN..(G,R) |
1 | ||
| 45260-0D200 |
NSP151..G |
1 | ||
| 45260-0D151 |
NSP151..CVT..D..C |
1 | ||
| 45260-0D260 |
NSP151..F |
1 | ||
| 45260-0D211 |
NSP150,152..PKN,TH;NSP151..RHD..(A,I);NSP150..RHD..CVT..A |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-0D270 |
NSP151..CVT..AGT;NSP151..CVT..D..G;NSP151..CVT..(D,R)..H |
1 | ||
| 45280-0D190 |
NSP151..(D,R)..F |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-0D300C0 |
NSP151..G BLACK,TRIM0# |
1 | ||
| 45286-0D310C0 |
NSP151..H BLACK,TRIM2# |
1 | ||
| 45286-0D330C0 |
NSP151..(D,V)..F BLACK,TRIM2# |
1 | ||
| 45286-0D311C0 |
NSP151..H BLACK,TRIM2# |
1 | ||
| 45286-0D320C0 |
NSP151..E BLACK,TRIM0# |
1 | ||
| 45286-0D330C0 |
NSP151..R..F BLACK,TRIM0#,2# |
1 | ||
| 45286-0D340C0 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2# |
1 | ||
| 45286-0D340C0 |
NSP151..IDN..G BLACK,TRIM0# |
1 | ||
| 45286-0D340C0 |
NSP151..CVT..D..C BLACK,TRIM2# |
1 | ||
| 45286-0D240C0 |
NSP150,151..I BLACK,TRIM0# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-0D270C0 |
NSP151..G BLACK,TRIM0# |
1 | ||
| 45287-0D300C0 |
NSP151..(D,V)..F BLACK,TRIM2# |
1 | ||
| 45287-0D300C0 |
NSP151..R..F BLACK,TRIM0#,2# |
1 | ||
| 45287-0D310C0 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2# |
1 | ||
| 45287-0D290C0 |
NSP151..E BLACK,TRIM0# |
1 | ||
| 45287-0D281C0 |
NSP151..H BLACK,TRIM2# |
1 | ||
| 45287-0D280C0 |
NSP151..H BLACK,TRIM2# |
1 | ||
| 45287-0D200C0 |
NSP150,151..I BLACK,TRIM0# |
1 | ||
| 45287-0D310C0 |
NSP151..IDN..G BLACK,TRIM0# |
1 | ||
| 45287-0D310C0 |
NSP151..CVT..D..C BLACK,TRIM2# |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-0D110C0 |
NSP151..(G,R,V)..G BLACK,TRIM0# |
1 | ||
| 45289-0D080C0 |
NSP151..V..F BLACK,TRIM2# |
1 | ||
| 45289-0D130C0 |
NSP151..IDN..G BLACK,TRIM0# |
1 | ||
| 45289-0D140C0 |
NSP151..I BLACK,TRIM0# |
1 | ||
| 45289-0D020C0 |
NSP151..G..E BLACK,TRIM0# |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-0D010 |
NSP151..G |
2 | ||
| 45879-0D060 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C |
2 | ||
| 45879-0D070 |
NSP151..F |
2 | ||
| 45879-52010 |
NSP151..H |
2 | ||
| 45879-0D060 |
NSP150..5F..D..C;NSP151..CVT..D..C |
2 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-0D300 |
NSP151..H |
1 | ||
| 80960-0D370 |
NSP151..F |
1 | ||
| 80960-0D310 |
NSP151..G |
1 | ||
| 80960-0D340 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C |
1 | ||
| 80960-0D340 |
NSP150..5F..D..C;NSP151..CVT..D..C |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90467-06188 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
